Technical Specifi cations - Dimensions
Stofe Modena Gas BF, certifi ed in compliance with EG
Guideline 90/396/EWG and DIN EN 613 (2000)
Product ID number: CE-0063BR5705
Construction Type: C ; C
11 31
Combustion Values:
Nominal Thermal Output (Natural Gas, Hs)
Nominal Heat Load (Natural Gas, Hs)
Nominal Heat Load (Natural Gas, Hi)
Nominal Thermal Output (Propane, Hs)
Nominal Heat Load (Propane, Hs)
Nominal Heat Load (Propane, Hi)
Dimensions:
Height
Stofe 124,5 cm
Weight 156 kg
Connection Dimensions:
Approved fl ue gas system:
Flue Pipe Connection Height:
Gas Connection Height:
Distance from back wall of stove to fl ue pipe centre:
Distance from back wall of stove to the wall (Fixation to wall) :
Gas connection:
7,8 kW
11,7 kW
10,5 kW
6,2 kW
9,3 kW
8,6 kW
Width Depht
46 cm 48,5 cm
ONTOP Metaloterm Serie US Ø 100/150
123,5 cm
31 cm
26 cm
17,5 - 28 cm
Ø 8, Ø 12 mm compression
46
Front view
7,5
Top view
46
48,5
Side view

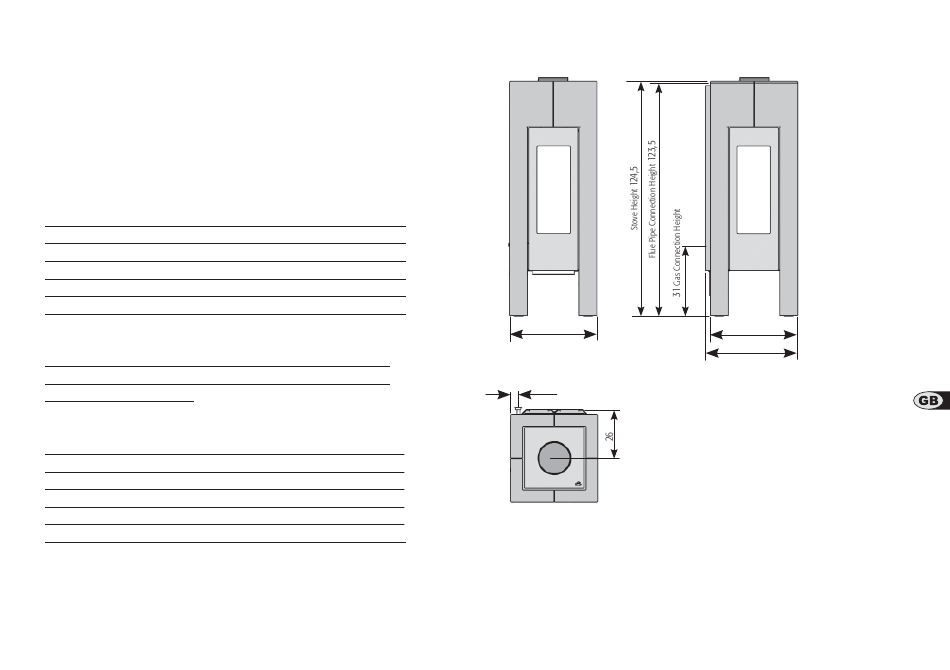

Fig. 1:Dimensions in cm
61
