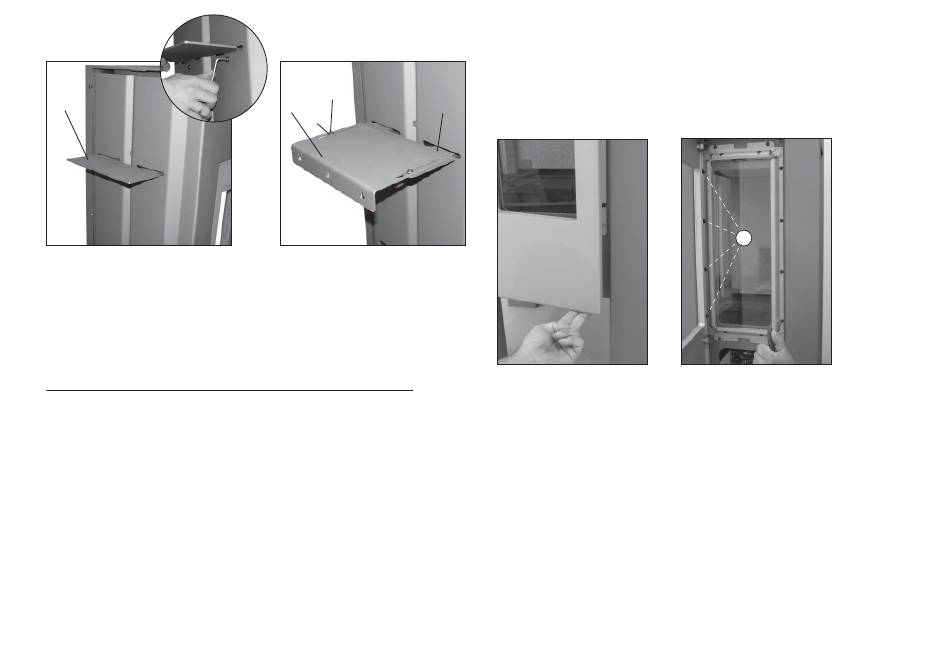

Attach mounting bracket (a) to spacer plate (b) using disk (e) and screw (d) (Fig. 8).
Move stove into proper position. Fasten mounting bracket (a) to wall using dowel (g) and
screw (f) (Fig. 8).
Distance from back wall of stove to the wall (Fixation to wall) :
2.8

Pressure Testing

The gas pressure to the burner must be measured; this should be measured with all gas
appliances after the gas meter operating on full, including this stove.
2.9

Arranging The Ceramic Fire

Only the ceramics supplied with this appliance are to be used. The ceramics must be laid only
as shown on the following pages. Replacement parts including mat are available from your
dealer, but should only be installed by a qualifi ed installation engineer.
66
c
a b
d
Fig. 8
17,5 - 28 cm

2.10 Opening the Fire Box Door

Pull at the bottom edge of the front panel to disengage the magnetic lock (Fig.9).
To dismount the fi re box window, loosen the screws A (Fig.10) and remove the remaining
screws.
Fig. 9
A
Fig. 10
