HARDWARE INSTALLATION
1. Turn off the power to your computer and any other connected peripherals.
2. Remove the mounting screws located at the rear and/or sides panels of your Com-
puter and gently slide the cover off.
3. Locate an available expansion slot and remove its covers from the rear panel of your
computer. Make sure it is the right expansion slot for the card (see card description)
4. Align the card with the expansion slot, and then gently but firmly, insert the card.
Make sure the card is seated and oriented correctly. Never insert the card by force!
5. Then connect the card with a screw to the rear panel of the computer case.
6. Gently replace your computer's cover and the mounting screws.
DRIVER INSTALLATION
Windows 2000/ XP/ Vista/ 7/ 8
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-ROM
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
system into the box for the Path/Source and click at >next/continue<. Now Windows
searches for the drivers in the specified directory. Follow the hardware assistant and
finish the installation. If Windows recognizes other new devices repeat the above de-
scribed steps. Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
should find a new „PCI Port" as sample (LPT3). If you see this or similar entries the
card is installed correctly.
CHANGE PORT NUMBER
If you like to change the port number for example LPT3 to LPT1, open the >Device Man-
ager< click at >LPT3<, >Settings< and then >Advance<. There you can change between
LPT1 to LPT3.
Windows Server 200x
After starting Windows it recognizes a new "PCI Controller" and opens the hardware
assistant. Please choose manual installation and put the driver CD into your CD-ROM
drive. Now enter the Path "D:\IO\OXFORD2\" and then the directory of your operating
system for Server 2000 "2000", for Server 2003 "XP32" or "XP64", for Server 2008
„Vista32" or „Vista64" and for Server 2008 R2 „Win7_8_32bit" or „Win7_8_64bit" into
the box for the Path/Source and click at >next/continue<. Now Windows searches for
the drivers in the specified directory. Follow the hardware assistant and finish the instal-
lation. If Windows recognizes other new devices repeat the above described steps.
Attention! Restart Windows in any case after installing the drivers.
CHECK THE INSTALLED DRIVER
Click at >Start< >Run< then enter "compmgmt.msc" and click at >OK<. In the win-
dows that opens select >Device Manager<. Under „Ports (COM and LPT)" you
should find a new „PCI Port" as sample (LPT3). If you see this or similar entries the
card is installed correctly.
CHANGE PORT NUMBER
If you like to change the port number for example LPT3 to LPT1, open the >Device Man-
ager< click at >LPT3<, >Settings< and then >Advance<. There you can change between
LPT1 to LPT3.
5
English English English EX- EX EX - - 44011 44011 44011- - - 2 2 2
DRIVER INSTALLATION
LINUX
There are no drivers available for Linux, but the card is supported by the most versions
of Linux. Because each individual distribution and kernel version of Linux is different,
sadly we cant provide a installation instruction. Please refer to the installation manual
for standard I/O ports from your Linux version! In some newer versions the card will
even be installed automatically after starting Linux.
English English English
Die EX-44011-2 ist eine PCI-Express parallel Karte mit einem parallelen EPP/ECP Bi-
Direktionalen Ausgang für den Anschluss von Peripheriegeräten mit Enhanced Centro-
nics Interface (z.B. Drucker, Scanner, Laufwerke usw.). Der serielle PCI-Express Bus
unterstützt optimal die Leistung der Karte. Die EX-44011-2 unterstützt alle PCI-Express
Slots von x1 bis x16. Es ist nicht möglich die I/O Adressen und Interrupts manuell
einzustellen, da die Einstellungen der Karte vom System (BIOS) und beim installieren
des Betriebssystems automatisch vorgenommen werden.
Kompatibilität:
Betriebssysteme:
Anschlüsse:
Lieferumfang:
Zertifikate:
DB 25F:
Wenn Sie die EX-44011-2 installieren, beachten Sie bitte die folgenden Installationshin-
weise. Da es große Unterschiede zwischen PC's gibt, können wir Ihnen nur eine generelle
Anleitung zum Einbau geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsan-
leitung Ihres Computersystems.
6
Bedienungsanleitung Bedienungsanleitung
Vers. 1.0 / 09.09.14

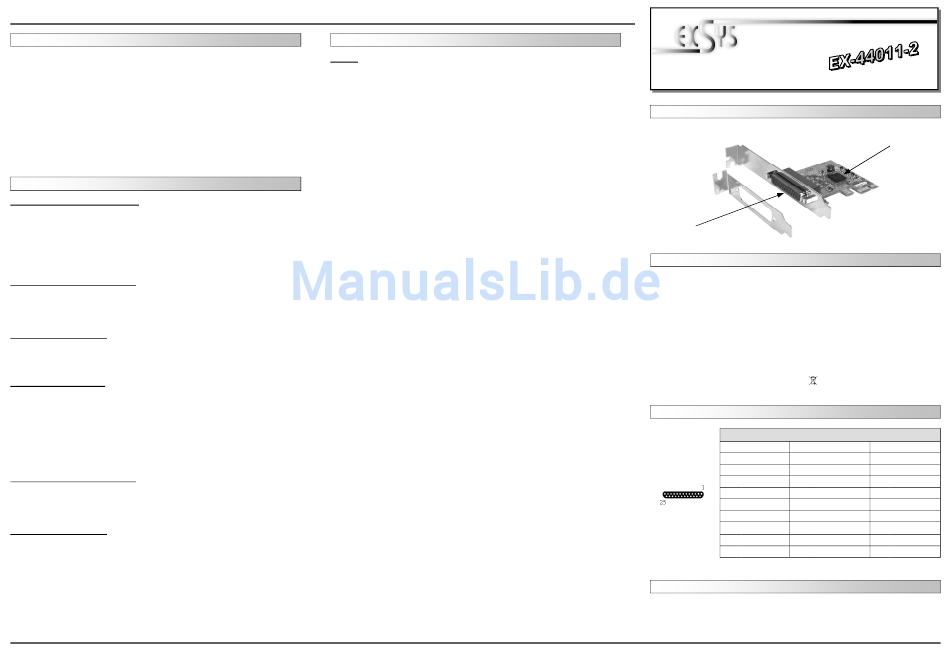

AUFBAU
P1: 25 Pin Buchse
Parallel Ausgang
Bi-Direktional
BESCHREIBUNG & TECHNISCHE DATEN
PCI-Express x1 bis x16
Windows 2000/ XP/ Vista/ 7/ 8/ Server 200x/ Linux
1x 25 Pin D-Sub Parallel Buchse
EX-44011-2, Treiber CD, Anleitung, LowProfile Bügel
CE / FCC / RoHS / WEEE CE CE CE DE97424562
ANSCHLÜSSE
Parallel 25 Pin Buchse (P1)
Pin Signal Pin Signal
1 STROBE 10 ACKNOWLEDGE
2 DATA 0 11 BUSY
3 DATA 1 12 PAPER EMPTY
4 DATA 2 13 SELECT
5 DATA 3 14 AUTO FEED
6 DATA 4 15 ERROR
7 DATA 5 16
8 DATA 6 17 SELECT INPUT
9 DATA 7 18 GROUND
HARDWARE INSTALLATION
1
Parallel Chip EPP/ECP
mit 32-Byte Buffer und
PCI-Bridge
Pin Signal
19 GROUND
20 GROUND
21 GROUND
22 GROUND
23 GROUND
24 GROUND
INIT 25 GROUND
