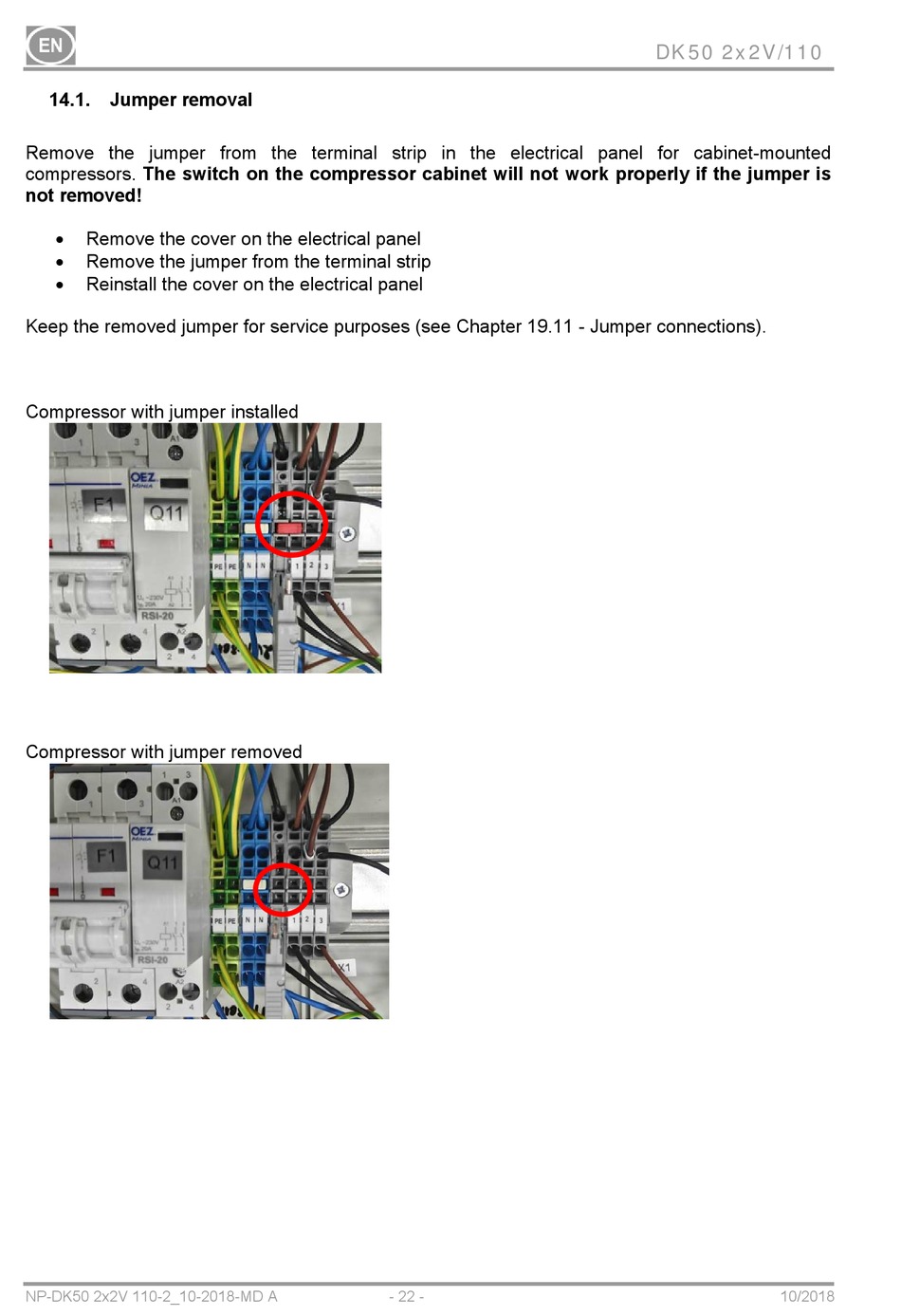

14.1. Jumper removal
Remove the jumper from the terminal strip in the electrical panel for cabinet-mounted
compressors. The switch on the compressor cabinet will not work properly if the jumper is
not removed!

Remove the cover on the electrical panel

Remove the jumper from the terminal strip

Reinstall the cover on the electrical panel
Keep the removed jumper for service purposes (see Chapter 19.11 - Jumper connections).
Compressor with jumper installed
Compressor with jumper removed
