ENGLISH
PLUS
433 E
410 MPS
MINIDEC
SL/DS

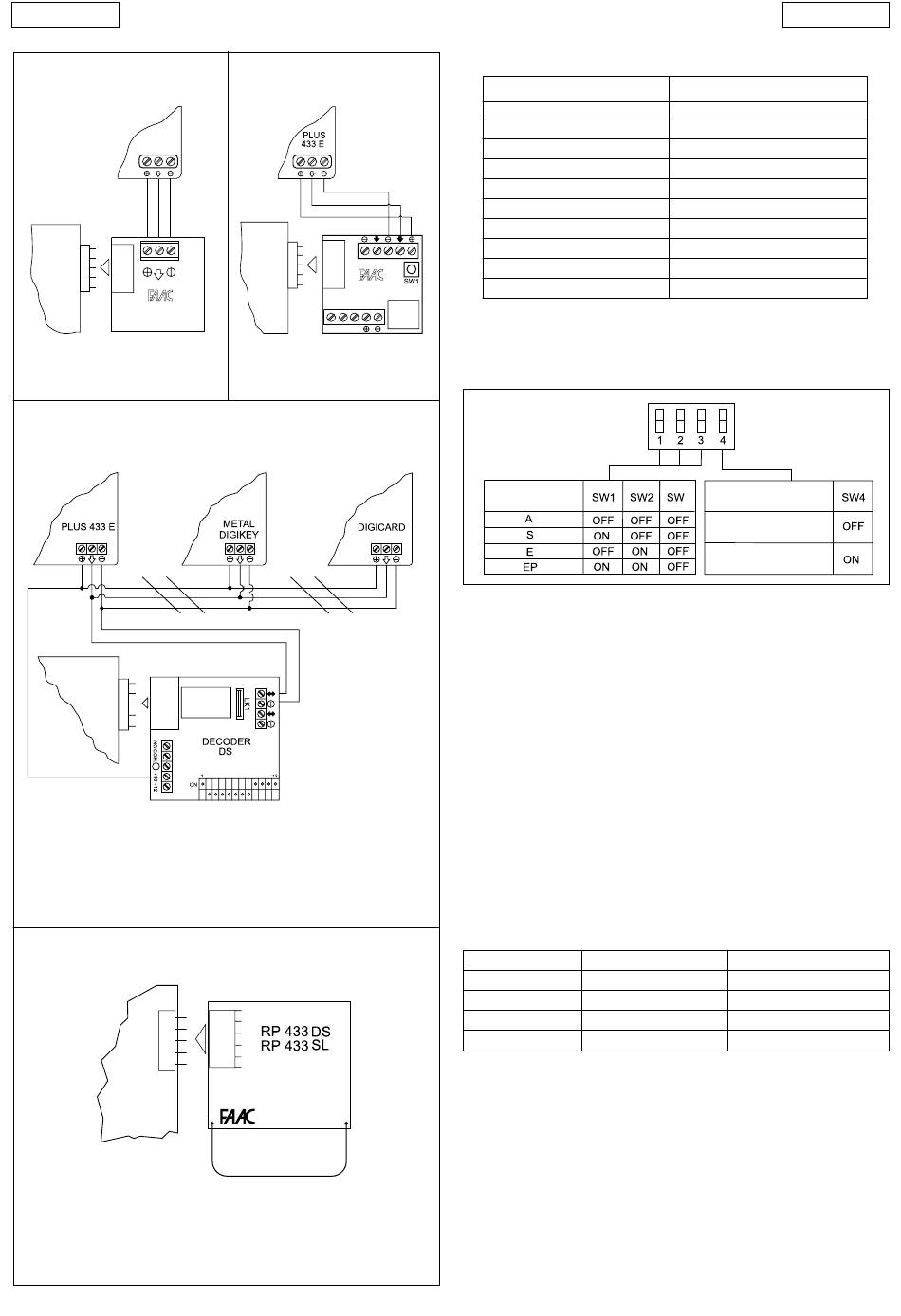

Fig. 22
410 MPS
N.B. Use a dedicated decoder for each accessory type.
410 MPS
410 MPS
DECODER
SL
Fig. 23
Fig. 24
Fig. 25
Table 3 - Current drawn by accessories
ACCESSORY
R 31
PLUS 433 E
MINIDEC SL / DS
DECODER SL / DS
RP 433 SL / DS
DIGICARD
METAL DIGIKEY
FOTOSWITCH
DETECTOR F4 / PS6
MINIBEAM
4.2.
PROGRAMMING THE MICROSWITCHES
Automation programming is carried out by the microswitches
(fig. 13 - ref. 9) as shown in the diagram below.
OPERATING
LOGICS
4.2.1.
OPERATION LOGICS
There are four operating logics available:
A : "AUTOMATIC "
S : "SAFETY"
Operation of the different logics is described in tables
5/a-b-c-d.
4.2.2.
SAFETIES ON CLOSING
This function serves to select the operating mode for the
closing safeties:
- OFF: immediate reverse of movement during gate closure
- ON: movement is stopped during closing and reversed on
opening when the safety is disengaged.
5. START-UP
1)
Programme the 410 MPS control unit to set the specific
installation requirements as shown in paragraph 4.2.
2)
Check led status as shown in table 4.
Table 4: LED functions
LEDS
D 1 (OPEN INPUT A)
D 3 (STOP)
D 4 (FTSW OPEN)
D 5 (FTSW CLOSE)
N.B.: the bold text indicates led status with gate idle.
5.1.
DIRECTION OF ROTATION
1)
Switch off the power.
2)
Release the operators and move the gate manually to its
mid-travel position.
3)
Lock the operators.
4)
Fit the protection plug supplied with the operator release
system.
5)
Switch on the power.
6)
Send an OPEN signal to input A (fig. 14) and check that the
leaf opens.
If the gate closes, invert the motor wires on the control unit
(brown and black wires).
18
CURRENT DRAWN
50 mA
20 mA
6 mA
20 mA / 55 mA
12 mA / 6 mA
15 mA
15 mA
90 mA
50 mA
70 mA
3
SAFETIES ON CLOSING
INVERTS MOVEMENT
IMMEDIATELY
STOPS AND INVERTS
MOVEMENT ON
DISENGAGEMENT
E : "SEMI-AUTOMATIC"
EP : "SEMI-AUTOMATIC STEP-BY-STEP"
ON
OFF
Command active
Command not active
Command not active
Command active
Safeties disengaged
Safeties engaged
Safeties disengaged
Safeties engaged
