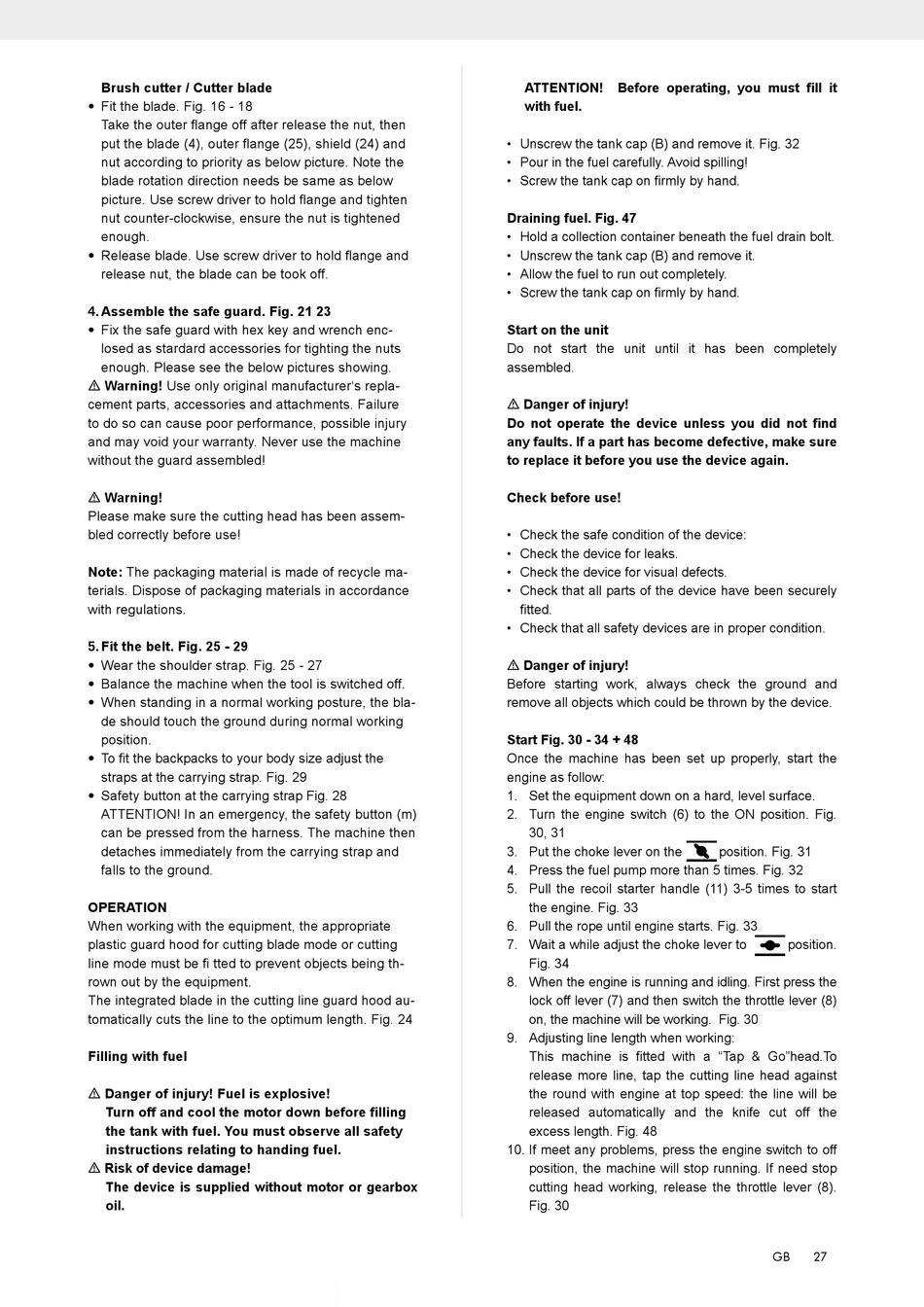

Brush cutter / Cutter blade
• Fit the blade. Fig. 16 - 18
Take the outer flange off after release the nut, then
put the blade (4), outer flange (25), shield (24) and
nut according to priority as below picture. Note the
blade rotation direction needs be same as below
picture. Use screw driver to hold flange and tighten
nut counter-clockwise, ensure the nut is tightened
enough.
• Release blade. Use screw driver to hold flange and
release nut, the blade can be took off.
4. Assemble the safe guard. Fig. 21 23
• Fix the safe guard with hex key and wrench enc-
losed as stardard accessories for tighting the nuts
enough. Please see the below pictures showing.
m Warning! Use only original manufacturer's repla-
cement parts, accessories and attachments. Failure
to do so can cause poor performance, possible injury
and may void your warranty. Never use the machine
without the guard assembled!
m Warning!
Please make sure the cutting head has been assem-
bled correctly before use!
Note: The packaging material is made of recycle ma-
terials. Dispose of packaging materials in accordance
with regulations.
5. Fit the belt. Fig. 25 - 29
• Wear the shoulder strap. Fig. 25 - 27
• Balance the machine when the tool is switched off.
• When standing in a normal working posture, the bla-
de should touch the ground during normal working
position.
• To fit the backpacks to your body size adjust the
straps at the carrying strap. Fig. 29
• Safety button at the carrying strap Fig. 28
ATTENTION! In an emergency, the safety button (m)
can be pressed from the harness. The machine then
detaches immediately from the carrying strap and
falls to the ground.
OPERATION
When working with the equipment, the appropriate
plastic guard hood for cutting blade mode or cutting
line mode must be fi tted to prevent objects being th-
rown out by the equipment.
The integrated blade in the cutting line guard hood au-
tomatically cuts the line to the optimum length. Fig. 24
Filling with fuel
m Danger of injury! Fuel is explosive!
Turn off and cool the motor down before filling
the tank with fuel. You must observe all safety
instructions relating to handing fuel.
m Risk of device damage!
The device is supplied without motor or gearbox
oil.
ATTENTION!
Before operating, you must fill it
with fuel.
• Unscrew the tank cap (B) and remove it. Fig. 32
• Pour in the fuel carefully. Avoid spilling!
• Screw the tank cap on firmly by hand.
Draining fuel. Fig. 47
• Hold a collection container beneath the fuel drain bolt.
• Unscrew the tank cap (B) and remove it.
• Allow the fuel to run out completely.
• Screw the tank cap on firmly by hand.
Start on the unit
Do not start the unit until it has been completely
assembled.
m Danger of injury!
Do not operate the device unless you did not find
any faults. If a part has become defective, make sure
to replace it before you use the device again.
Check before use!
• Check the safe condition of the device:
• Check the device for leaks.
• Check the device for visual defects.
• Check that all parts of the device have been securely
fitted.
• Check that all safety devices are in proper condition.
m Danger of injury!
Before starting work, always check the ground and
remove all objects which could be thrown by the device.
Start Fig. 30 - 34 + 48
Once the machine has been set up properly, start the
engine as follow:
1. Set the equipment down on a hard, level surface.
2. Turn the engine switch (6) to the ON position. Fig.
30, 31
3. Put the choke lever on the
4. Press the fuel pump more than 5 times. Fig. 32
5. Pull the recoil starter handle (11) 3-5 times to start
the engine. Fig. 33
6. Pull the rope until engine starts. Fig. 33
7. Wait a while adjust the choke lever to
Fig. 34
8. When the engine is running and idling. First press the
lock off lever (7) and then switch the throttle lever (8)
on, the machine will be working. Fig. 30
9. Adjusting line length when working:
This machine is fitted with a "Tap & Go"head.To
release more line, tap the cutting line head against
the round with engine at top speed: the line will be
released automatically and the knife cut off the
excess length. Fig. 48
10. If meet any problems, press the engine switch to off
position, the machine will stop running. If need stop
cutting head working, release the throttle lever (8).
Fig. 30
position. Fig. 31
position.
