electRicAl cOnnectiOn AnD gROunDing

SOLARWATT solar modules are equipped at the factory with
high-quality solar cables and reverse-polarity protected,
shock-proof plug connectors. No others may be used. When con-
necting the modules, ensure that the plugs engage with an au-
dible click.
To ensure that the products are safe and comply with the tech-
nical data, only genuine tools from the relevant manufacturer
may be used when self-assembling solar cables. The solar ca-
bles must be compatible with the module plug system of the
relevant manufacturer.
Connection of modules in series is only permitted up to
the maximum system voltage as listed in the applicable
data sheet. The recommended maximum number of solar mod-
ules installed parallel is three (without string fuse). Please

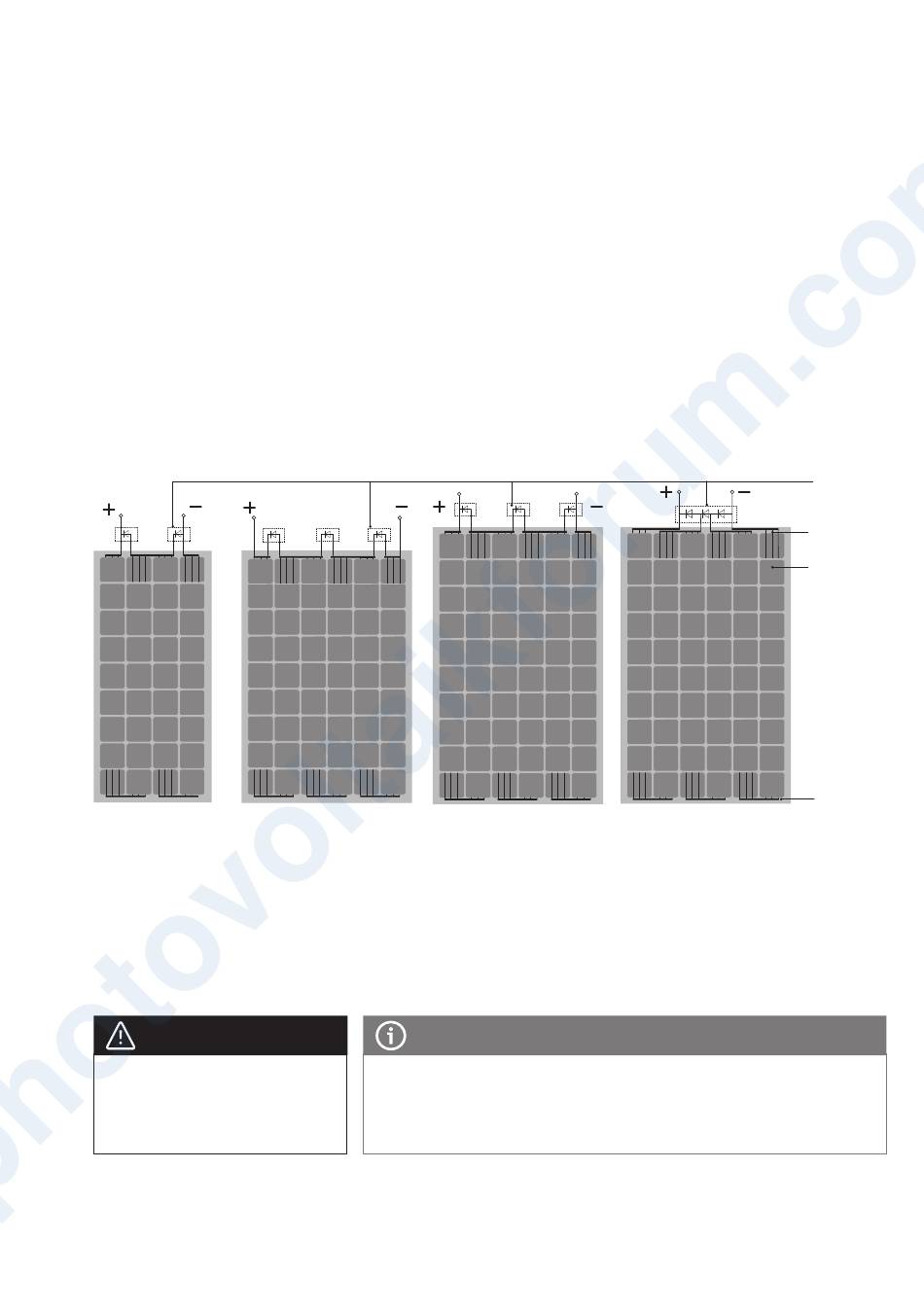

Module diagramm front side Module diagramm front side
SOLARWATT 36M style SOLARWATT 54M style
SOLARWATT 36P style SOLARWATT 54P style
WARning
The plug contacts must not be connected
or disconnected under load. Failure to
comply with this warning could result
in DEATH!
STaTuS: 10/2013 | inSTallaTion inSTrucTionS rev. 6.4 | Subject to change | © 2013 SolarWaTT GmbH
comply with the value specified in the data sheet for reverse-
current feed and only use standardized photovoltaic cables
(recommendation: at least 4 mm² cable cross-section).
The solar modules correspond to application class A and can
therefore be operated in systems with dangerous DC voltages
(larger than 120 V
es. Solar modules in this application class can be used in sys-
tems with unrestricted access, the relevant regulations must
be complied with. SOLARWATT solar modules qualified within
this application class in accordance with IEC 61730 fulfill the
requirements of protection rating II with correct electrical in-
stallation.
Module diagramm front side
SOLARWATT 60M style
SOLARWATT 60P style
nOte
It is advisable to install lightening protection in exposed locations. The solar modules
should be incorporated in existing lightening protection equipment. For this, take into
account the relevant valid regulations (e.g. EN 62305 and VDE 100).
in accordance with IEC 61730) and servic-
DC
Module diagramm front side
SOLARWATT 60P
Junction box with
bypass diodes
Cell connector
Solarcell
Cross-connectors
