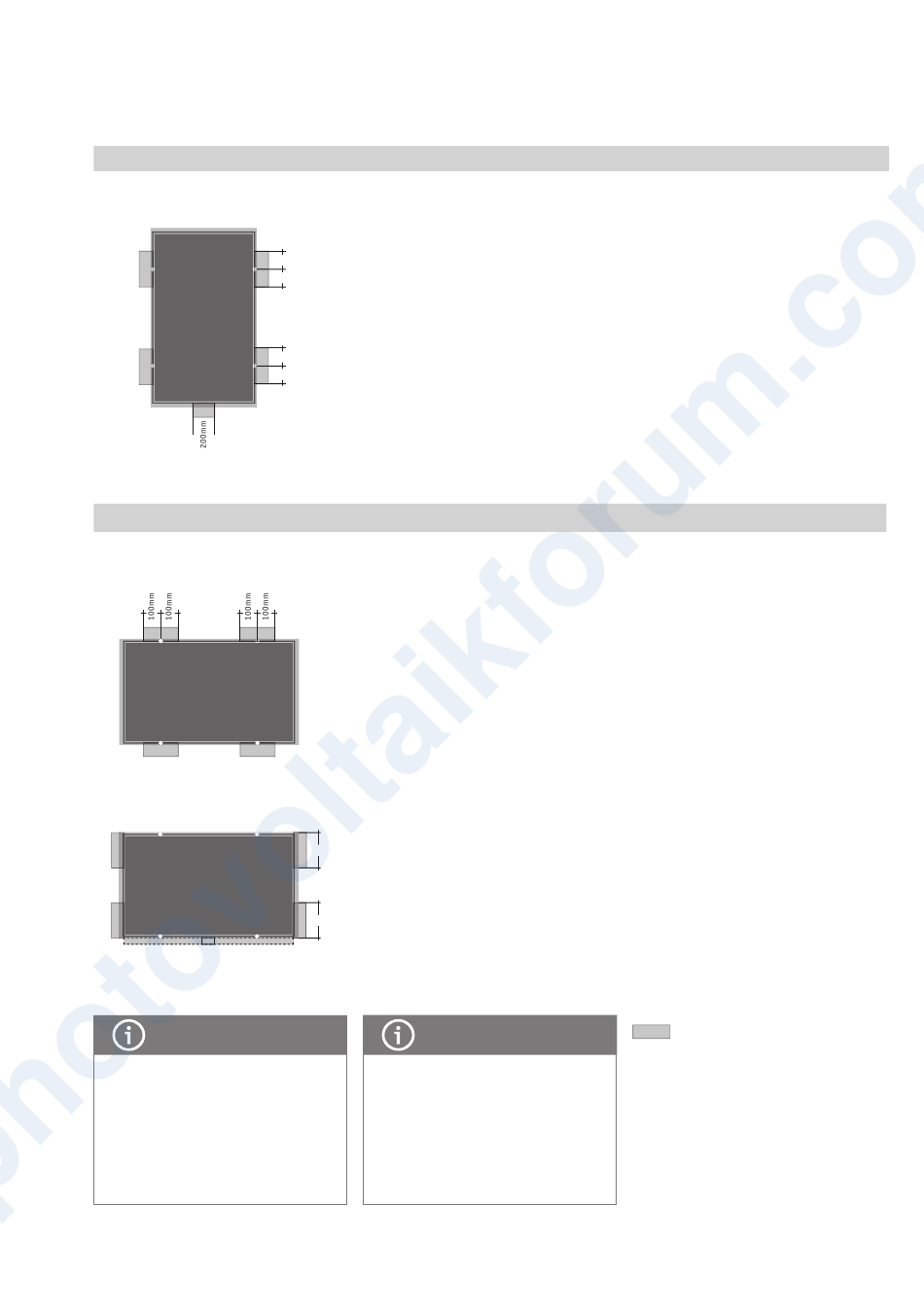

Horizontal Installation - SOLARWATT 60M style Montageanleitung

Vertical installation for increased snow load

Horizontal installation

nOte
It is not permitted to use SOLARWATT
solar modules as overhead glazing. For
roof installation, these solar modules
may only be installed over a fi re-resistant
roof covering.
STATUS: 10/2013 | INSTALLATION INSTRUCTIONS Rev. 6.4 | Subject to change | © 2013 SOLARWATT GmbH
Fastening on long sides and short side
The maximum pressure load to the solar module for the
100 mm
installation method is 3,750 N/m².
100 mm
100 mm
100 mm
Fastening on long sides
The maximum pressure load to the solar module for the
installation method is 5,500 N/m².
Fastening on short sides
200 mm
In addition, this fastening mode requires a central,
round or linear support on the lower frame side (central
support). The maximum pressure load to the solar mod-
ule for the installation method is 3,500 N/m².
200 mm
nOte
The solar module heats up during opera-
tion. Ensure that there is suffi cient rear
ventilation to avoid reductions in yield.
Also ensure that no fl ammable gases can
escape or accumulate close by.
areas approved for fastening
13
