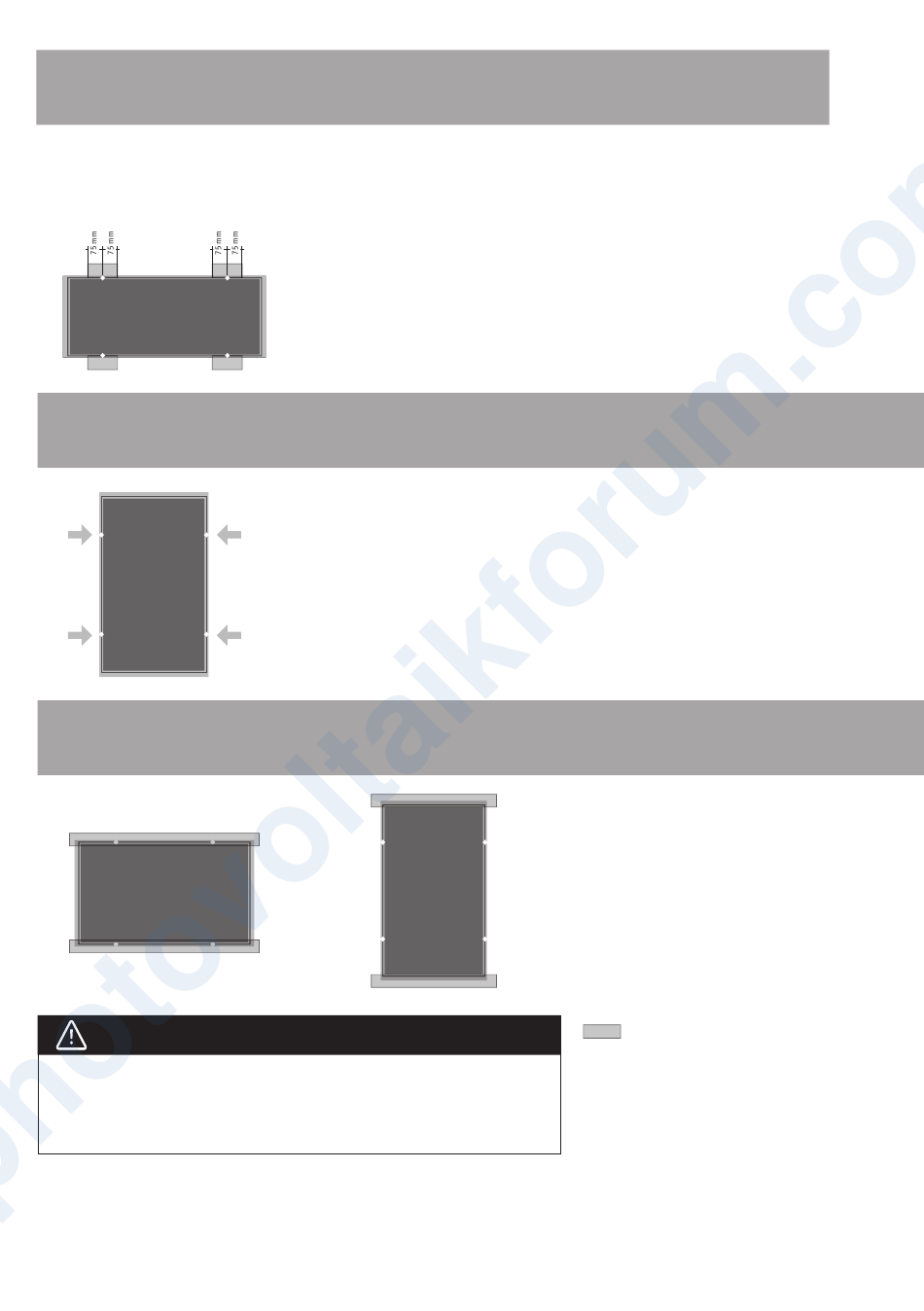

instAllAtiOn With incReAseD snOW lOAD
SOLARWATT 36 style: Fix in place with suitable module clamps
The solar module SOLARWATT 36 style is
suitable for use under extreme snow load
conditions. Special regulations must be
complied with during installation. The
3
scReW fiXtuRes
Fastening on the fastening holes with screws
4
inseRtiOn sYsteM
Fixed in place by inserting in a supporting frame
WARning
Solar modules generate electrical energy on the front side during incidence of light. A
system with multiple solar modules can generate life-threatening voltages and electrical
currents. Do not touch the electrical connections or cable ends while the solar module is
exposed to light.
14
installation version for increased snow
loads is horizontal only (long module
side parallel to the ridge of the roof). The
clip surfaces must be suffi ciently sized
Fastening on long sides
It is advisable to use a crossbar system for fastening
to ensure that the vertical installation profi les can be
positioned exactly on the released clamping section.
The maximum pressure load to the solar module for the
installation method is 7,600 N/m².
Fastening on the fastening holes
Only use the holes provided in the frame (diameter: 9
mm). The maximum pressure load to the solar module
for the installation method is 2,400 N/m².
STATUS: 10/2013 | INSTALLATION INSTRUCTIONS Rev. 6.4 | Subject to change | © 2013 SOLARWATT GmbH
(areas of 400 mm² per fastening point are
required).
The maximum pressure load to the solar module for the
installation method is 2,400 N/m².
areas approved for fastening
