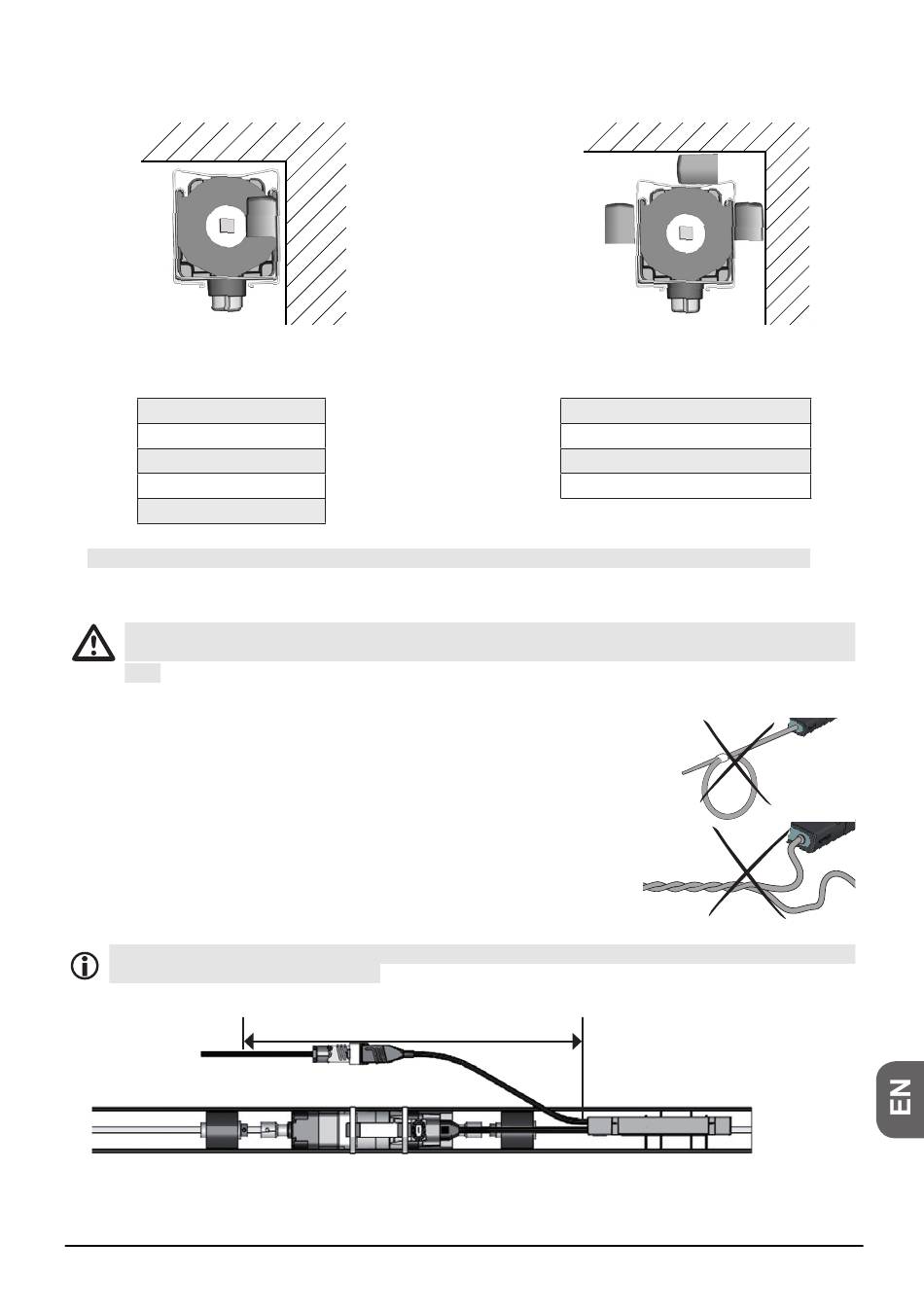

Mounting inside the head rail
• The mounting of the J4 io plate inside the head rail is compatible with the following head rails and shafts:
HEAD RAIL
57 x 51 mm
58 x 56 mm
78 x 67 mm
65 x 64 mm
In order to fix the plate inside the head rail, you may use double sided adhesive tape ref: 9016646.
Mounting the plate with double sided adhesive tape is guaranteed to temperatures from -30°C to
70°C. However, to ensure proper adhesion over time, it is essential to stick the tape to a clean sur-
face.
• It is prohibited to create a complete loop on the supply cable of the J4 io
plate.
• Do not interlace the supply cable of the J4 io plate with another cable.
To ensure that the radio signal is transmitted correctly, it is necessary to pull the J4 io plate supply cable
out of the head rail by at least 30 cm.
© 2013 Somfy SAS. All rights reserved. 06/2013
Mounting outside the head rail
L ≥ 30 cm
SHAFT
Up to 14 mm hex
Up to 14 mm square
Up to 14 mm diameter
