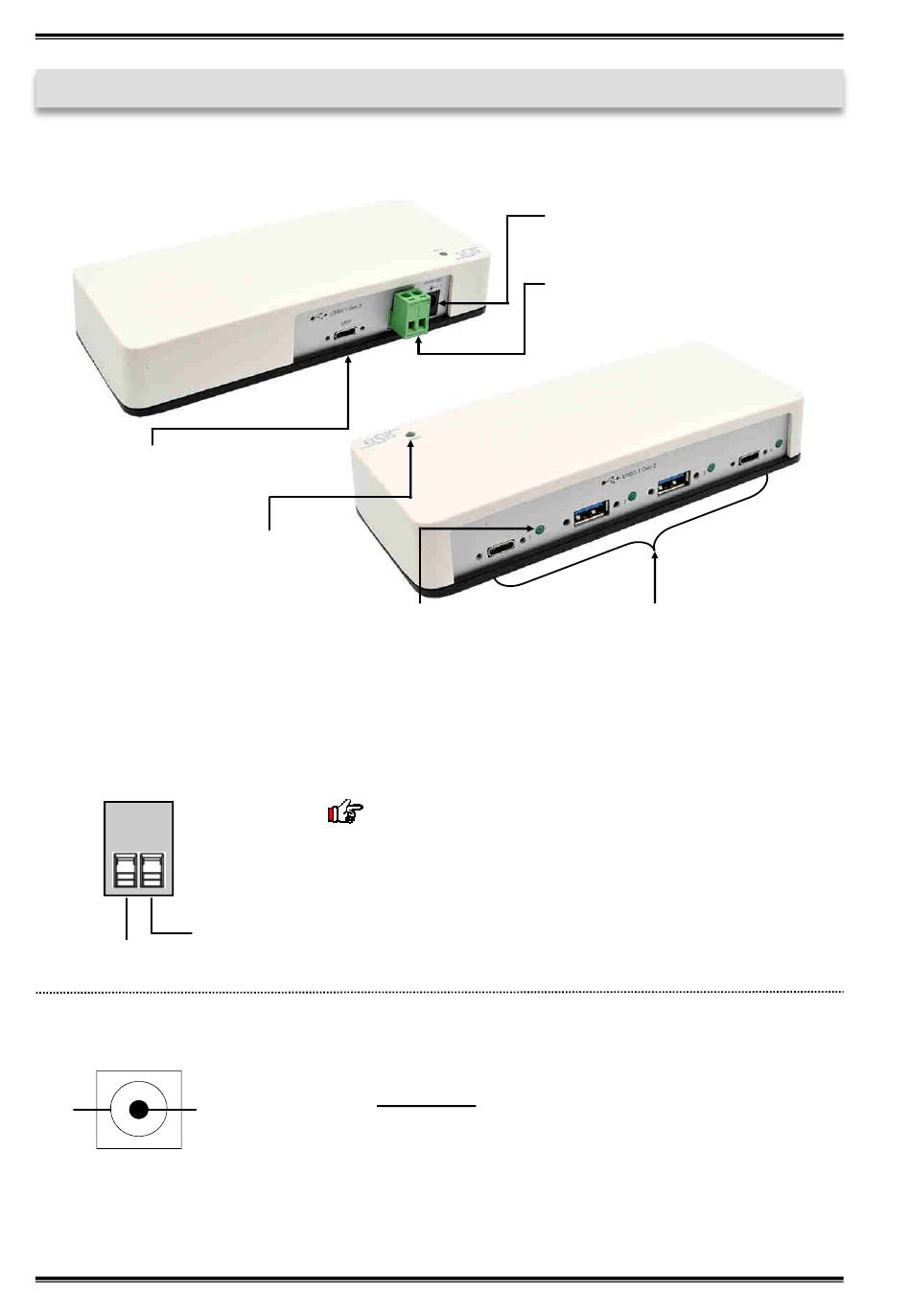

3. Layout, Connections & LED's

3.1 Layout

1x USB 3.1 (Gen2)
Upstream C-Port

3.2 Connections

+7V-24V T-Block:
GND (Ground)
+7V - 24V
+7-24V Connector:
-
+
© Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved
Power LED
Status LED
for each Port
ATTENTION!!
Never connect power to GND, it will destroy
your Hardware!!!
Attention!!!
Use only with the optional power supply!
7-24V DC Connector for
included Power Supply
7-24V T-Block for optional
external Power Supply
4x USB 3.1 (Gen2)
Downstream A- & C-Port
10
EX-1250V
