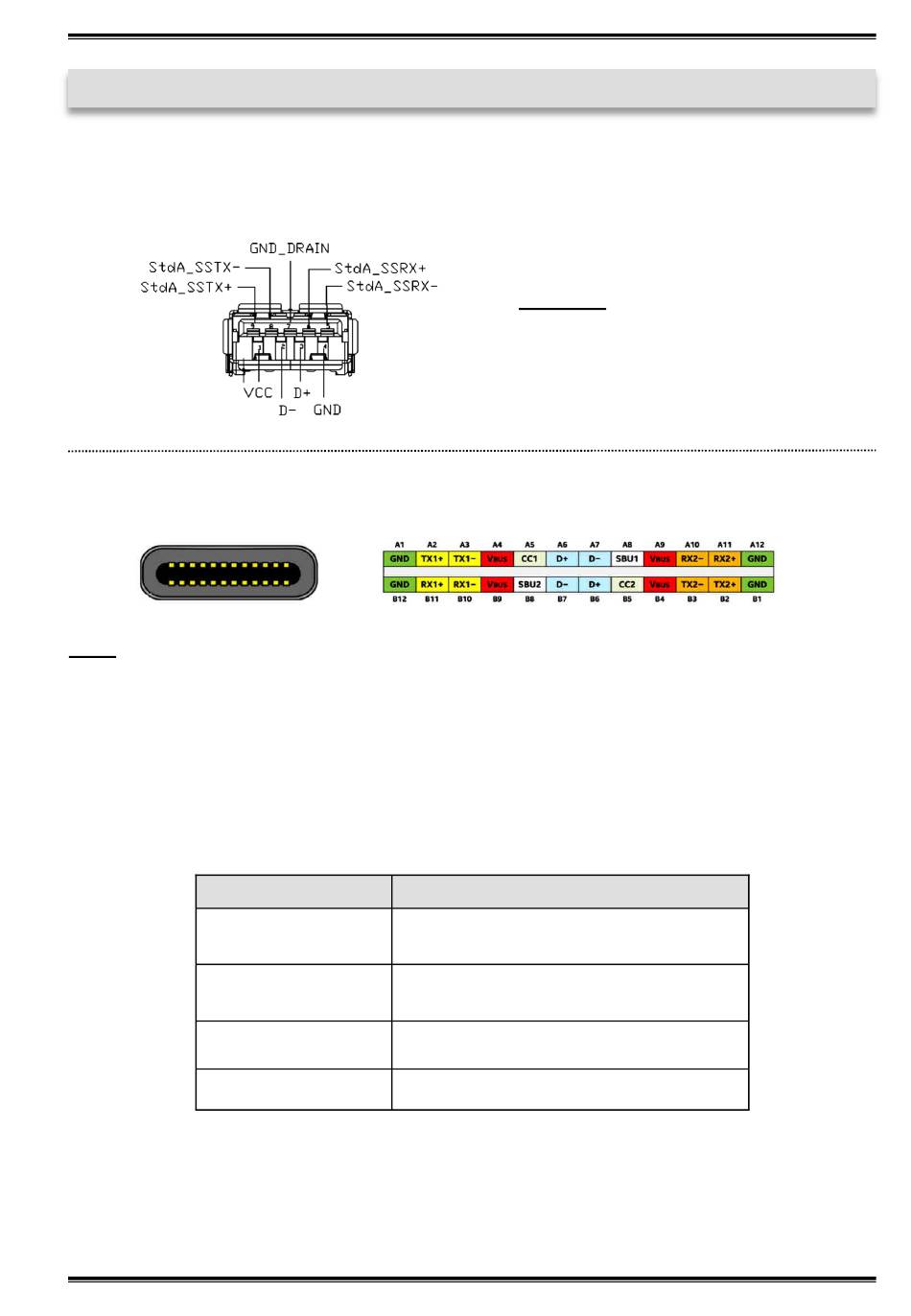

3. Layout, Connections & LED's
3.2 Connections
USB 3.1 (Gen2) A-Port:
USB 3.1 (Gen2) C-Port:
Note!
By dual assignment of the pins, the USB Type-C plug can be plugged into the port on both
sides.

3.3 LED's

Status LED's:
© Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved
LED Status
Off
Slow Flash
Fast Flash
Steady On
Attention!
Never plug in with force or in
wrong direction.
LED Function
No USB Device connected
USB 2.0 Mode
USB 3.1 (Gen1) Mode
USB 3.1 (Gen2) Mode
