4. Hardware Installation

Because there are large differences between PC's, we can give you only a general in-
stallation guide. Please refer your computer's reference manual whenever in doubt.
1. If you want to install the EX-1250V on a wall or on a DIN-RAIL, then please go
ahead with the steps 5, 6 & 7 on page 12-13 before proceeding to step 2.
2. Now connect the included USB cable to the USB C-Port of the hub.
3. Connect the included power supply to the DC connector at the hub or connect the
optional power supply into the terminal block at the Hub
4. Now connect the other end from the USB cable (C-Plug) to the C-Port at your PC.

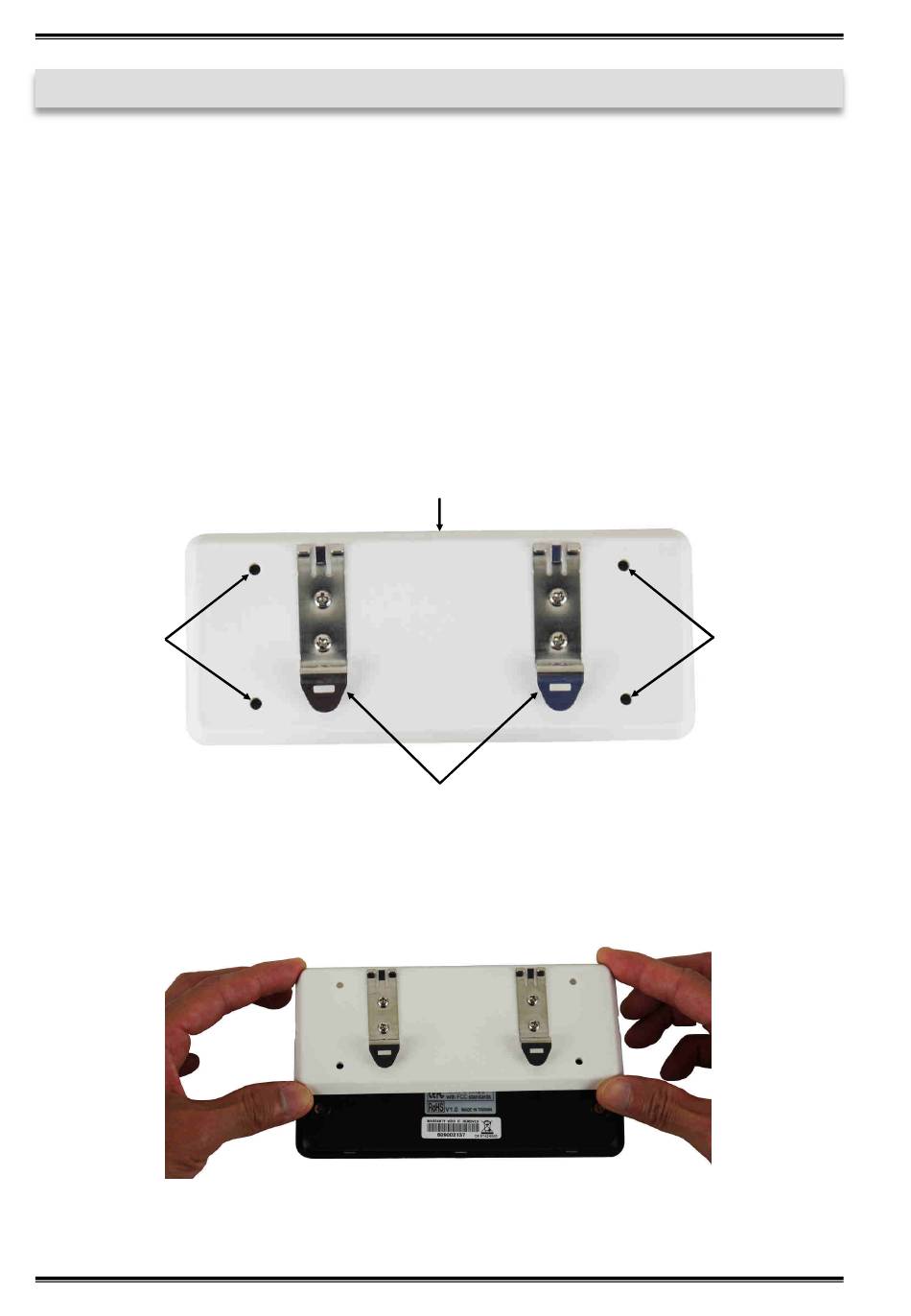

5. Install the two DIN-RAIL clips to the Wall Mounting Bracket.
Holes for
Wall Mounting
6. Assemble the Wall Mounting Bracket at the bottom of the EX-1250V.
© Copyright 2017 by EXSYS Vertriebs GmbH. All Rights Reserved
Wall Mounting Bracket
DIN-RAIL Clips
12
EX-1250V
Holes for
Wall Mounting
