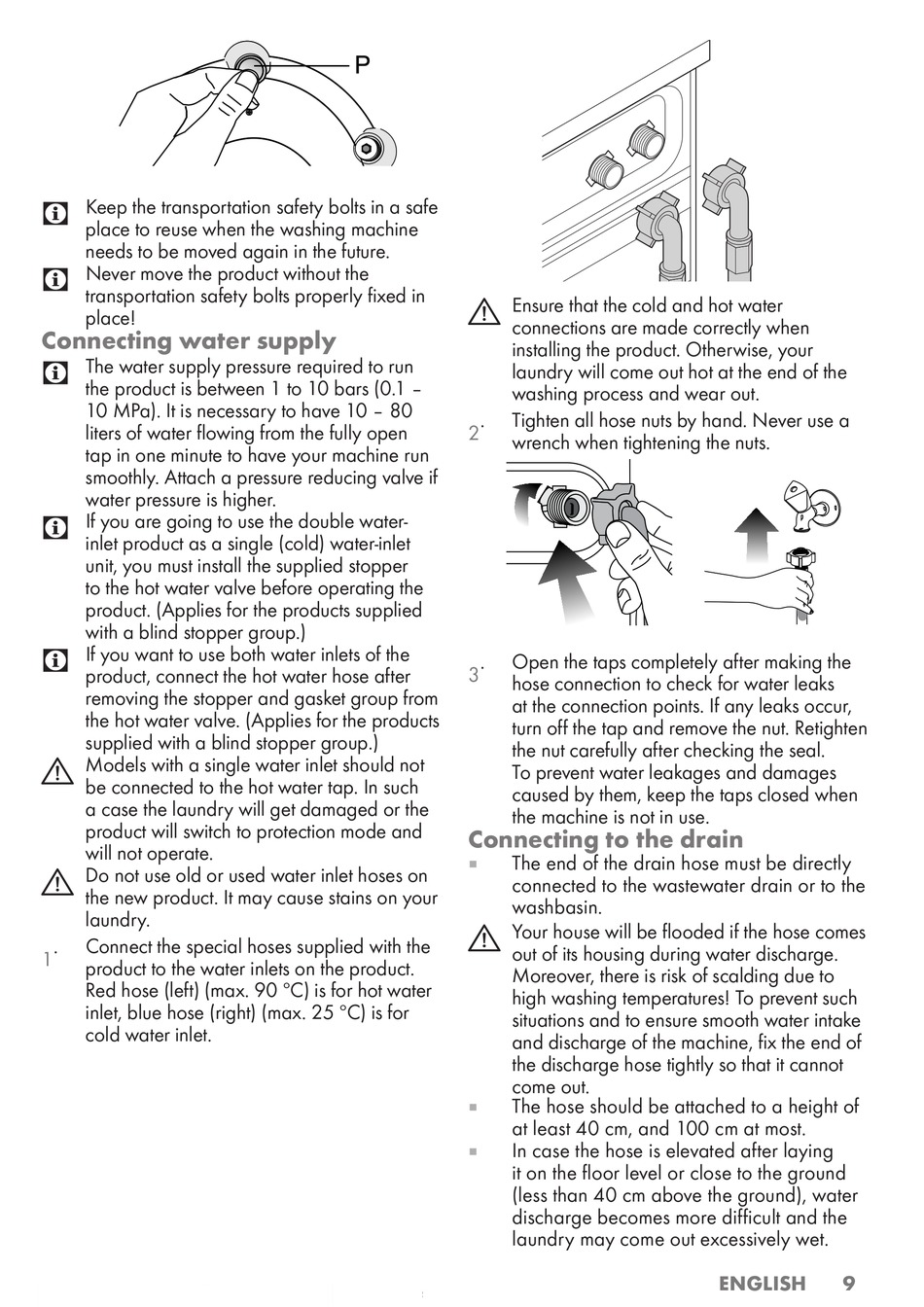

Keep the transportation safety bolts in a safe
C
place to reuse when the washing machine
needs to be moved again in the future.
Never move the product without the
C
transportation safety bolts properly fixed in
place!

Connecting water supply

The water supply pressure required to run
C
the product is between 1 to 10 bars (0.1 –
10 MPa). It is necessary to have 10 – 80
liters of water flowing from the fully open
tap in one minute to have your machine run
smoothly. Attach a pressure reducing valve if
water pressure is higher.
If you are going to use the double water-
C
inlet product as a single (cold) water-inlet
unit, you must install the supplied stopper
to the hot water valve before operating the
product. (Applies for the products supplied
with a blind stopper group.)
If you want to use both water inlets of the
C
product, connect the hot water hose after
removing the stopper and gasket group from
the hot water valve. (Applies for the products
supplied with a blind stopper group.)
Models with a single water inlet should not
A
be connected to the hot water tap. In such
a case the laundry will get damaged or the
product will switch to protection mode and
will not operate.
Do not use old or used water inlet hoses on
A
the new product. It may cause stains on your
laundry.
. Connect the special hoses supplied with the
1
product to the water inlets on the product.
Red hose (left) (max. 90 ºC) is for hot water
inlet, blue hose (right) (max. 25 ºC) is for
cold water inlet.
Ensure that the cold and hot water
A
connections are made correctly when
installing the product. Otherwise, your
laundry will come out hot at the end of the
washing process and wear out.
. Tighten all hose nuts by hand. Never use a
2
wrench when tightening the nuts.
. Open the taps completely after making the
3
hose connection to check for water leaks
at the connection points. If any leaks occur,
turn off the tap and remove the nut. Retighten
the nut carefully after checking the seal.
To prevent water leakages and damages
caused by them, keep the taps closed when
the machine is not in use.

Connecting to the drain

•
The end of the drain hose must be directly
▪
connected to the wastewater drain or to the
washbasin.
Your house will be flooded if the hose comes
A
out of its housing during water discharge.
Moreover, there is risk of scalding due to
high washing temperatures! To prevent such
situations and to ensure smooth water intake
and discharge of the machine, fix the end of
the discharge hose tightly so that it cannot
come out.
•
The hose should be attached to a height of
▪
at least 40 cm, and 100 cm at most.
•
▪ In case the hose is elevated after laying
it on the floor level or close to the ground
(less than 40 cm above the ground), water
discharge becomes more difficult and the
laundry may come out excessively wet.
ENGLISH 9
