Measurements in Vertical or Lateral Position

For these measurements, the standard probe arm of the
MarSurf MFW 250 or MFW 250 B is used. In addition, special
probe arms and probes with increased measuring force are
available (upon request).
− The drive unit's bottom is pressed manually against a
vertical surface. According to the measurement task, the
drive unit must be held either vertically (see Fig. 10) or
horizontally.

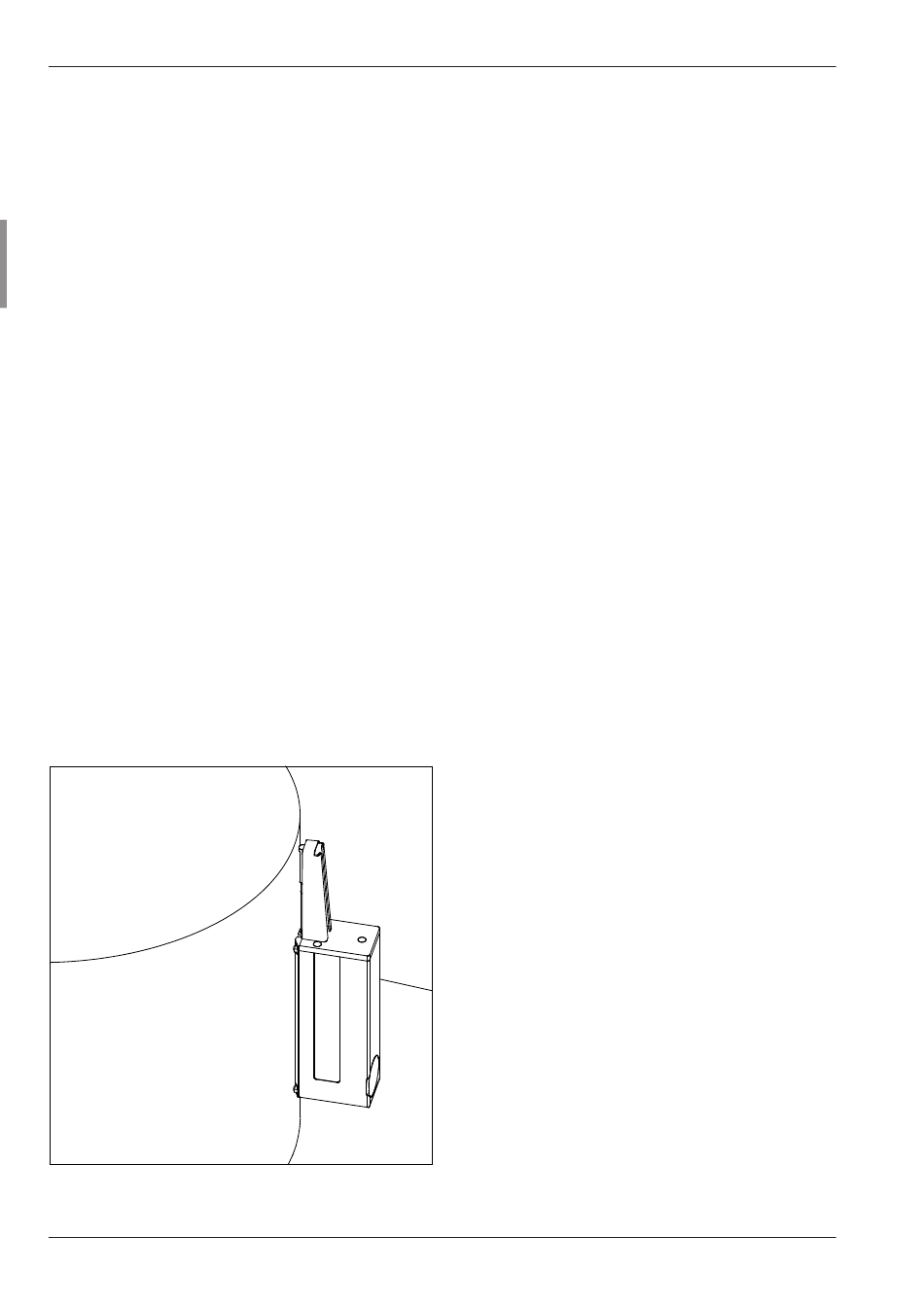

Fig. 10
Measurement in vertical position
