5.7 DISPOSIZIONE SALDATURA MIG
5.7 DISPOSIZIONE SALDATURA
5.7 DISPOSIZIONE SALDATURA
5.7 DISPOSIZIONE SALDATURA
1) Rispettare le indicazioni fornite precedentemente a riguardo dell' allacciamento primario e dell'installa-
zione.

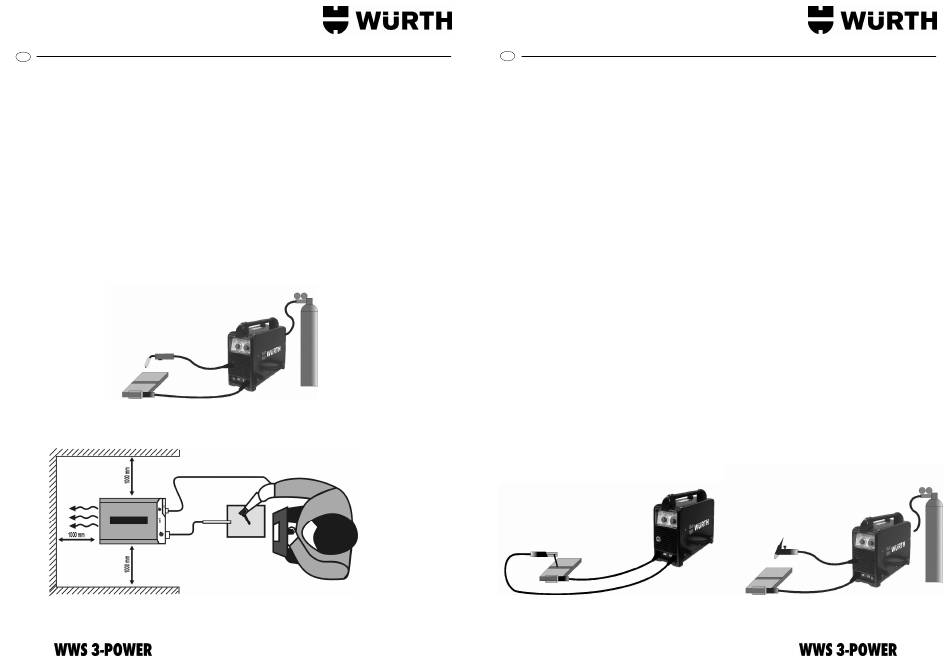

2) La macchina è predisposta anche per la saldatura in modalità MIG sinergico con filo acciaio/carbonio
da 0.6 e 0.8.
3) Per impostare la saldatura in modalità sinergica premere il pulsante AUTO SET (n.15Section 5.1) , il
led selezione modalità mig sinergico (n.14 Section 5.1) si accende color rosso (sinergia impostata filo
0.6), premendo nuovamente si accende il led color verde (sinergia impostata filo 0.8).
4) A questo punto tramite il potenziometro di regolazione spessore materiale (n.13 Section 5.1) imposta-
re lo spessore di materiale che si desidera saldare, facendo riferimento alla scala rossa per filo da 0.6 o
la scala verde per il filo da 0.8.
5) C'è la possibilità di effettuare un aggiustamento del +/-20% della velocità tramite il potenziometro di
regolazione della velocità del filo (n.12 Section 5.1), rispetto al valore ottimale reimpostato dal program-
ma della macchina.
6) Per uscire dalla modalità mig sinergico premere il pulsante AUTO SET (n.15 Section 5.1) fino allo
spegnimento del led selezione modalità mig sinergico (n.14 Section 5.1).
6.0 FIGURE
6.0 FIGURE
6.0 FIGURE
6.0 FIGURE
6.1 DISTANZE POSTERIORI E LATERALI DA MANTENERE DURANTE LA
6.1 DISTANZE POSTERIORI E LATERALI DA MANTENERE DURANTE LA
6.1 DISTANZE POSTERIORI E LATERALI DA MANTENERE DURANTE LA
6.1 DISTANZE POSTERIORI E LATERALI DA MANTENERE DURANTE LA
SALDATURA
SALDATURA
SALDATURA
SALDATURA
12
MIG SINERGICO
MIG
MIG
SINERGICO
SINERGICO
SINERGICO
GB
5.3 PREPARING FOR ELECTRODE WELDING (MMA)
5.3 PREPARING FOR ELECTRODE WELDING (MMA)
5.3 PREPARING FOR ELECTRODE WELDING (MMA)
5.3 PREPARING FOR ELECTRODE WELDING (MMA)
1) Respect the indications given previously concerning primary connection and installation.
2) Connect the earth cable to the negative socket of the generator (n.10 Section 5.1)
3) Connect the electrode holder to the positive socket (n.11 Section 5.1)
4) With the MODE button (n.8 Section 5.1) to select the electrode mode, led electrode mode selected
turned on (n.4 Section 5.1)
5.4 PREPARING FOR WELDING (TIG)
5.4 PREPARING FOR WELDING (TIG)
5.4 PREPARING FOR WELDING (TIG)
5.4 PREPARING FOR WELDING (TIG)
1) Respect the indications given previously concerning primary connection and installation.
2) Connect the earth cable to the positive socket of the machine (n.11 Section 5.1)
3) Connect the torch coupling to the centralised euro socket of the machine (n.9 Section 5.1)
3) Check the position of the polarity changing cable, opening the side door: for TIG welding it must be in
position "-".
4) With the MODE button (n.8 Section 5.1) to select the TIG mode, led TIG mode selected turned on (n.5
Section 5.1)
5) Connect the gas cylinder (Argon) to the device provided on the rear of the generator.
6) Set the welding current with the current regulating potentiometer (n.12 Section 5.1)
7) Set the SLOPE-DOWN time with the function regulating potentiometer (n.13 Section 5.1)
(MMA)
(TIG)
