Wet/dry LED indicator
In addition to numeric measurement display in % of relative material moisture,
the LED display also provides a material-dependent evaluation of moisture.
The LED display bar becomes larger, from left to right, with increasing moisture
content. The 12-position LED display is subdivided into 4 green (dry), 3 yellow
(moist) and 5 red (wet) segments. Wet material causes an additional acoustic
signal.
Green = dry
The classification „dry" means that materials in a heated room have
!
reached a balanced moisture level and are thus suitable for further
processing.
6
9

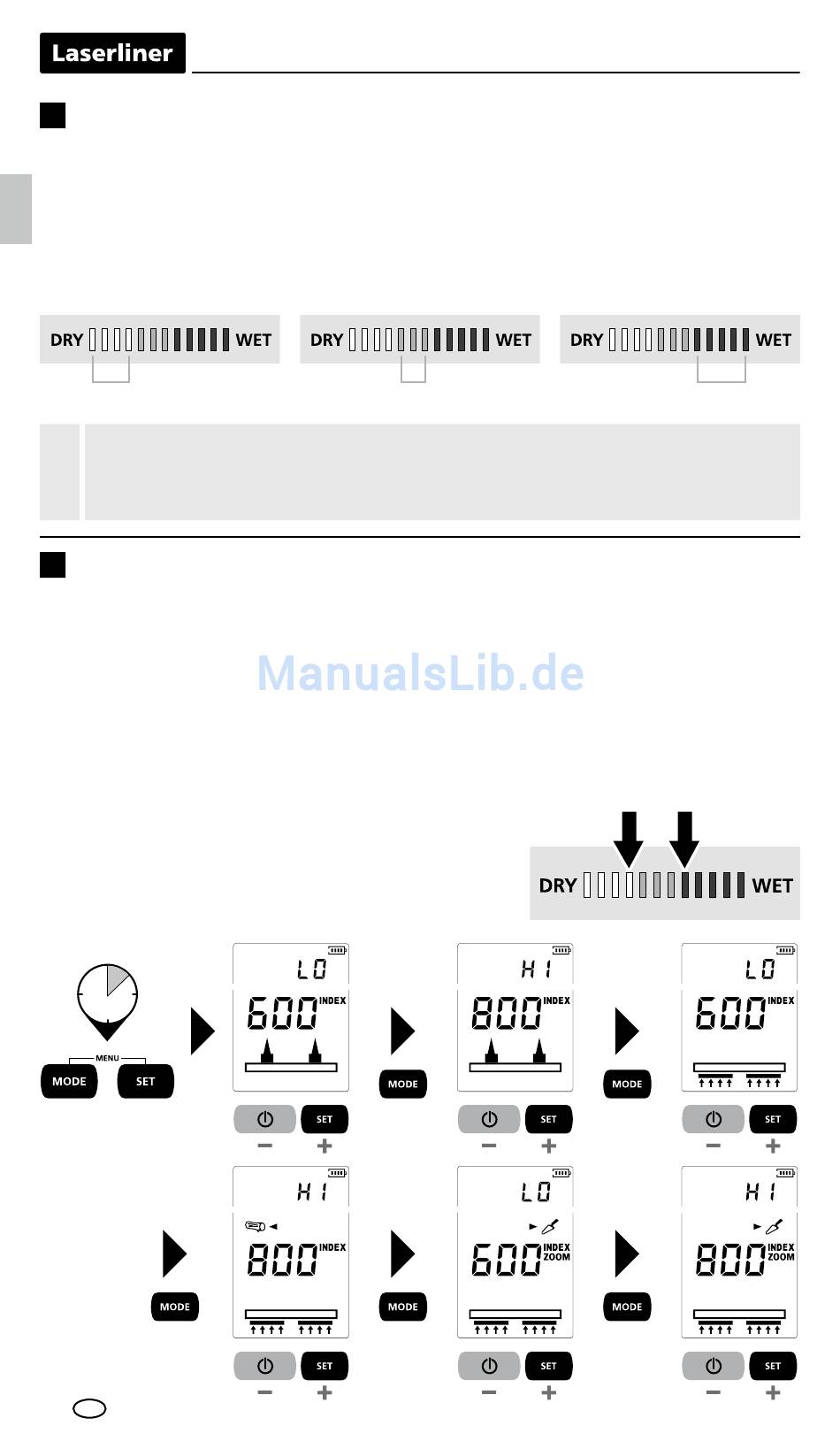

Setting the wet/dry threshold values
in index mode and Index Zoom mode
The wet/dry LED indicator is programmed in line with the relevant material
characteristics so the LEDs also provide information about whether the material
should be classified as dry, moist or wet. However the values in index mode
and Index Zoom mode, which is independent of the material type, are output
on a neutral scale whose value increases as the moisture level rises.
The LED indicator can be specifically programmed
for index mode and Index Zoom mode by
defining the end values for „dry" and „wet".
The difference between the value set for
„dry" and that set for „wet" is converted
and displayed by the 12 LEDs.
2 sec
26
EN
Yellow = moist
Red = wet
DRY WET
limit limit
