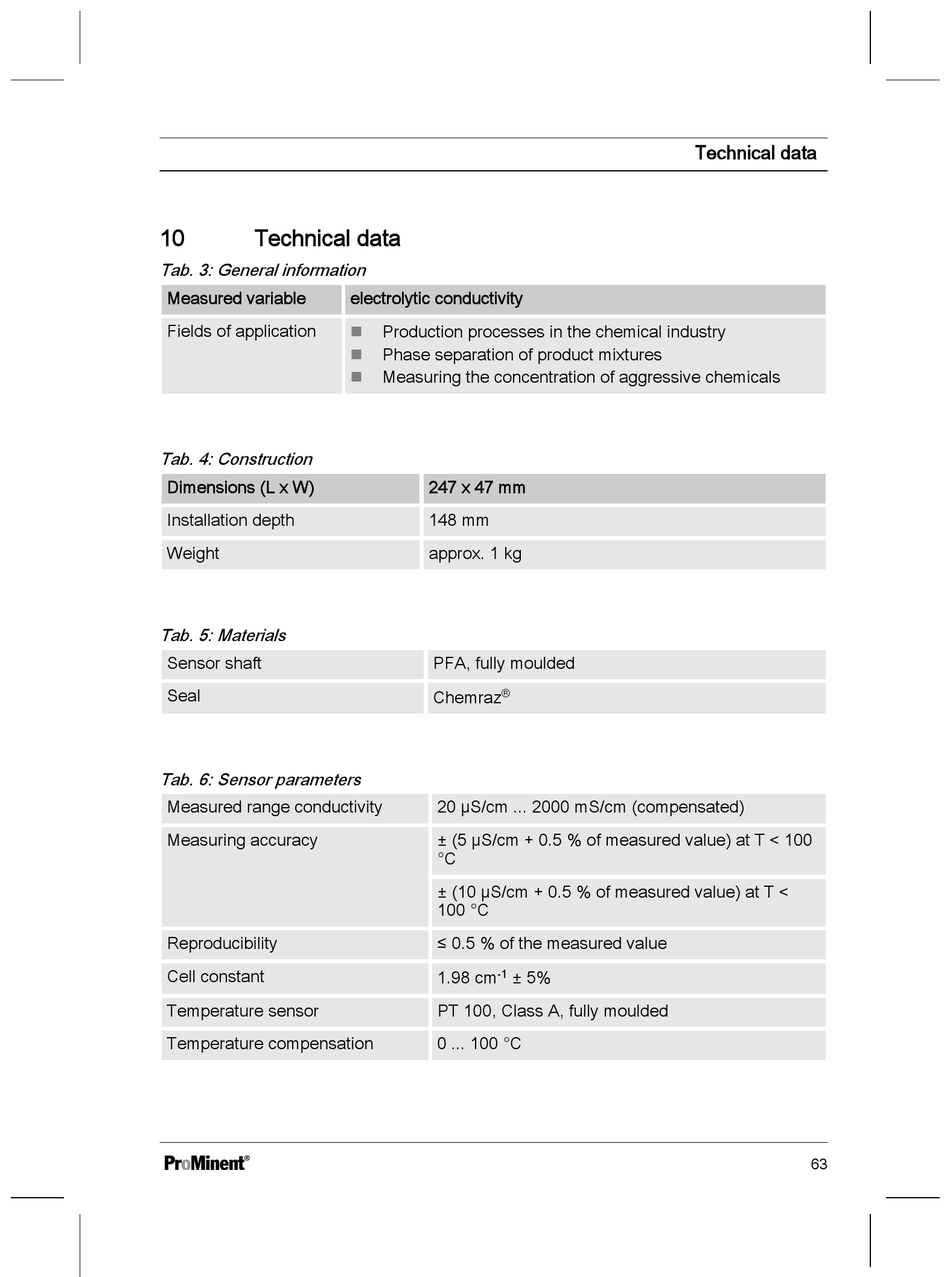

Technical Data - Prominent Dulcotest Montage- Und Betriebsanleitung

10

Technical data

Tab. 3: General information
Measured variable
Fields of application
Tab. 4: Construction
Dimensions (L x W)
Installation depth
Weight
Tab. 5: Materials
Sensor shaft
Seal
Tab. 6: Sensor parameters
Measured range conductivity
Measuring accuracy
Reproducibility
Cell constant
Temperature sensor
Temperature compensation
electrolytic conductivity
Production processes in the chemical industry
n
Phase separation of product mixtures
n
Measuring the concentration of aggressive chemicals
n
247 x 47 mm
148 mm
approx. 1 kg
PFA, fully moulded
Chemraz ®
20 μS/cm ... 2000 mS/cm (compensated)
± (5 μS/cm + 0.5 % of measured value) at T < 100
°C
± (10 μS/cm + 0.5 % of measured value) at T <
100 °C
≤ 0.5 % of the measured value
1.98 cm -1 ± 5%
PT 100, Class A, fully moulded
0 ... 100 °C
Technical data
63
