MONTAGE DER DUSCHE

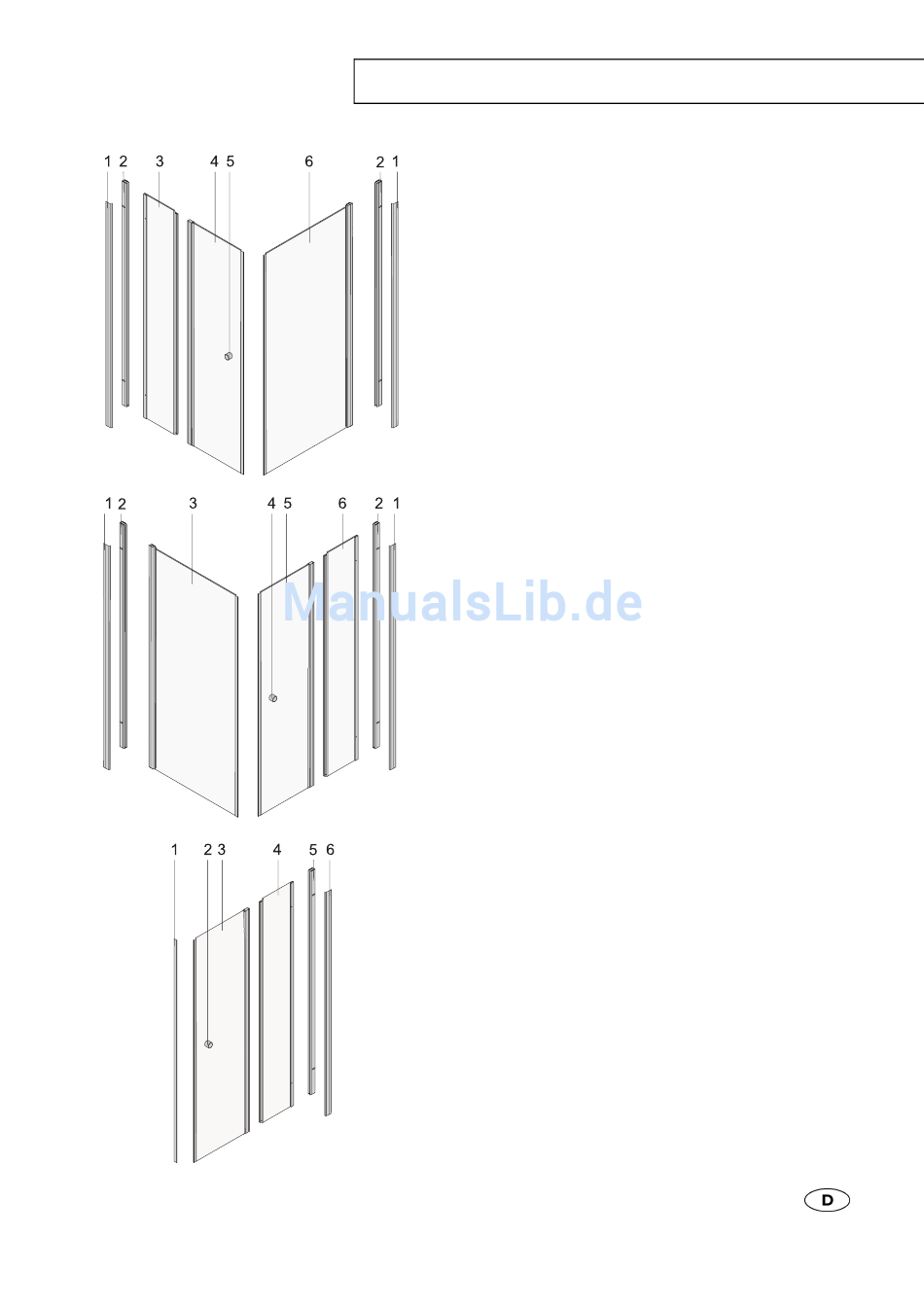

Legende Seiteneinstieg links:
1. Clipsprofil
2. Wandprofil
3. Festteil (mit vormontiertem Drehprofil und Anschlussprofil)
4. Tür (mit vormontiertem Drehprofil)
5. Griff
6. Festteil (mit vormontiertem Anschlussprofil)
Legende Seiteneinstieg rechts:
1. Clipsprofil
2. Wandprofil
3. Festteil (mit vormontiertem Anschlussprofil)
4. Griff
5. Tür (mit vormontiertem Drehprofil)
6. Festteil (mit vormontiertem Drehprofil und Anschlussprofil)
Legende Nische rechts:
1. Magnetträgerprofil
2. Griff
3. Tür (mit vormontiertem Drehprofil)
4. Festteil (mit vormontiertem Drehprofil und Anschlussprofil)
5. Wandprofil
6. Clipsprofil
