Remote START/STOP

Use of the remote START/STOP is optional. It can be used to start the pump in
any mode by closing the input. In dispense or copy modes, only a momentary
remote START/STOP closure is needed to start or stop a dispense or copy. In mA
or V modes, there must also be a non-zero signal present. Once the remote
START/STOP has been closed to start the pump, opening it will stop the pump. In
mA and V modes, it is best to wire your START/STOP contacts in series with the
mA or V control signal to insure the pump will always be off when the
START/STOP contacts are open.

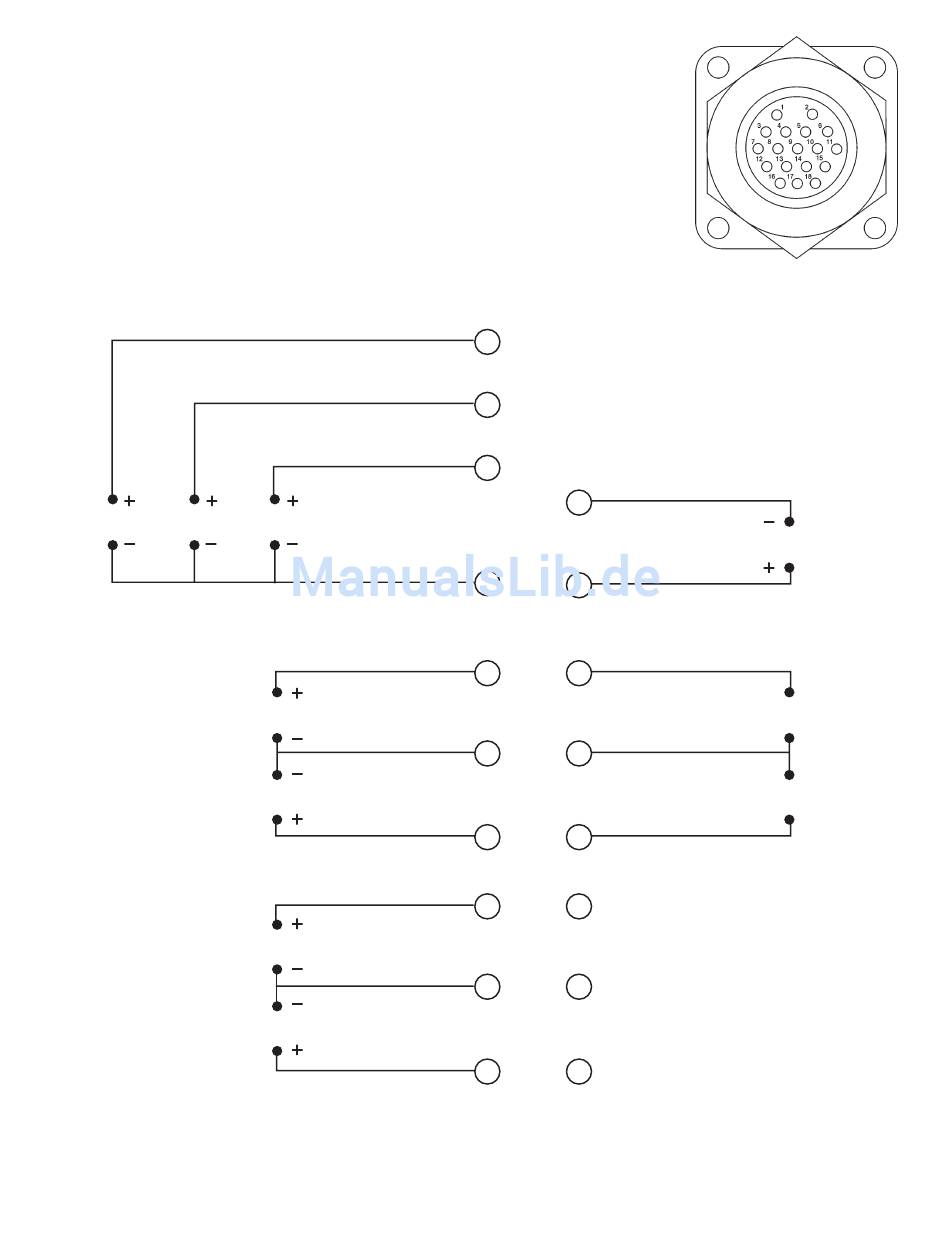

PRIME CW/CCW
RED/YELLOW
GREEN
START/STOP
YELLOW
INPUT
0-20mA; 4-20mA
ORANGE
INPUT
0-10V
BLACK
BROWN
OUTPUT
0-20mA; 4-20mA
VIOLET
OUTPUT
0-10V
14
NOTE:
BLUE
6
4
10
8
12
WHITE
3 11
5 13
1 15
7 16
9 17
RED
2 18
5
Colors are those of Remote Cable,
Catalog number 77300-32.
GREY
TACH OUTPUT
TAN
PINK
MOTOR RUNNING
N.O. CONTACT
RED/GREEN
MOTOR RUNNING
N.C. CONTACT
RED/BLACK
N.C.
N.C.
N.C.
