1-8 Rack Installation Guide



  &   !    !       !
               !
       "

   %  !    # $

1. Slide the back portion of the bracket to its widest opening and place the mount-
ing bracket into the rack, with the bottom of the bracket at the marks you made

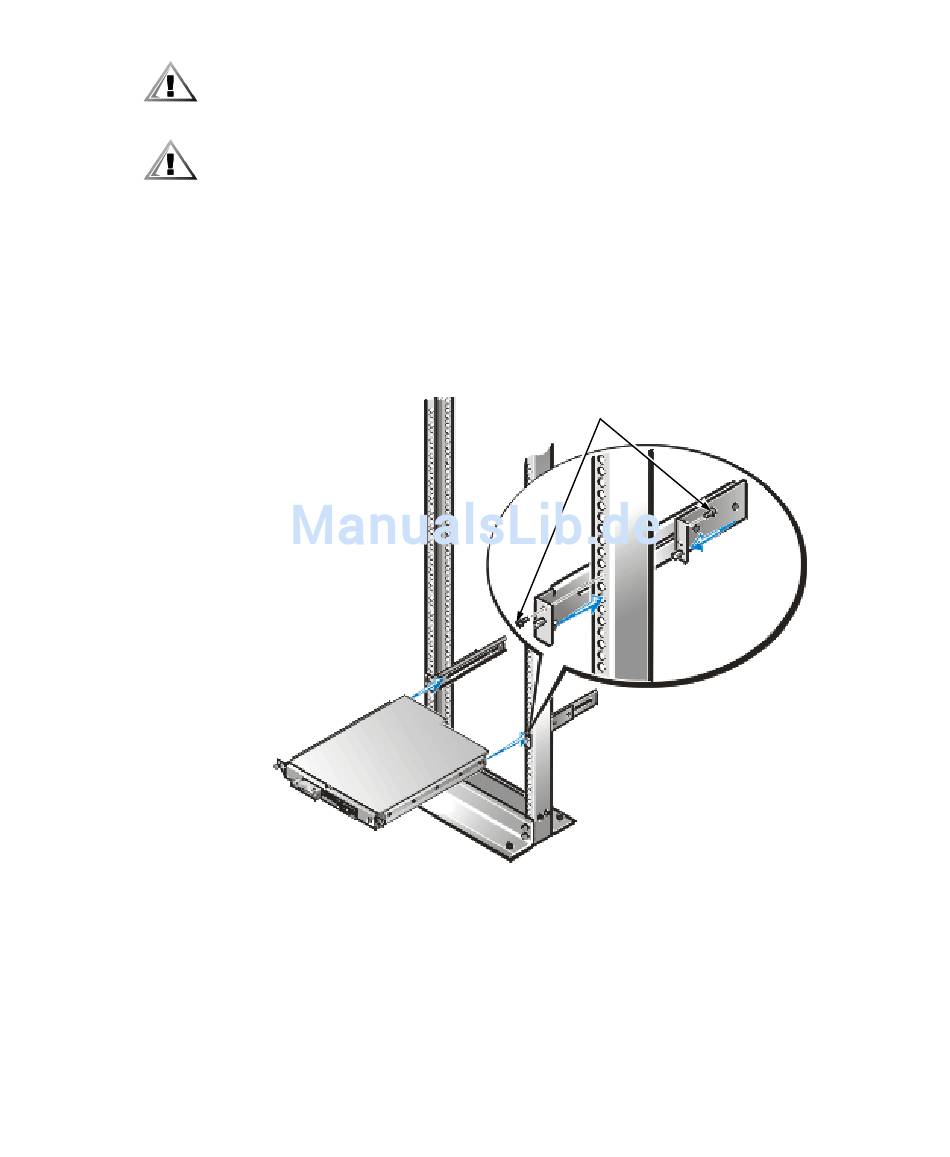

earlier (see Figure 1-6).
2. Slide the back part of the bracket toward the front, with the pins entering the
lower screw holes in the rack, at the marks you made earlier. Secure the bracket
front and back to the rack with a 12-24 x 0.5-inch screw.
Repeat this step to install the remaining bracket on the other side of the rack.

 & ' #(#
12-24 x 0.5 inch screws (4)
