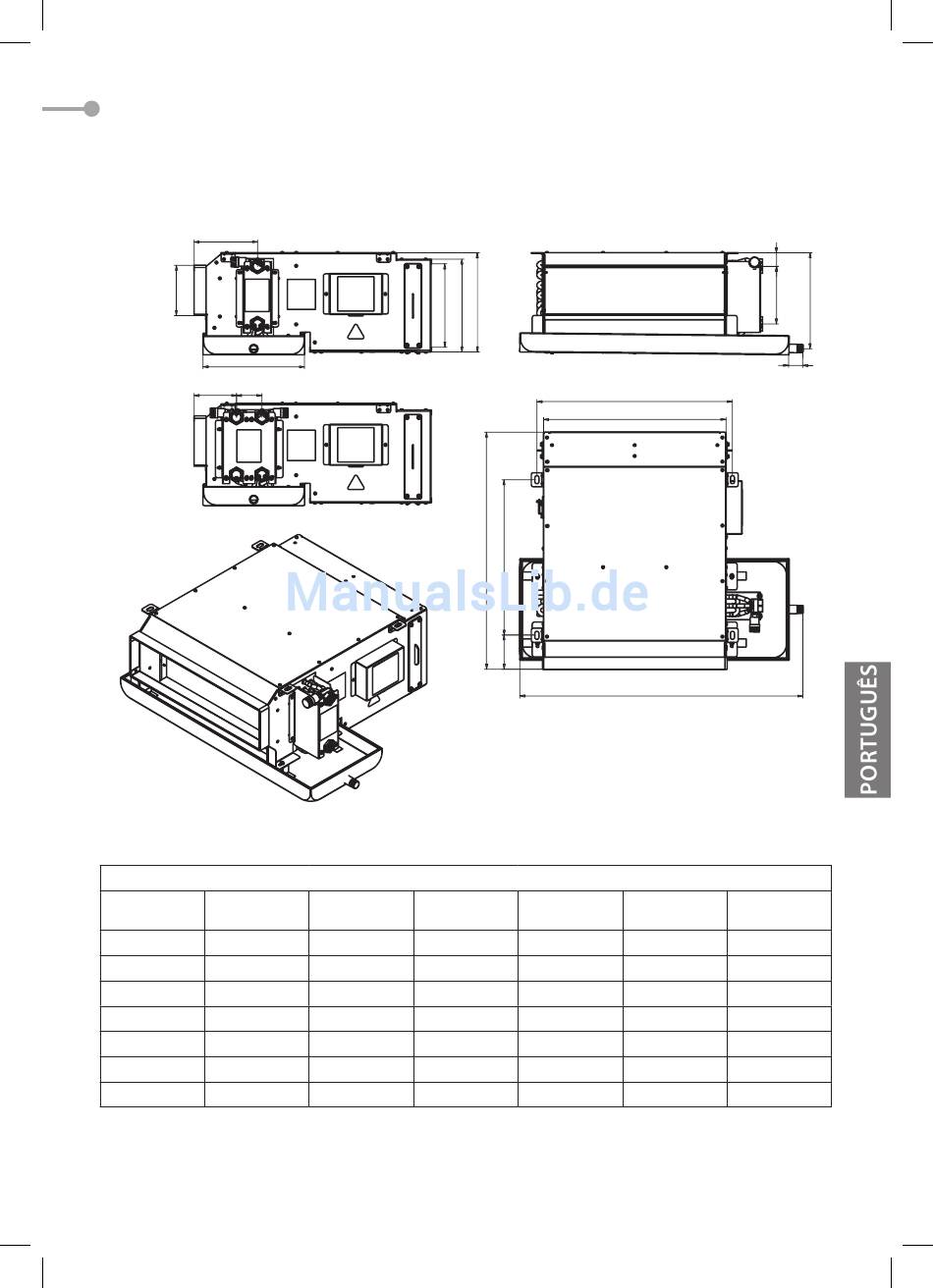

2. Dimensões
157, 5
252
105 63
Modelo A
FWE02C5(T/F)V1B 454
FWE03C5(T/F)V1B 629
FWE04C5(T/F)V1B 759
FWE06C5(T/F)V1B 959
FWE07C5(T/F)V1B 1209
FWE08C5(T/F)V1B 1309
FWE10C5(T/F)V1B 1569
DIMENSÕES (mm)
B C
486 705
661 875
791 1005
991 1205
1241 1455
1341 1555
1601 1815
133
B
A
C
Entrada Agua Saida agua
R 3 / 4" R 3 / 4"
R 3 / 4" R 3 / 4"
R 3 / 4" R 3 / 4"
R 3 / 4" R 3 / 4"
R 3 / 4" R 3 / 4"
R 3 / 4" R 3 / 4"
R 3 / 4" R 3 / 4"
Saida Placa de
Drenagem
R 3 / 4"
R 3 / 4"
R 3 / 4"
R 3 / 4"
R 3 / 4"
R 3 / 4"
R 3 / 4"
