GB
Type 1
AUTOMATION SYSTEM WITH 2 MOTORS, WITHOUT LIMIT SWITCHES

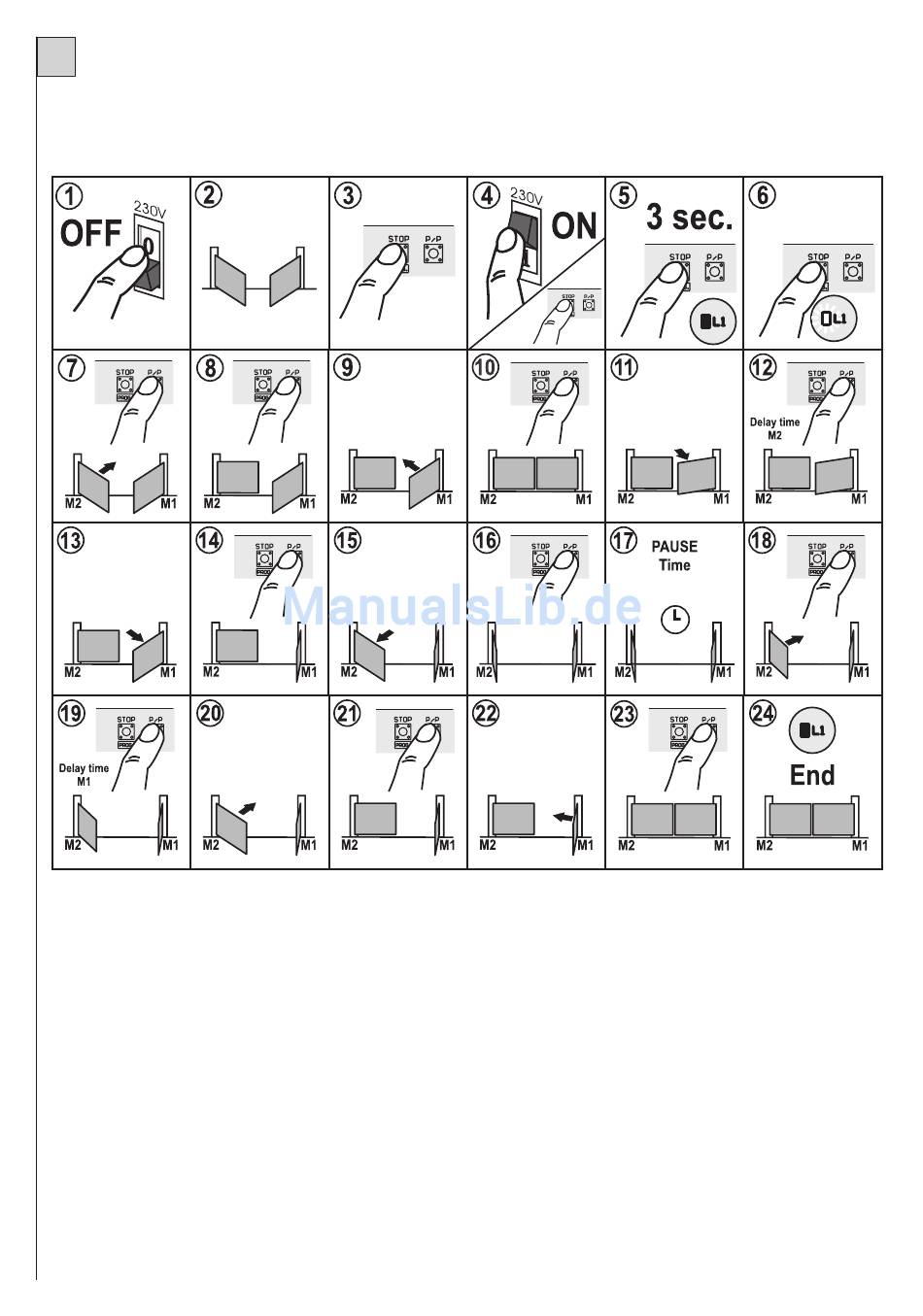

Programming:
1 - Cut off the power supply to the control unit.
2 - Position the gate halfway along its course of travel
3 - Press the STOP/PROG key (det. 19 of fig.1)
4, 5 and 6 - Power the control unit keeping the STOP/PROG key pressed until the LED L1 (det. 3 of fig. 1)
lights up.
7 - Press the button P/P (det. 18 of fig. 1); the motor M2 (leaf without electric lock) starts to close the gate
(if the motor turns in the reverse direction, cut off the power supply, invert the phases of the motor and
repeat the procedure).
8 and 9 - Upon arrival at the gate stop, press the button P/P; the motor M2 stops and the motor M1 (leaf with
electric lock) automatically starts to close the gate.
10 and 11- When the gate hits stop, press the button P/P; the motor M1 stops and then automatically restarts
to open the gate.
12 - The required interval between opening of the two leaves must be selected during this movement. To set
the delay time, press the button P/P when the leaf connected to motor M1 has reached the point in which
the leaf connected to motor M2 should start moving.
