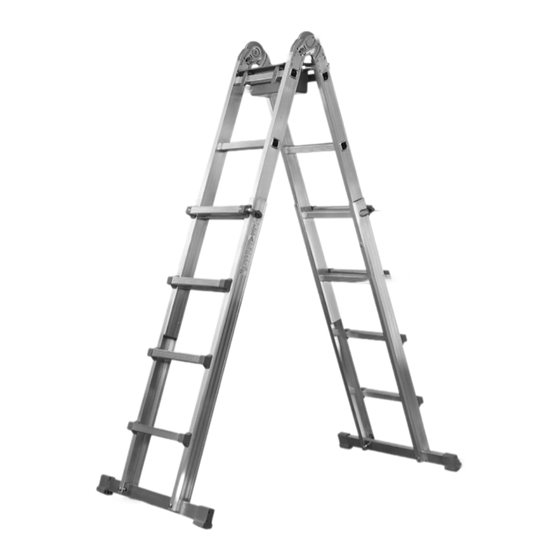

Multi-Purpose Ladder
Familiarise yourself with the product before using it for the first
time. In addition please refer carefully to the operating instructions
below and the safety advice. Use the product only as described
and for the indicated purpose. Keep these instructions in a safe place. If you
pass the product on to anyone else, please ensure that you also pass on all
the documentation.
Intended use
The product is designed for use outdoors. Any use other than that described
or any modification of the product is not permissible and may result in injury
and / or damage to the product. The manufacturer is not liable for damage
caused by improper use. The product is not intended for commercial use.
Description of parts
Ladder frame
Ladder hinge
Release lever
Blocking device
Plastic foot
Base bar
Ladder stringer
Storage tray
Technical data
approx. 35 x 127 x 21 cm (W x H x D)
Max. overall length:
approx. 4.17 m
Max. load:
150 kg
Aluminium, steel, plastic
Scope of delivery
1 x Ladder frame
2 x Base bar
4 x Screw
4 x Washer
1 x Storage tray
1 x Directions for use
Safety instructions
General safety instructions
accIDenTS for InfanTS anD chILDren! Never
leave children unattended with the packaging material or the
product. The packaging material can cause danger of suffocation and
danger to life by strangulation. Children often underestimate the danger.
Always keep children away from this product. This product is not a toy.
B efore using the ladder, please observe the icons on the attached stickers.
You must strictly comply with them in order to avoid accidents.
Maximum total load 150 kg. The weight of the user plus tools
and other materials must not exceed 150 kg.
150 kg
71609_pow_Alu-Teleskopleiter_Content_LB7.indd 3
DanGer To LIfe anD rISk of
Introduction / Safety instructions
D o not try to repair a damaged ladder yourself. Always have a
professional carry out any repairs.
B e particularly careful if there is any wind, rain or frost.
K eep the ladder clean and remove any dirt. Keep the ladder try to
avoid any slippage or toppling over.
Safety instructions with regard to setting
up the ladder
B efore using it, check all parts of the ladder. Do not use the ladder if any
parts are missing, damaged or worn.
D o not use any attachments, components or accessories that have not
been expressly approved for this ladder.
C heck all blocking devices
. Before using the ladder, make sure that
all blocking devices
are locked in place.
O nly set the ladder up on a dry and firm subsurface. Never try to
increase the working height by placing the ladder on other objects.
D o not use the ladder on slippery surfaces.
m When using the ladder on surfaces which are not at the same level,
please ensure that the ladder is set up at the correct angle (as shown
in fig. B).
D o not try to turn part of a ladder when the ladder has not been
completely unlocked.
N ever try to operate the release lever
is jammed, it has to be released. To do so, lift the ladder part a
little and then operate the release lever
D o not stand on the ladder when releasing a blocking device
D o not pull on a blocking device
yourself or damage the ladder. Please note that such damage is not
covered by the guaranty / warranty.
m cauTIon! rISk of cruShInG! You must be particularly careful
when extending and folding up the ladder. Keep away from moving
parts and the blocking devices
D o not place the ladder in front of doors that have not been locked.
D o not use the ladder as a bridging structure.
M ake sure that all plastic feet
B e particularly careful when you set the ladder up on protective film,
a carpet or other protective subsurfaces. The plastic feet
have enough grip and may, therefore, slip.
T he use of frame attachments is prohibited for this ladder.
a ttention! Metal is an electrical conductor! Make sure that no part
of the ladder is touching a live cable.
Safety instructions for using the ladder
DanGer To LIfe anD DanGer of accIDenTS! Do
not pull too hard on objects and do not exert any strong pressure on ob-
jects when you are on the ladder. This could make the ladder topple over
and could injure or kill you.
D o not use the ladder if you are under the influence of alcohol, drugs or
strong medication. Do not use the ladder if you are ill or do not feel well.
D o not use the ladder if it is wet, damaged or if it has become slippery
because of water, ice or snow.
W ear non-slip footwear when using the ladder.
B e careful when getting on or off the ladder.
A lways hold on tightly to the ladder and always face the ladder when
getting on and off the ladder.
D o not try to change the location of the ladder when you are standing
on it. Get off the ladder first and then change the position of the ladder.
Then get onto the ladder again.
D o not lean out too far when you are on the ladder. Keep the centre of
your body between the ladder stringers
the same rung
M ake sure that no-one is under the ladder when it is in use.
T his ladder is not a toy and is not suitable for use by children. Make sure
that the ladder cannot be used by children. Do not leave the ladder
unattended after you have set it up.
D o not use the top three rungs of the ladder as a platform if you are
with strong force. If the release
with strong force. You may injure
are firmly on the floor.
may not
and stand with both feet on
15.11.10 11:51
