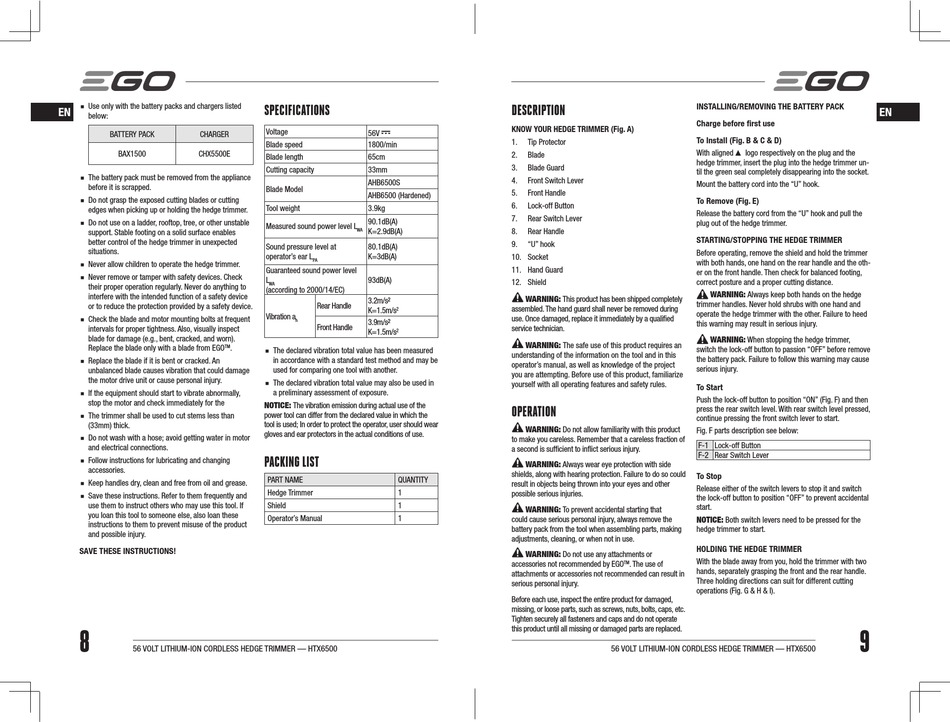

Specifications; Packing List; Operation - EGO HTX6500 Originalanleitung

◾
Use only with the battery packs and chargers listed
EN
below:
BATTERY PACK CHARGER
BAX1500 CHX5500E
◾
The battery pack must be removed from the appliance
before it is scrapped.
◾
Do not grasp the exposed cutting blades or cutting
edges when picking up or holding the hedge trimmer.
◾
Do not use on a ladder, rooftop, tree, or other unstable
support. Stable footing on a solid surface enables
better control of the hedge trimmer in unexpected
situations.
◾
Never allow children to operate the hedge trimmer.
◾
Never remove or tamper with safety devices. Check
their proper operation regularly. Never do anything to
interfere with the intended function of a safety device
or to reduce the protection provided by a safety device.
◾
Check the blade and motor mounting bolts at frequent
intervals for proper tightness. Also, visually inspect
blade for damage (e.g., bent, cracked, and worn).
Replace the blade only with a blade from EGO .
TM
◾
Replace the blade if it is bent or cracked. An
unbalanced blade causes vibration that could damage
the motor drive unit or cause personal injury.
◾
If the equipment should start to vibrate abnormally,
stop the motor and check immediately for the
◾
The trimmer shall be used to cut stems less than
(33mm) thick.
◾
Do not wash with a hose; avoid getting water in motor
and electrical connections.
◾
Follow instructions for lubricating and changing
accessories.
◾
Keep handles dry, clean and free from oil and grease.
◾
Save these instructions. Refer to them frequently and
use them to instruct others who may use this tool. If
you loan this tool to someone else, also loan these
instructions to them to prevent misuse of the product
and possible injury.
SAVE THESE INSTRUCTIONS!
8
56 VOLT LITHIUM-ION CORDLESS HEDGE TRIMMER — HTX6500

SPECIFICATIONS

Voltage
56V
Blade speed 1800/min
Blade length 65cm
Cutting capacity 33mm
AHB6500S
Blade Model
AHB6500 (Hardened)
Tool weight 3.9kg
90.1dB(A)
Measured sound power level L
K=2.9dB(A)
WA
Sound pressure level at 80.1dB(A)
operator's ear L K=3dB(A)
PA
Guaranteed sound power level
L 93dB(A)
WA
(according to 2000/14/EC)
3.2m/s²
Rear Handle
K=1.5m/s 2
Vibration a
h 3.9m/s²
Front Handle
K=1.5m/s
2
◾
The declared vibration total value has been measured
in accordance with a standard test method and may be
used for comparing one tool with another.
◾
The declared vibration total value may also be used in
a preliminary assessment of exposure.
NOTICE:
The vibration emission during actual use of the
power tool can differ from the declared value in which the
tool is used; In order to protect the operator, user should wear
gloves and ear protectors in the actual conditions of use.

PACKING LIST

PART NAME QUANTITY
Hedge Trimmer 1
Shield 1
Operator's Manual 1
DESCRIPTION
KNOW YOUR HEDGE TRIMMER (Fig. A)
1. Tip Protector
2. Blade
3. Blade Guard
4. Front Switch Lever
5. Front Handle
6. Lock-off Button
7. Rear Switch Lever
8. Rear Handle
9. "U" hook
10. Socket
11. Hand Guard
12. Shield
WARNING: This product has been shipped completely
assembled. The hand guard shall never be removed during
use. Once damaged, replace it immediately by a qualified
service technician.
WARNING: The safe use of this product requires an
understanding of the information on the tool and in this
operator's manual, as well as knowledge of the project
you are attempting. Before use of this product, familiarize
yourself with all operating features and safety rules.

OPERATION

WARNING: Do not allow familiarity with this product
to make you careless. Remember that a careless fraction of
a second is sufficient to inflict serious injury.
WARNING:
Always wear eye protection with side
shields, along with hearing protection. Failure to do so could
result in objects being thrown into your eyes and other
possible serious injuries.
WARNING:
To prevent accidental starting that
could cause serious personal injury, always remove the
battery pack from the tool when assembling parts, making
adjustments, cleaning, or when not in use.
WARNING: Do not use any attachments or
accessories not recommended by EGO . The use of
TM
attachments or accessories not recommended can result in
serious personal injury.
Before each use, inspect the entire product for damaged,
missing, or loose parts, such as screws, nuts, bolts, caps, etc.
Tighten securely all fasteners and caps and do not operate
this product until all missing or damaged parts are replaced.
56 VOLT LITHIUM-ION CORDLESS HEDGE TRIMMER — HTX6500
INSTALLING/REMOVING THE BATTERY PACK
Charge before first use
To Install (Fig. B & C & D)
With aligned ▲ logo respectively on the plug and the
hedge trimmer, insert the plug into the hedge trimmer un-
til the green seal completely disappearing into the socket.
Mount the battery cord into the "U" hook.
To Remove (Fig. E)
Release the battery cord from the "U" hook and pull the
plug out of the hedge trimmer.
STARTING/STOPPING THE HEDGE TRIMMER
Before operating, remove the shield and hold the trimmer
with both hands, one hand on the rear handle and the oth-
er on the front handle. Then check for balanced footing,
correct posture and a proper cutting distance.
WARNING:
Always keep both hands on the hedge
trimmer handles. Never hold shrubs with one hand and
operate the hedge trimmer with the other. Failure to heed
this warning may result in serious injury.
WARNING:
When stopping the hedge trimmer,
switch the lock-off button to passion "OFF" before remove
the battery pack. Failure to follow this warning may cause
serious injury.
To Start
Push the lock-off button to position "ON" (Fig. F) and then
press the rear switch level. With rear switch level pressed,
continue pressing the front switch lever to start.
Fig. F parts description see below:
F-1 Lock-off Button
F-2 Rear Switch Lever
To Stop
Release either of the switch levers to stop it and switch
the lock-off button to position "OFF" to prevent accidental
start.
NOTICE:
Both switch levers need to be pressed for the
hedge trimmer to start.
HOLDING THE HEDGE TRIMMER
With the blade away from you, hold the trimmer with two
hands, separately grasping the front and the rear handle.
Three holding directions can suit for different cutting
operations (Fig. G & H & I).
9
