CONTROLS AND FUNCTIONS
1. POWER CONNECTOR – Plug in power adapter here.
2. POWER SWITCH – Press this button to switch the power on/off.
3. MASTER OUTPUT (USB PORT INPUT) – Used to connect a computer.
USB Terminal: After hooking up your computer with the USB connections, your computer will detect them
as an external sound card (USB Audio Codec). You may record the Master output signal on your computer
using the USB 2.0 connections.
NOTE:
(1) USB cable limit within 3m.
(2) The sent Master Output Signal is not influenced by the operation of the master volume control. To use
the USB connections, please also refer to the operation manual of your computer and the recording
software used.
4. MASTER OUTPUT (RCA JACKS) – Unbalanced RCA connectors controlled by the Master level.
5. LINE/PHONO INPUT JACKS – These jacks are used to connect a turntable or line level unit.
6. LN/PH SWITCHES – These switches are used to change the mode of input jacks. When connecting
turntable (with phono output) to these jacks, be sure the switch is at the PHONO position. And when using
line level input devices, be sure the switch is at the LINE position. Always be sure main power is shut off
before switching the LN/PH selector.
7. GND(GROUND TERMINAL)－Be sure to connect turntable ground leads to either or both of the two
available ground terminals. This will reduce the humming and popping noises associated with magnetic
phono cartridges.
CONTROLS AND FUNCTIONS
17
16
15
1. CUE INDICATOR – This indicator will glow when the device is in CUE mode and will flash every time a new
CUE POINT is set.
2. FOLDER INDICATOR – Indicates the number of the currently playing folder.
3. TIME BAR INDICATOR –Shows either time remaining or elapsed depending on the setting of the TIME
BUTTON. This bar will begin to flash shortly before the end of a track. The flashing bar is a great visual
reminder a track is about to end regardless of which time mode the unit is.
4. BPM STATUS – This will indicate that the AUTO BPM counter is active.
1 2 3
1
3
2
14 13
4 5 6
4
12
11
6

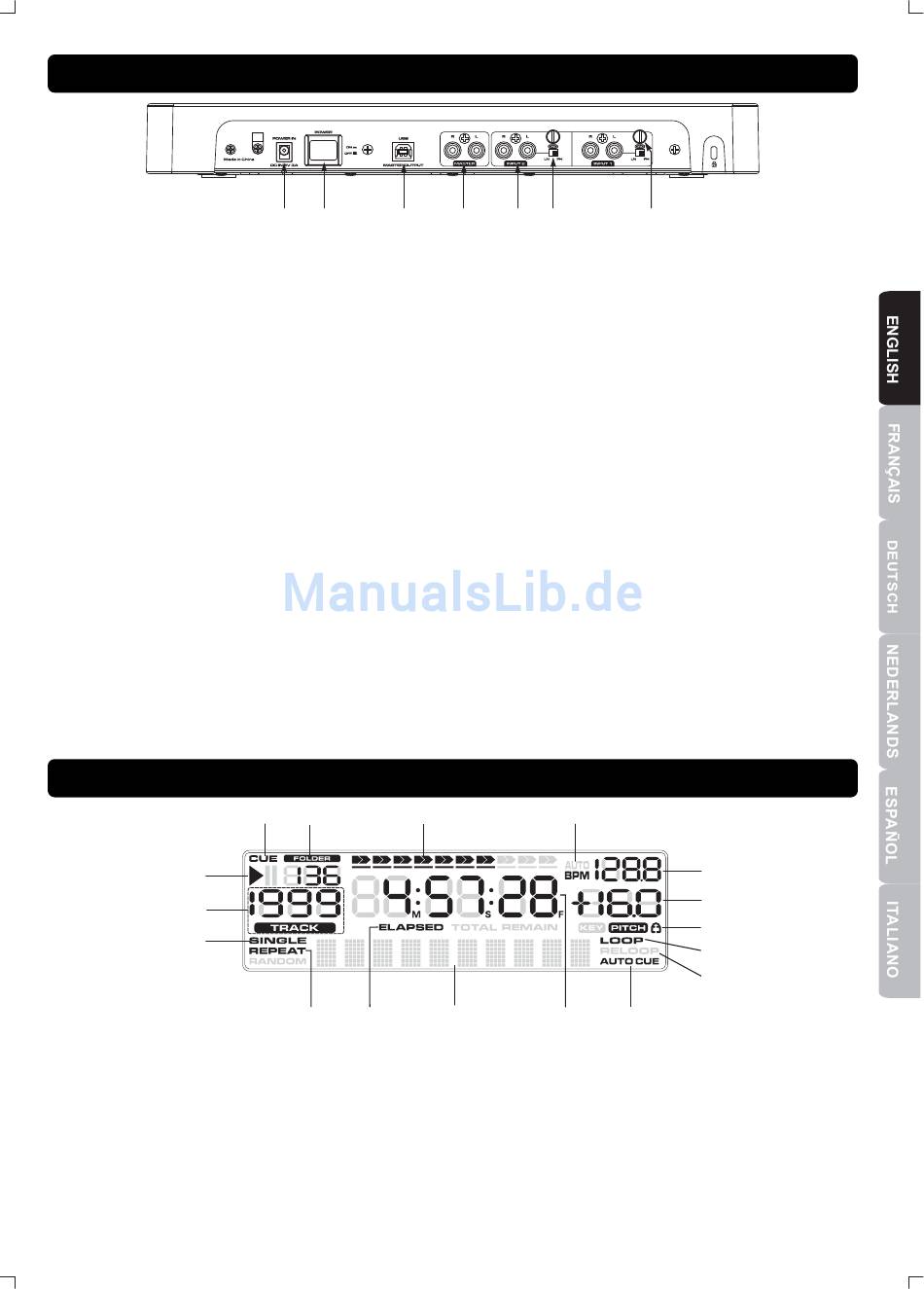

REAR PANEL

7
LCD DISPLAY
5
6
7
8
9
10
