CONTROLS AND FUNCTIONS
22. CUE BUTTON – Pressing the CUE button during playback immediately pauses playback and returns the
track to the last set cue point. The CUE indicator in the LCD will glow when the unit is in cue mode and the
indicator will also flash every time a new CUE POINT is set. The CUE button can be held down to
momentarily play the music. When you release the CUE button it instantly returns to the CUE POINT. You
can also tap the CUE button to create a STUTTER EFFECT.
23. PLAY/PAUSE BUTTON – Each press of the PLAY/PAUSE BUTTON causes the operation to change from
play to pause or from pause to play. While in play mode the PLAY/PAUSE LED will glow and while in pause
mode the PLAY/PAUSE LED will flash.
24. MASTER VOLUME LEVEL INDICATORS – The dual LEVEL LED indicators are used to
show the channel input level. The meters will detail the pre-fader input level of both
channel 1 and 2. GAIN CONTROL knobs can be used to adjust the input level. To
prevent distortion, adjust the gain to avoid the level reaching red LEDs.
25. CHANNEL FADER – These faders are used to control the output signal of any source
assigned to its particular channel.
26. CROSSFADER CURVE CONTROL – The crossfader curve control is used to adjust the shape of the
crossfader curve from a quick cut for scratching or to a longer fading for mixing. Turning the knob in a
clockwise direction will cause the crossfader curve becomes "hard" (highly appropriate for cutting and
scratching); turning the knob in a counterclockwise direction will cause the crossfader curve becomes
"smooth"(highly appropriate for long running mixes).
27. CROSSFADER – This fader is used to blend the output signals of channels 1 and 2 together. When the
fader is in the full left position (channel 1), the output signal of channel 1 will be controlled by the master
volume control. The same fundamentals will apply for channel 2. Sliding the fader from one position to
another will vary the output signals of channels 1 and 2 respectively. When the crossfader is set in the
center position, the output signals of both the channels A and channels B will be even.
CONTROLS AND FUNCTIONS
1
1. MICROPHONE JACK – This jack is used to connect a microphone to the unit. Connect your microphone
via this 1/4 inch (6.3mm) jack. The volume output level for this microphone will be controlled by the MIC
LEVEL KNOB.
2. MICROPHONE VOLUME CONTROL – This knob is used to adjust the output volume of MICROPHONE.
Turning the knob in a clockwise direction will increase the volume level.
3. MICROPHONE TONE CONTROL – This knob is used to adjust the TONE of MICROPHONE.
4. CUE PAN FADER – Used to preview channel audio to your headphones.
5. MONITOR TONE CONTROL – This knob is used to adjust the TONE of headphone.
6. MONITOR VOLUME CONTROL – This knob is used to adjust the headphone volume output level. Turn
the knob in a clockwise direction to increase the headphone volume.
7. MONITOR JACK – This jack is used to connect your headphones to the unit allowing you to monitor the cue
source. Always be sure the CUE LEVEL VOLUME is set to minimum before you put the headphones on.
2 3 4
5
TOP PANEL
6dB
3dB
0dB
-5dB
-10dB

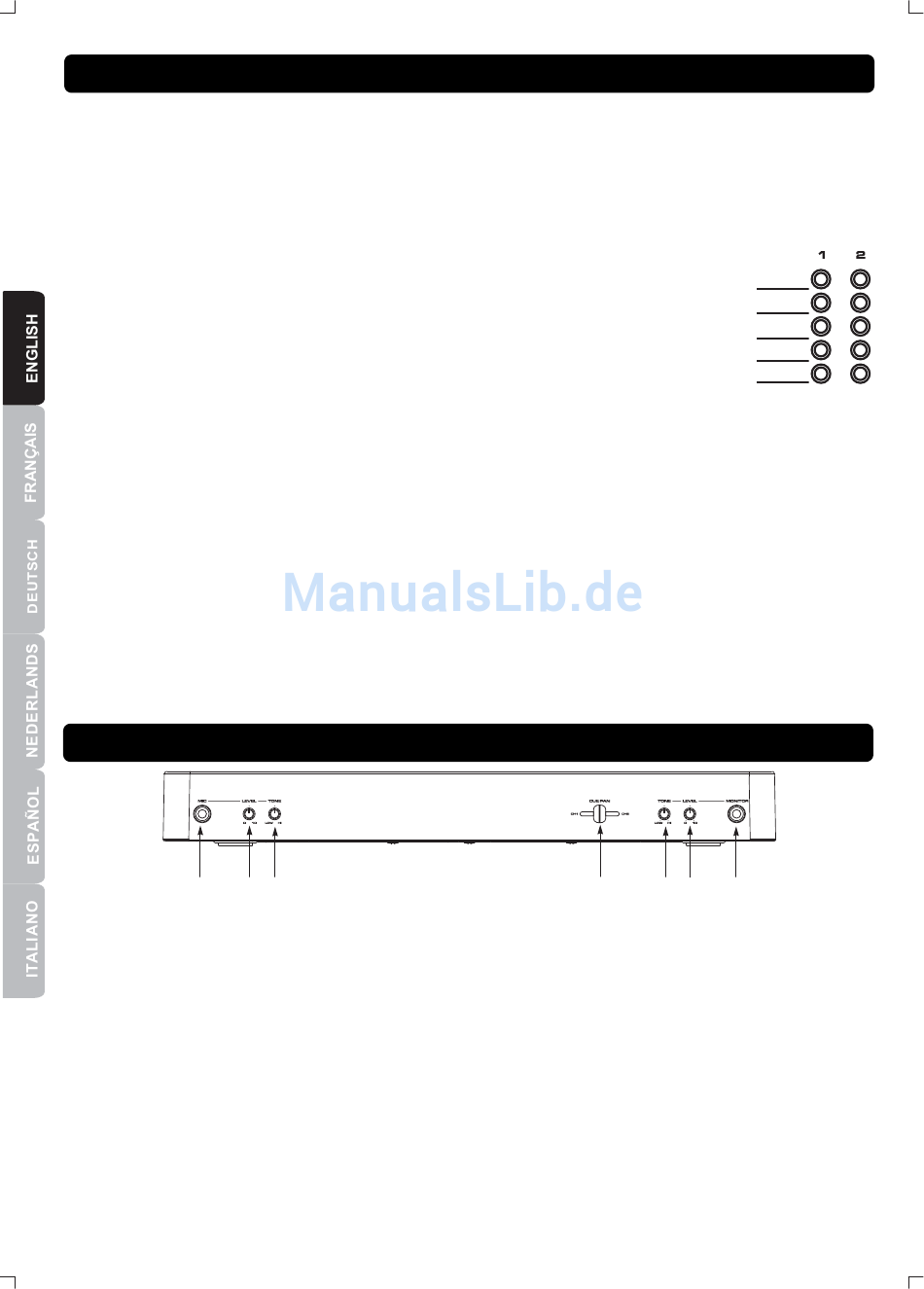

FRONT PANEL

5 6 7
