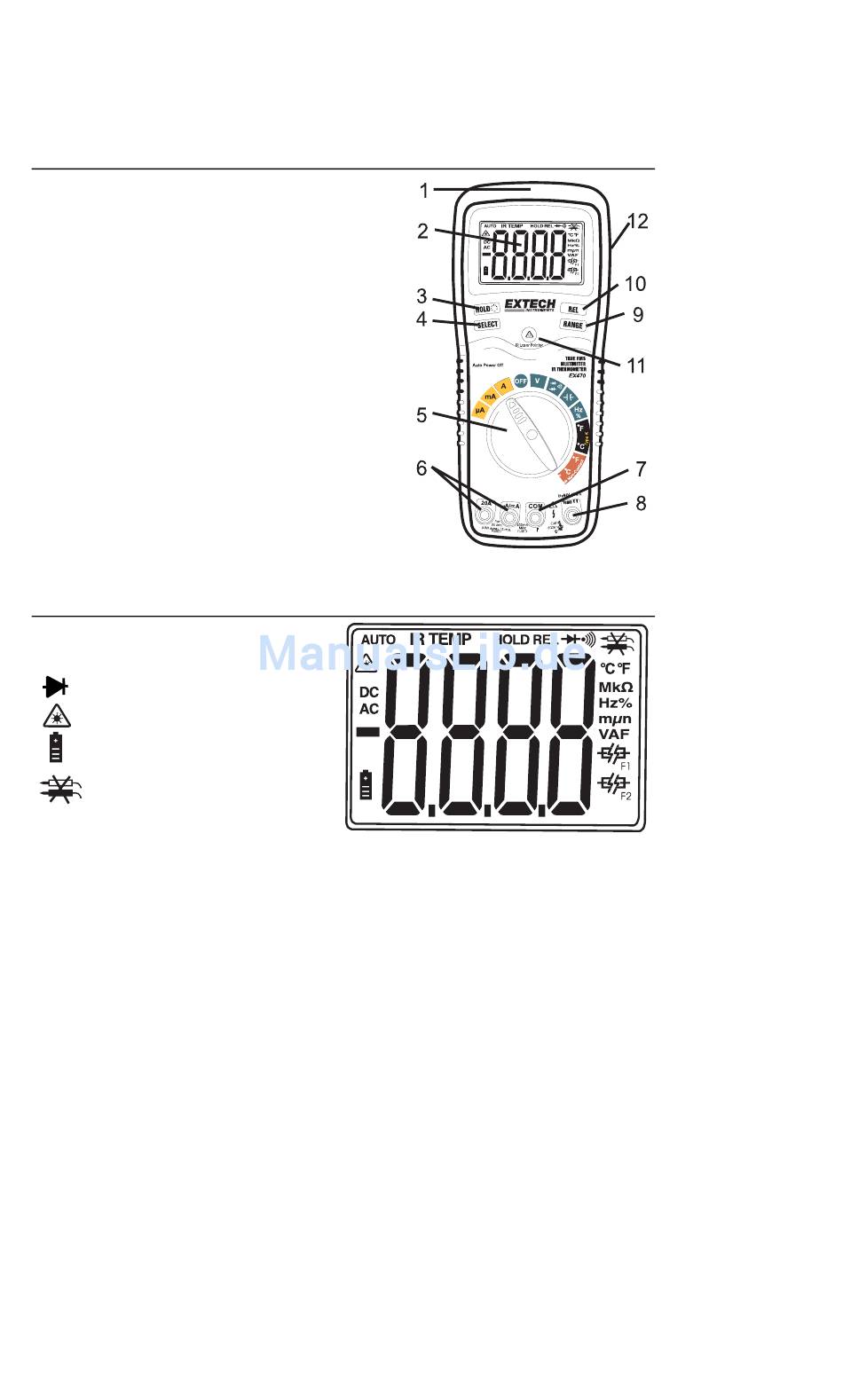

Controls and Jacks
1. IR Thermometer and laser pointer
2. 4000 count LCD display
3. HOLD and Backlight button
4. SELECT button
5. Function switch
6. mA, uA and A input jacks
7. COM input jack
8. Positive input jack
9. RANGE hold button
10. RELATIVE button
11. Laser pointer button
12. Protective holster
Note: Tilt stand and battery compartment are on rear of unit.
Symbols and Annunciators
•)))
Continuity
Diode test
Laser pointer
Battery status
Test lead connection
error
n
nano (10
µ
micro (10
-3
m
milli (10
3
k
kilo (10
) (ohms)
M
mega (10
Hz
Hertz (frequency)
%
Percent (duty ratio)
AC
Alternating current
DC
Direct current
ºF
Degrees Fahrenheit
-9
) (capacitance)
-6
) (amps, cap)
) (volts, amps)
6
) (ohms)
4
A
Amps
F
Farads (capacitance)
Ω
Ohms
V
Volts
REL
Relative
AUTO Autoranging
HOLD Display hold
ºC
Degrees Centigrade
V5.0
5/04
