H) 868 MHz reception test
The weather station should receive and display the outside area data within 5 minutes after being
put into operation. If they aren't displayed within 5 minutes after the basic setting or if the signal
reception in normal display mode is continuously jammed so that the outside area display only
shows "- - -" then please check the following:
The distance of weather station and outside transmitters to sources of interference such as
computer monitors or television sets should be at least 1.5 - 2 meters.
Avoid placing the units directly against or in the vicinity of metal doors or window frames.
The use of other devices working on the same frequency (868 MHz) such as headphones or
loudspeakers can prevent correct signal transmission.
Reception interference can also be caused by neighbours who operate devices working on the
same frequency (868 MHz).
If the 868 MHz signal is correctly transmitted and received, then the battery cases
of the weather station and outside transmitters should no longer be opened. The
batteries could thereby become disengaged from the contacts and thus bring about
an unwanted reset. If this should nonetheless occur, then all units have to be set
anew to avoid transmission problems (see "Basic setting" above).
The transmission range of the outside transmitter to the weather station in a free
field is about 100 meters. However, this depends on environmental conditions and
possible sources of interference. If reception is not possible despite consideration of
all the factors mentioned above, then all units have to be reset (see "Basic setting"
above).
4

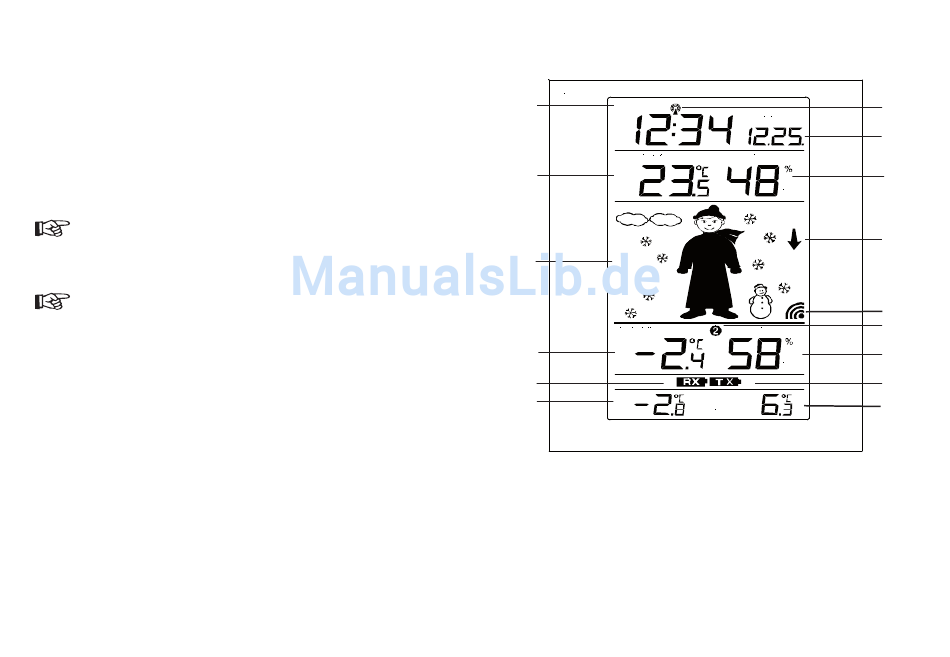

7.2. Display symbols

1
TIME
INDOOR
15
14
OUTDOOR
13
12
11
MIN
1 Time
2 DCF-reception symbol
 Date
4 Inside air humidity
5 Weather trend
6 Outside sensor
7 Channel number of the outside sensor
8 Outside air humidity
2
DATE
3
HUMIDITY
4
RH
5
6
7
HUMIDITY
8
RH
9
10
MAX
9 Battery indicator (sensor)
10 max. outside temperature (day)
11 max. inside temperature (day)
12 Battery level indicator (receiver)
1 Outside temperature
14 Weather forecast symbols
15 Inside temperature
5
