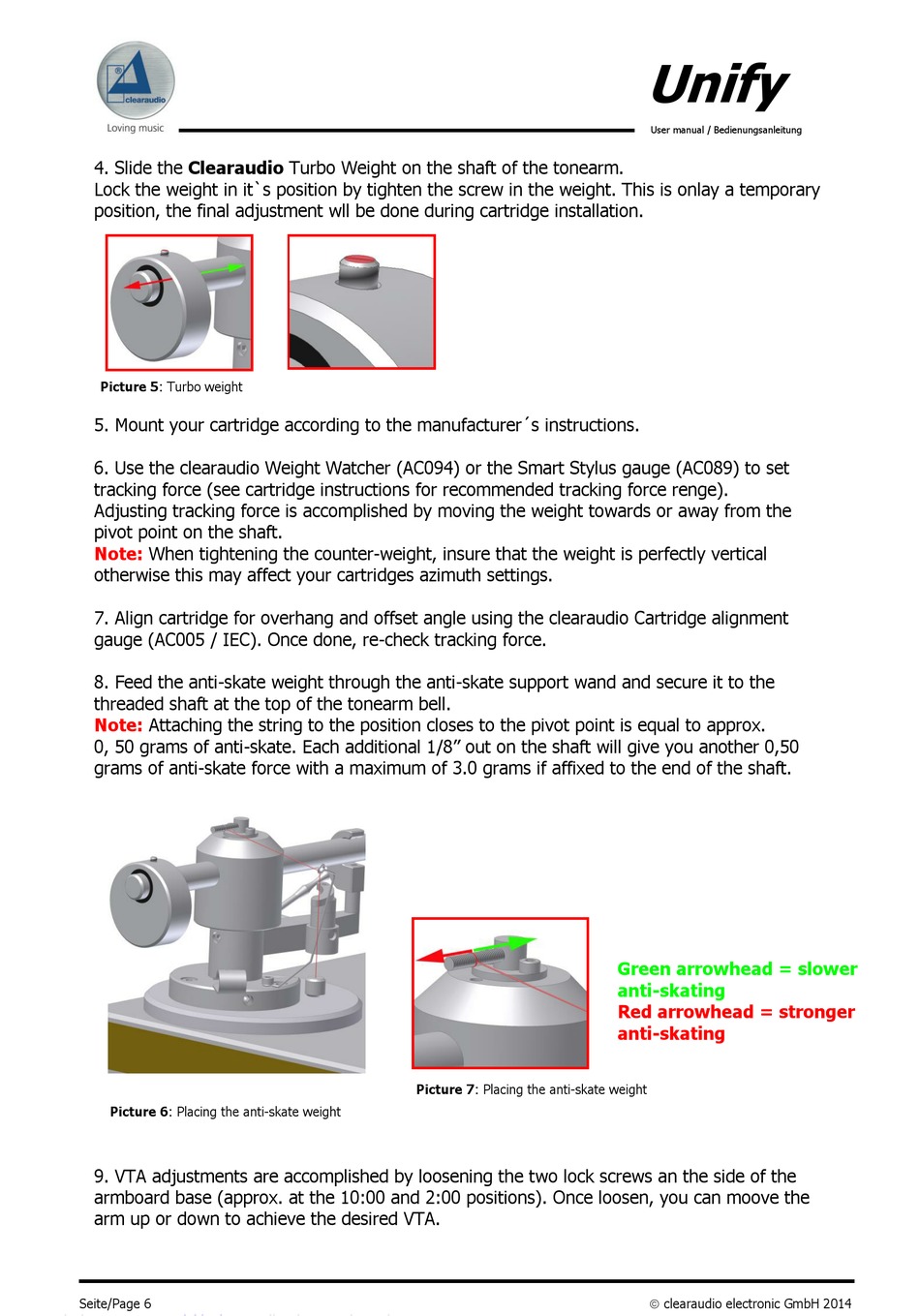

Clearaudio UNIFY Montageanleitung Seite 6

4. Slide the Clearaudio Turbo Weight on the shaft of the tonearm.
Lock the weight in it`s position by tighten the screw in the weight. This is onlay a temporary
position, the final adjustment wll be done during cartridge installation.
Picture 5: Turbo weight
5. Mount your cartridge according to the manufacturer´s instructions.
6. Use the clearaudio Weight Watcher (AC094) or the Smart Stylus gauge (AC089) to set
tracking force (see cartridge instructions for recommended tracking force renge).
Adjusting tracking force is accomplished by moving the weight towards or away from the
pivot point on the shaft.
Note: When tightening the counter-weight, insure that the weight is perfectly vertical
otherwise this may affect your cartridges azimuth settings.
7. Align cartridge for overhang and offset angle using the clearaudio Cartridge alignment
gauge (AC005 / IEC). Once done, re-check tracking force.
8. Feed the anti-skate weight through the anti-skate support wand and secure it to the
threaded shaft at the top of the tonearm bell.
Note: Attaching the string to the position closes to the pivot point is equal to approx.
0, 50 grams of anti-skate. Each additional 1/8" out on the shaft will give you another 0,50
grams of anti-skate force with a maximum of 3.0 grams if affixed to the end of the shaft.
Picture 6: Placing the anti-skate weight
9. VTA adjustments are accomplished by loosening the two lock screws an the side of the
armboard base (approx. at the 10:00 and 2:00 positions). Once loosen, you can moove the
arm up or down to achieve the desired VTA.
Seite/Page 6
Picture 7: Placing the anti-skate weight
Unify
User manual / Bedienungsanleitung
Green arrowhead = slower
anti-skating
Red arrowhead = stronger
anti-skating
