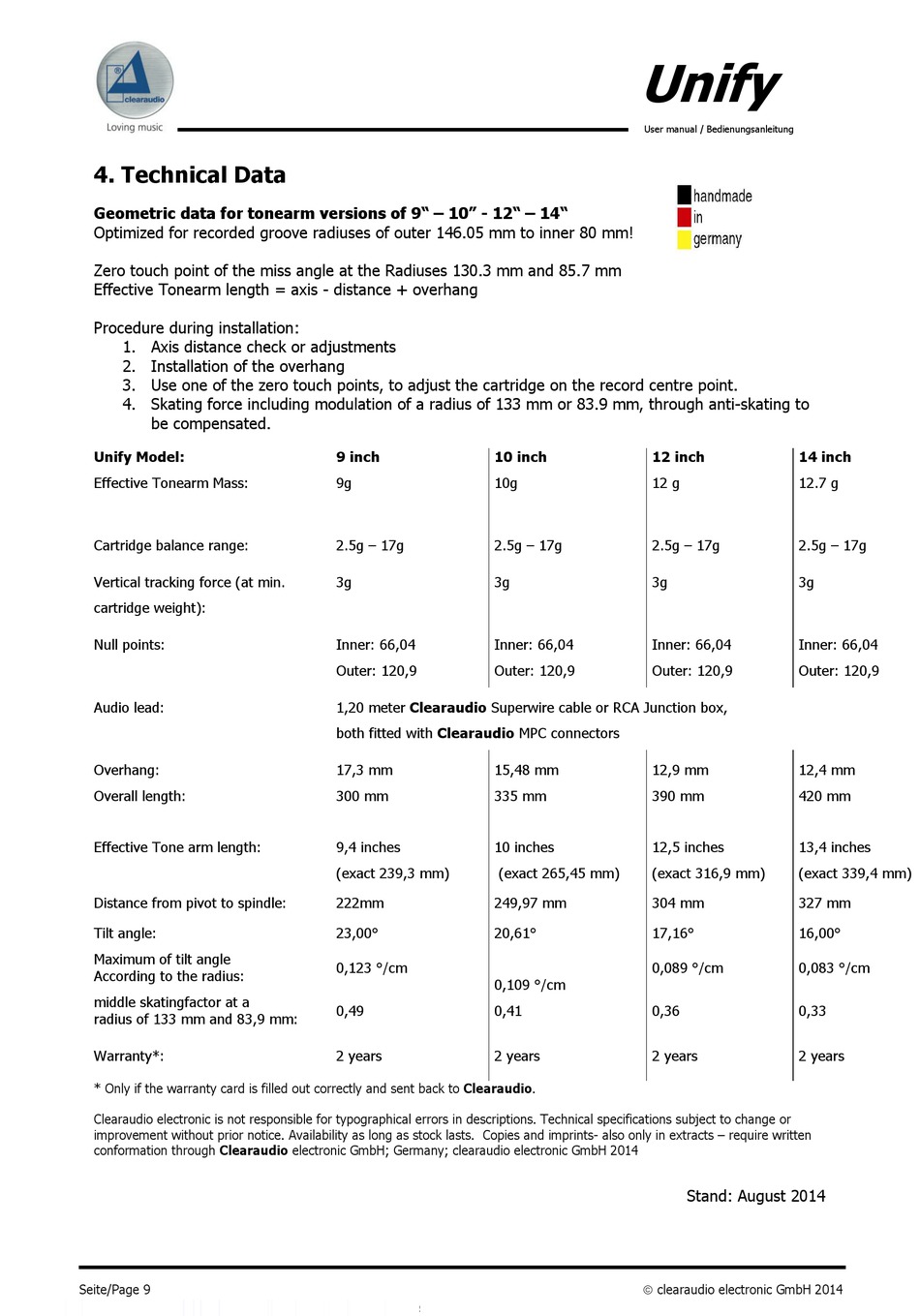

4. Technical Data

Geometric data for tonearm versions of 9" – 10" - 12" – 14"
Optimized for recorded groove radiuses of outer 146.05 mm to inner 80 mm!
Zero touch point of the miss angle at the Radiuses 130.3 mm and 85.7 mm
Effective Tonearm length = axis - distance + overhang
Procedure during installation:
1. Axis distance check or adjustments
2. Installation of the overhang
3. Use one of the zero touch points, to adjust the cartridge on the record centre point.
4. Skating force including modulation of a radius of 133 mm or 83.9 mm, through anti-skating to
be compensated.
Unify Model:
Effective Tonearm Mass:
Cartridge balance range:
Vertical tracking force (at min.
cartridge weight):
Null points:
Audio lead:
Overhang:
Overall length:
Effective Tone arm length:
Distance from pivot to spindle:
Tilt angle:
Maximum of tilt angle
According to the radius:
middle skatingfactor at a
radius of 133 mm and 83,9 mm:
Warranty*:
* Only if the warranty card is filled out correctly and sent back to Clearaudio.
Clearaudio electronic is not responsible for typographical errors in descriptions. Technical specifications subject to change or
improvement without prior notice. Availability as long as stock lasts. Copies and imprints- also only in extracts – require written
conformation through Clearaudio electronic GmbH; Germany; clearaudio electronic GmbH 2014
Seite/Page 9
9 inch 10 inch
9g 10g
2.5g – 17g 2.5g – 17g
3g 3g
Inner: 66,04 Inner: 66,04
Äußerer: 119.5
Outer: 120,9 Outer: 120,9
1,20 meter Clearaudio Superwire cable or RCA Junction box,
both fitted with Clearaudio MPC connectors
17,3 mm 15,48 mm
300 mm 335 mm
9,4 inches 10 inches
(exact 239,3 mm) (exact 265,45 mm)
222mm 249,97 mm
23,00° 20,61°
0,123 °/cm
0,109 °/cm
0,49 0,41
2 years 2 years
Unify
User manual / Bedienungsanleitung
12 inch 14 inch
12 g 12.7 g
2.5g – 17g 2.5g – 17g
3g 3g
Inner: 66,04 Inner: 66,04
Outer: 120,9 Outer: 120,9
12,9 mm 12,4 mm
390 mm 420 mm
12,5 inches 13,4 inches
(exact 316,9 mm) (exact 339,4 mm)
304 mm 327 mm
17,16° 16,00°
0,089 °/cm 0,083 °/cm
0,36 0,33
2 years 2 years
Stand: August 2014
 clearaudio electronic GmbH 2014
