2.5 Installing a plug on the power cord
Install a plug like described in chapter 2.2.
Connected load: Voltage 230Volts, frequence 50Hz, power 1700 VA (7,4Amps)
Use a power supply of at least 1800VA (8Amps) per unit, as the fixture need more power
during the process of powering up.
Connect the fixture to a propper installed grounded system only. If any doubts on the
electrical installations occur, consult a qualified electrician.
In case of damages occuring due to a not propper installed electrical system, warranty
claims will be invalidated.
Don´t use fixtures when top cover is not fixed propperly. Contact with electronical parts
can result in risk for life.
Connect fixture only after assuring that the electrical installation fits your demands. If any
doubts occur consult a qualified technican!

3. Control panel

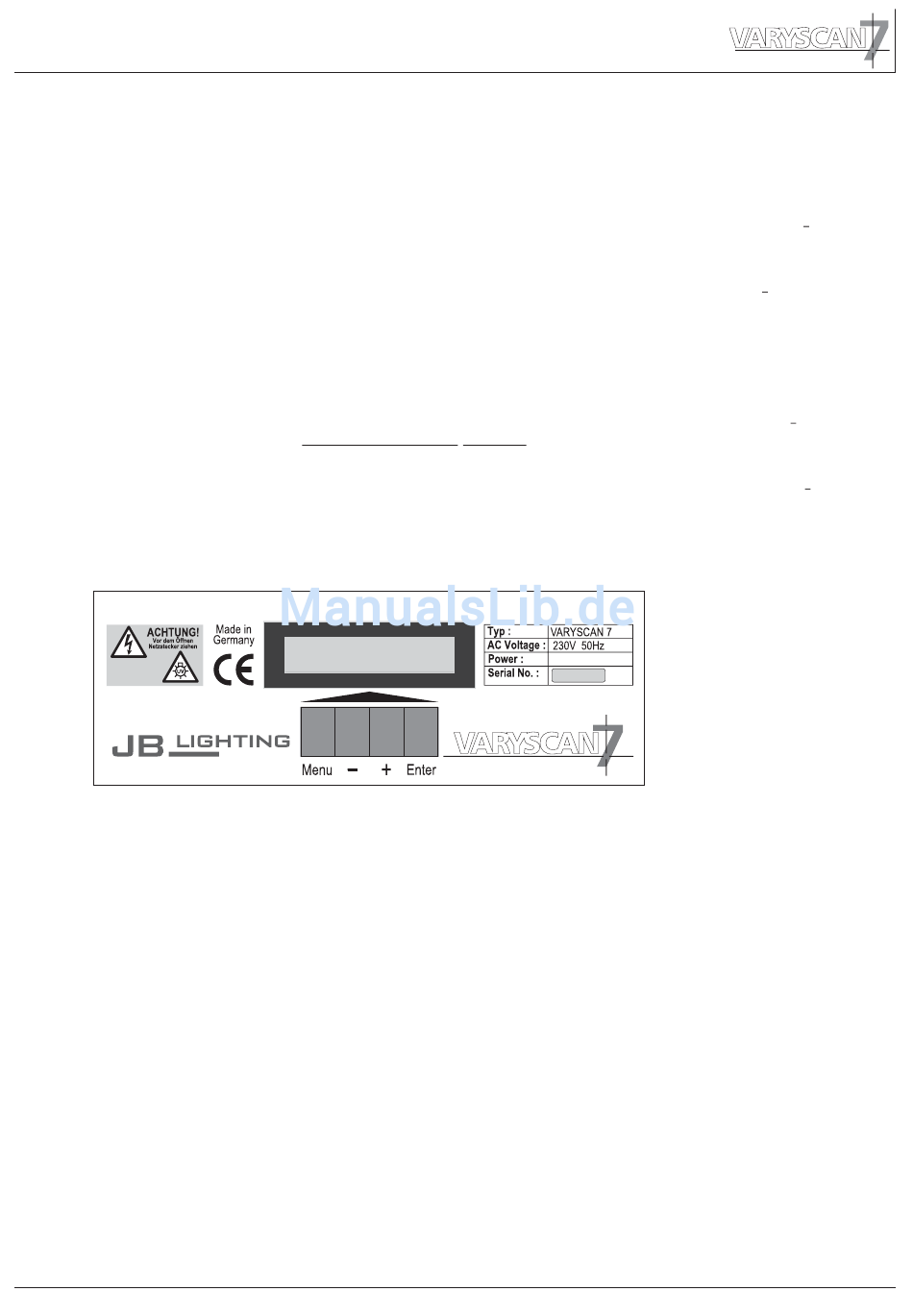

To adjust the personal setting of the VS7 use keys located on the control panel. Functions
see menu on the following page. To enter the menu press "Menu" key one time. Use keys
"-" and "+" to move within the menu. Use key "Enter" to select the function and to recall the
next menu section. To escape press key "Menu".
Special functions are assigned to the display lighting:
During reset the display is not illuminated. Slow flashing of the display illumination means
no DMX signal is connected. Fast flashing of the display illumination showing
means a failure was reported and stored in the ERROR LIST (To clear - see menu
navigation on page 8).
Fast flashing of the display illumination showing an error message means an current
failure is reported, e. g.
department. If the Vs7 is connected with a DMX-signal the display illumination shut off
after 30 seconds.
(Electrical shock 5000V)
*PAN TIMEOUT - please contact your dealer or our service
1700VA
