Intended Use

The device is intended exclusively for power supply, as
alternative to battery operation, of Bosch industrial
battery-operated drivers of the Exact series, the
AngleExact series, and the BT-Exact series.
Operating and Storage Environment
The device is suitable exclusively for operation at en-
closed work sites. You can mount it permanently or
place it on a flat, nonflammable work surface. For trou-
ble-free operation of the device, the allowed ambient
temperature should lie between –5 °C and +40 °C
(23 °F and 104 °F) at an allowed relative humidity of
between 20 and 95 %, free of dew.

Wall Mounting

The constant voltage regulator has an insulated carry-
ing handle and offers the possibility of wall mounting.
For wall mounting, screw the wall mount 11 tightly to
the wall. In doing so, take note of the weight of the de-
vice (see Product Specifications).
3 609 929 A13 • (05.05) T

Product Specifications

Constant voltage regulator
Article number 0 602 490 ...
Input voltage
Input current
Input power
Input frequency
Output voltage
Output current
Storage temperature range
Operating temperature
range
Relative humidity
Voltage adapter
Weight in accordance with
EPTA-Procedure 01/2003
Class of protection
Protection class of the housing
4 MOUNTING
15
11

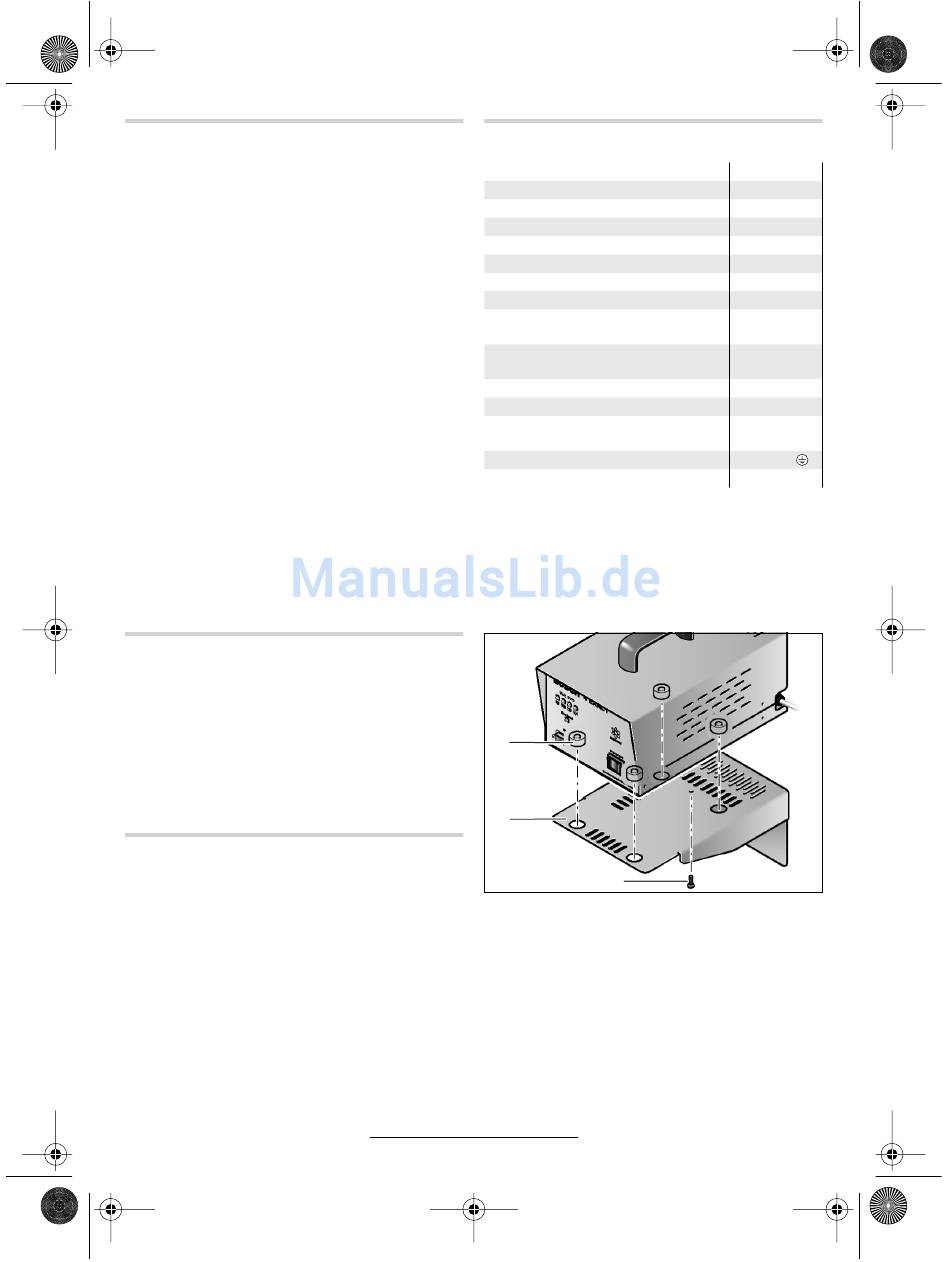

Place the 4Exact with its four rubber feet 15 exactly
into the recesses of the wall mount. Screw the 4Exact
with the screws 16 tightly to the wall mount.
During wall mounting, take care that the ventila-
tion slits of the 4Exact are not covered up.
English–5
4Exact
... 507
V
A
W
Hz 50/60
V 9.6 to 14.4
A arithm.
°C –20 to +70
°F –4 to 158
°C –5 to +40
°F 23 to 104
% 20 to 95
V 9.6 to 14.4
kg
lbs
16
230
2.2
450
30
9.8
21.6
/I
IP 20
