Connecting-up
±10 V ±20 mA
4-2
X481
47
D
A
48
D
A
49
50
+
D
A
-
51
52
D
A
53
D
A
54

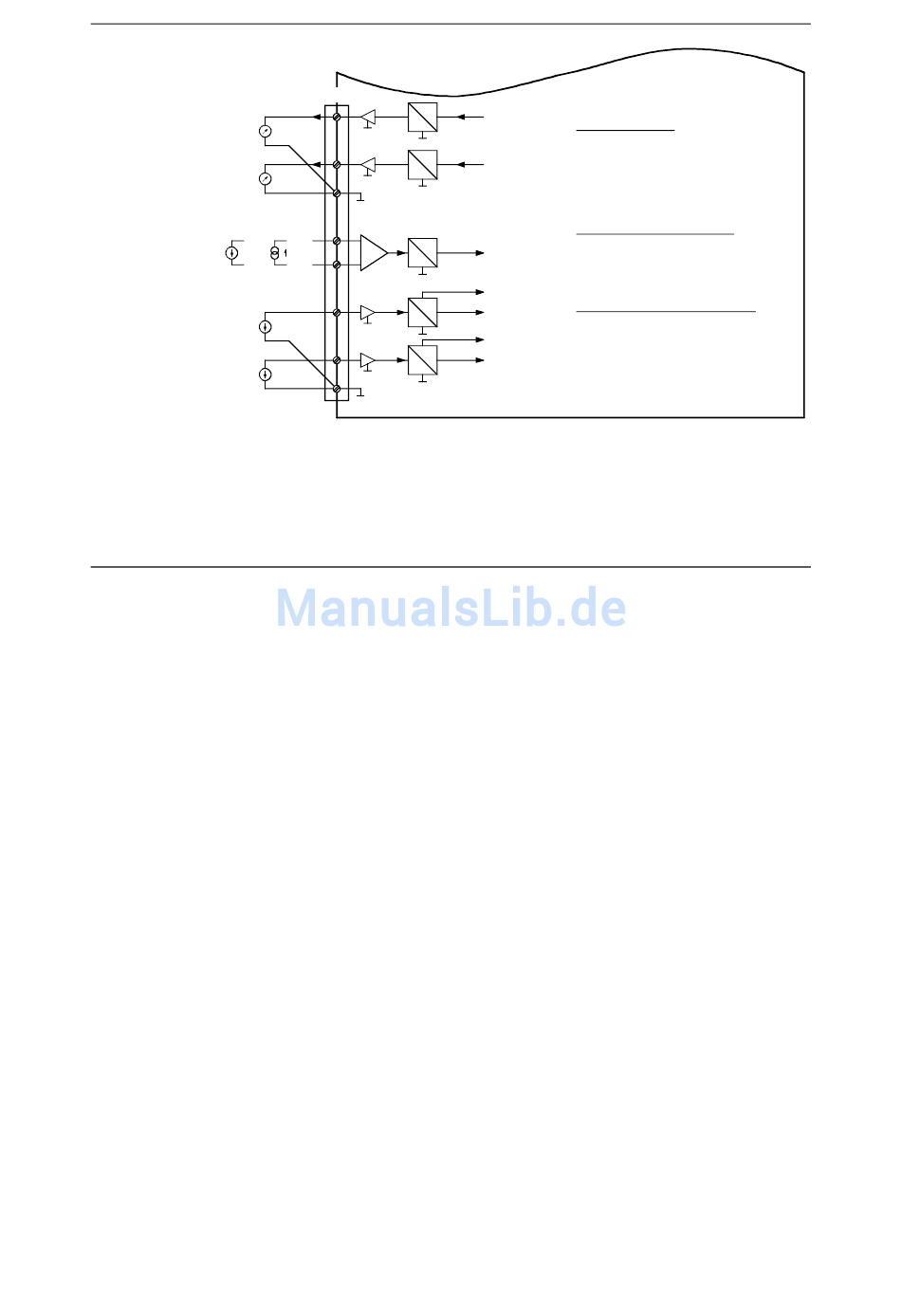

Fig. 4-2 X481 connection overview
2 analog outputs
11 bit + sign
± 10 V / 5 mA
1 analog input (differential)
13 bit + sign
± 10 V / 40 k Ω (voltage)
± 20 mA / 250 Ω (current)
2 analog inputs (single-ended)
13 bit + sign
+/- 10 V / 40 k Ω
Can also be used as digital inputs
Switching threshold 8 V
