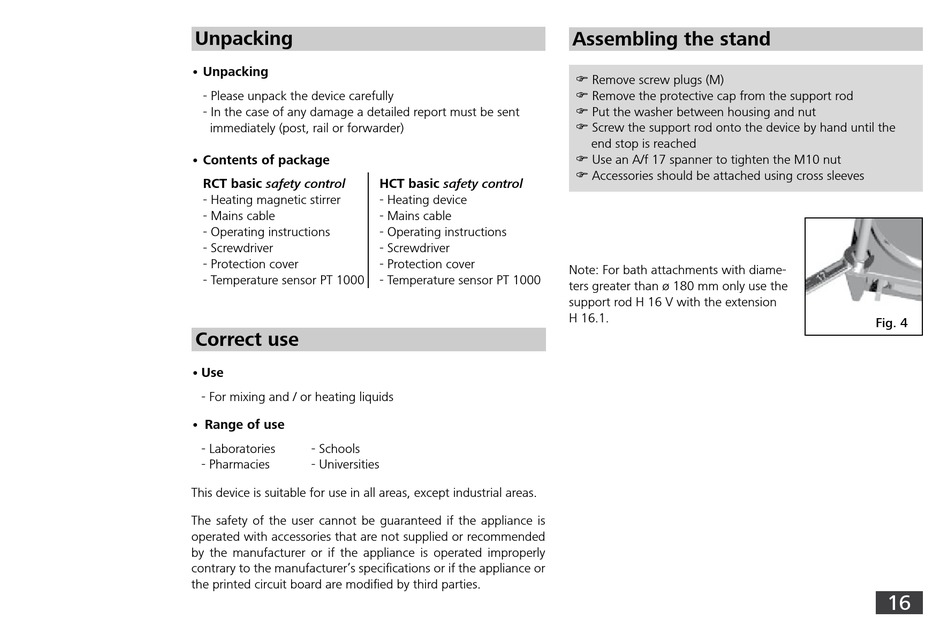

Unpacking; Correct Use; Assembling The Stand - IKA RCT basic safety control Betriebsanleitung

Unpacking

• Unpacking
- Please unpack the device carefully
- In the case of any damage a detailed report must be sent
immediately (post, rail or forwarder)
• Contents of package
RCT basic safety control
- Heating magnetic stirrer
- Mains cable
- Operating instructions
- Screwdriver
- Protection cover
- Temperature sensor PT 1000

Correct use

• Use
- For mixing and / or heating liquids
• Range of use
- Laboratories - Schools
- Pharmacies - Universities
This device is suitable for use in all areas, except industrial areas.
The safety of the user cannot be guaranteed if the appliance is
operated with accessories that are not supplied or recommended
by the manufacturer or if the appliance is operated improperly
contrary to the manufacturer's specifications or if the appliance or
the printed circuit board are modified by third parties.
HCT basic safety control
- Heating device
- Mains cable
- Operating instructions
- Screwdriver
- Protection cover
- Temperature sensor PT 1000

Assembling the stand

F Remove screw plugs (M)
F Remove the protective cap from the support rod
F Put the washer between housing and nut
F Screw the support rod onto the device by hand until the
end stop is reached
F Use an A/f 17 spanner to tighten the M10 nut
F Accessories should be attached using cross sleeves
Note: For bath attachments with diame-
ters greater than ø 180 mm only use the
support rod H 16 V with the extension
H 16.1.
Fig. 4
16
