DESCRIPTION OF THE DEVICE

Features

The perfect protection
• Wheather-proof housing for Moving-Heads, scanners, lighting effects etc.
• The device which is to be protected is easily placed in the ODD or installed via the mounting bracket
• Use either standing on the feet or installed in the truss via Omega Clamps
• Overhead installation via mounting bracket and air tubes
• Self-inflatable protection dome
• Invisible because transparent
• Splash-proof construction for outdoor use
• With integrated pressure sensor for automatic cutoff in case of dome deflation

INSTALLATION

This device is constructed for a standing or hanging installation.

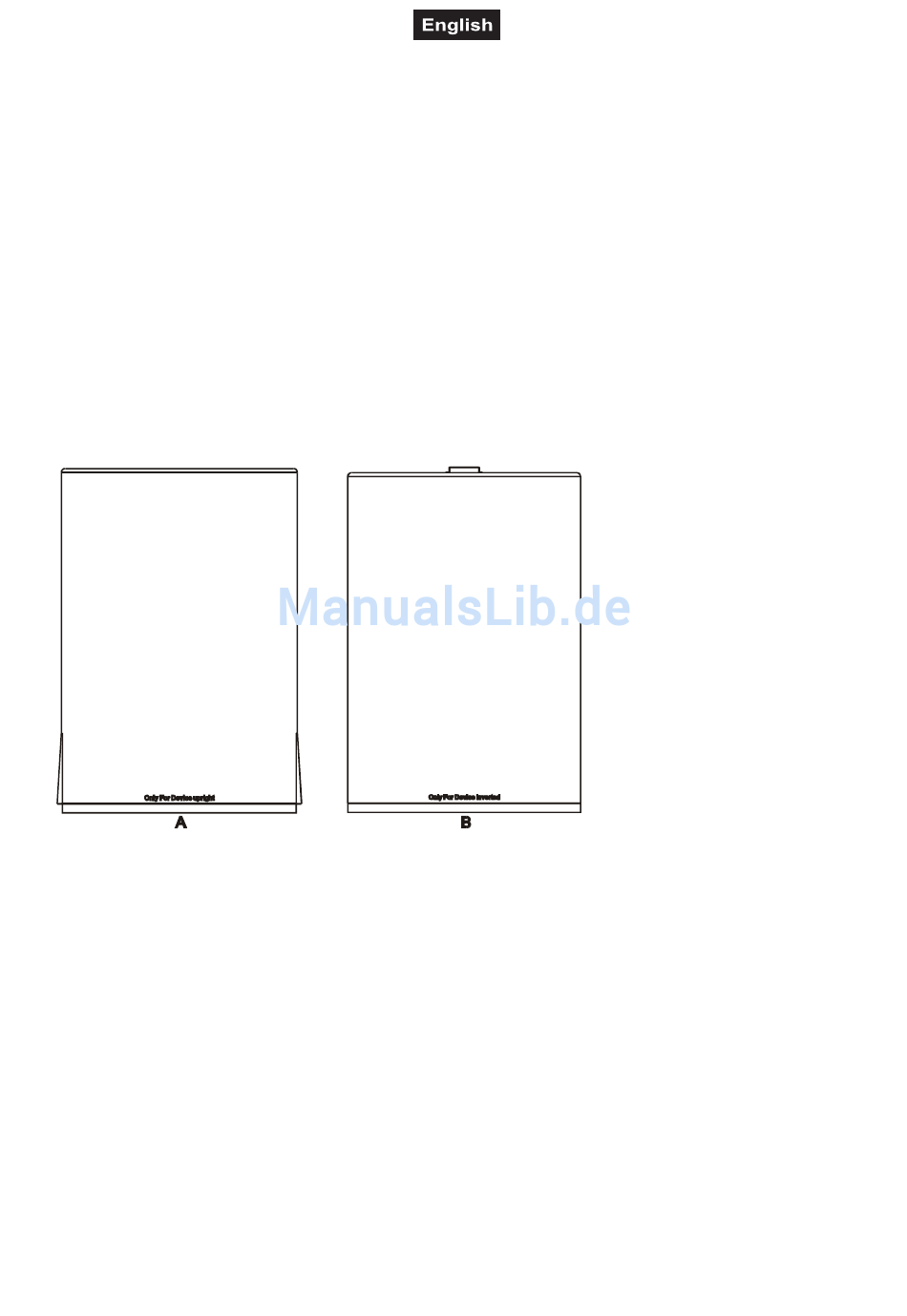

The delivery includes two protection covers, one for standing installation (A) and one for hanging installation
(B).
Standing installation:
The device must only be installed absolutely planar at a vibration-free, oscilation-free and fire-resistant
location. Make sure that the device is installed absolutely planar by using a water-level.
Install the device at the desired installation spot.
Put the Moving-Head on the base of the ODD Outdoor Dome and carry out the connections.
Unfold the protection cover and fix it at the velcro.
Connect the ODD Outdoor Dome with the mains.
Please note: as the Moving-Heads etc. are of considerable value, you may want to protect the ODD
Outdoor Dome and the installed device of robbery by taking suitable action.
