The operator has to make sure that safety-relating and machine-technical installations are approved by an
expert after every four year in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are approved by a
skilled person once a year.
Before lifting or lowering the telescopic tubes, you must always block a safety area around the stand. This
safety area must have a diameter of 1.5 times the maximum height.
IMPORTANT! Overhead rigging requires extensive experience, including (but not limited to) calculating
working load limits, installation material being used, and periodic safety inspection of all installation material
and the loads. If you lack these qualifications, do not attempt the installation yourself, but instead use a
professional structural rigger. Improper installation can result in bodily injury and/or damage to property.
The installation must always be secured with an appropriate secondary safety element (e.g. steel rope). This
secondary safety attachment must be constructed in a way that no part of the installation can fall down if the
main attachment fails. You must only use safety bonds complying with DIN 56927, quick links complying with
DIN 56927, shackles complying with DIN EN 1677-1 and BGV C1 carbines. The safety bonds, quick links,
shackles and the carbines must be sufficiently dimensioned and used correctly in accordance with the latest
industrial safety regulations (e. g. BGV C1, BGI 810-3).
Before taking into operation for the first time, the installation has to be approved by an expert!

5.3 Aligning the spots

6. SETUP

1. Connect the connection plug of the foot pedal to the jack FOOT PEDAL on the light set.
2. Connect the device to the mains with the power plug (230 V AC, 50 Hz ~). Thus the light set is powered
on. The occupation of the connection cables is as follows:
Cable Pin
Brown Live
Blue Neutral
Yellow/Green Earth
Attention! The earth has to be connected! If the device will be directly connected with the local power
supply network, a disconnection switch with a minimum opening of 3 mm at every pole has to be
included in the permanent electrical installation. The device must only be connected with an electric
installation carried out in compliance with the IEC standards. The electric installation must be equipped
with a Residual Current Device (RCD) with a maximum fault current of 30 mA.
3. To switch off the unit, disconnect the power plug.
4. Do not connect the light set to the mains voltage via a dimmer. For a more convenient operation,
connect the light set to a mains outlet which is switchable.
DANGER TO LIFE!

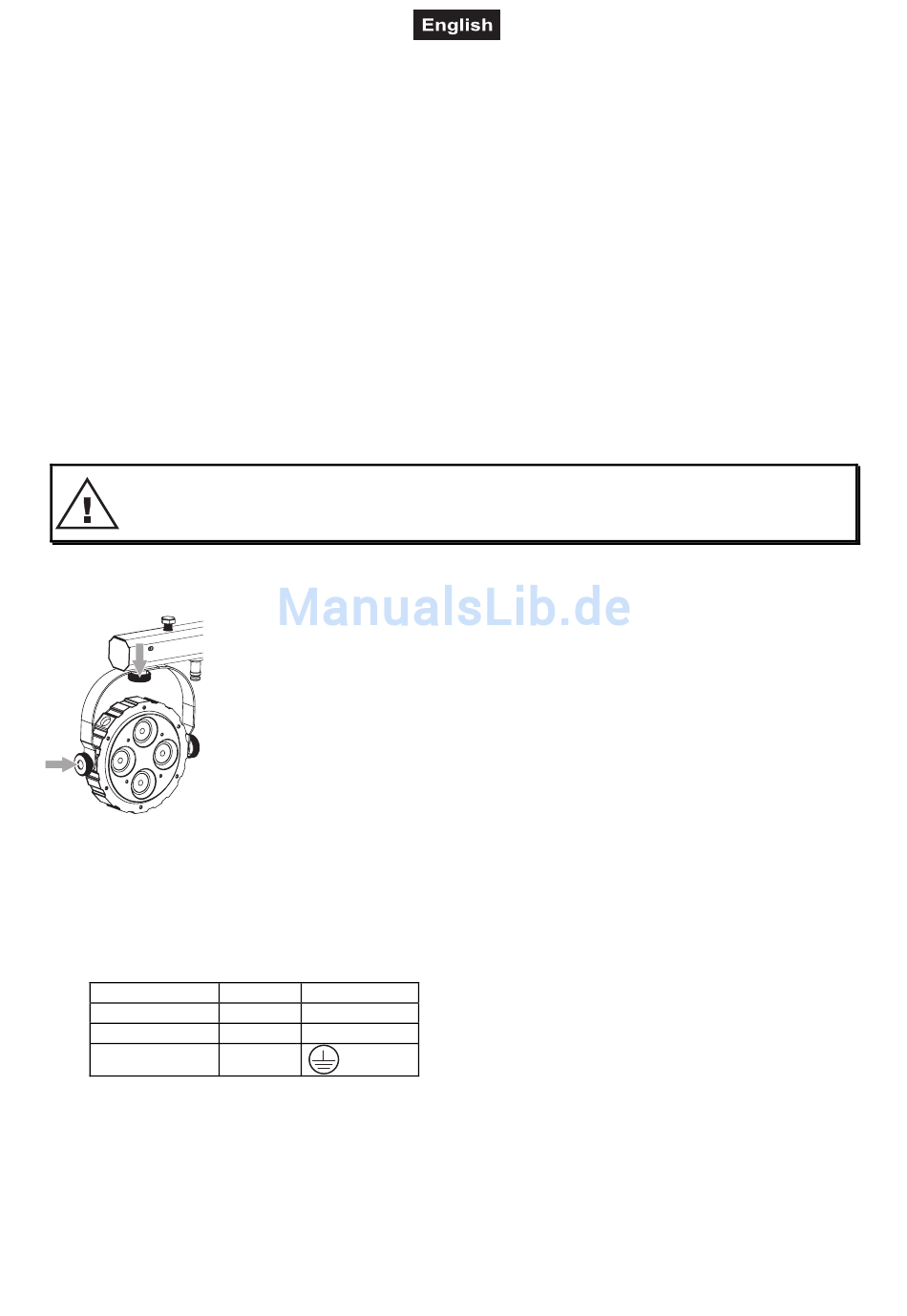

To align the spots, release the fixation screws. Adjust the desired inclination of the
spots and then fasten the screws again.
International
L
N
