1. Transmitter aerial
2. Carrying handle
3. Rotary encoder "VRA"
4. Toggle switch "SWA"
5. Toggle switch "SWC"
6. Trim button for elevator/nod function (in mode II)*
7. Control stick for elevator/nod and aileron/roll function (in mode II)*
8. Trim button for aileron/roll function (in mode II)*
9. Charging jack
10. On/off switch
11. Button "OK"
12. Button "CANCEL"
13. LC display
14. Scroll wheel "ENTER", "MENU", "DOWN" and "UP"
15. Trim button for rudder/tail function (in mode II)*
16. Control stick for rudder/tail and throttle/pitch function (in mode II)*
17. Trim button for throttle/pitch function (in mode II)*
18. Toggle switch "SWD"
19. Toggle switch "SWB"
20. Rotary encoder "VRB"
21. Eyelet for shoulder belt
* Further information for mode setting can be found in the system setting menu in the menu item "Sticks mode".

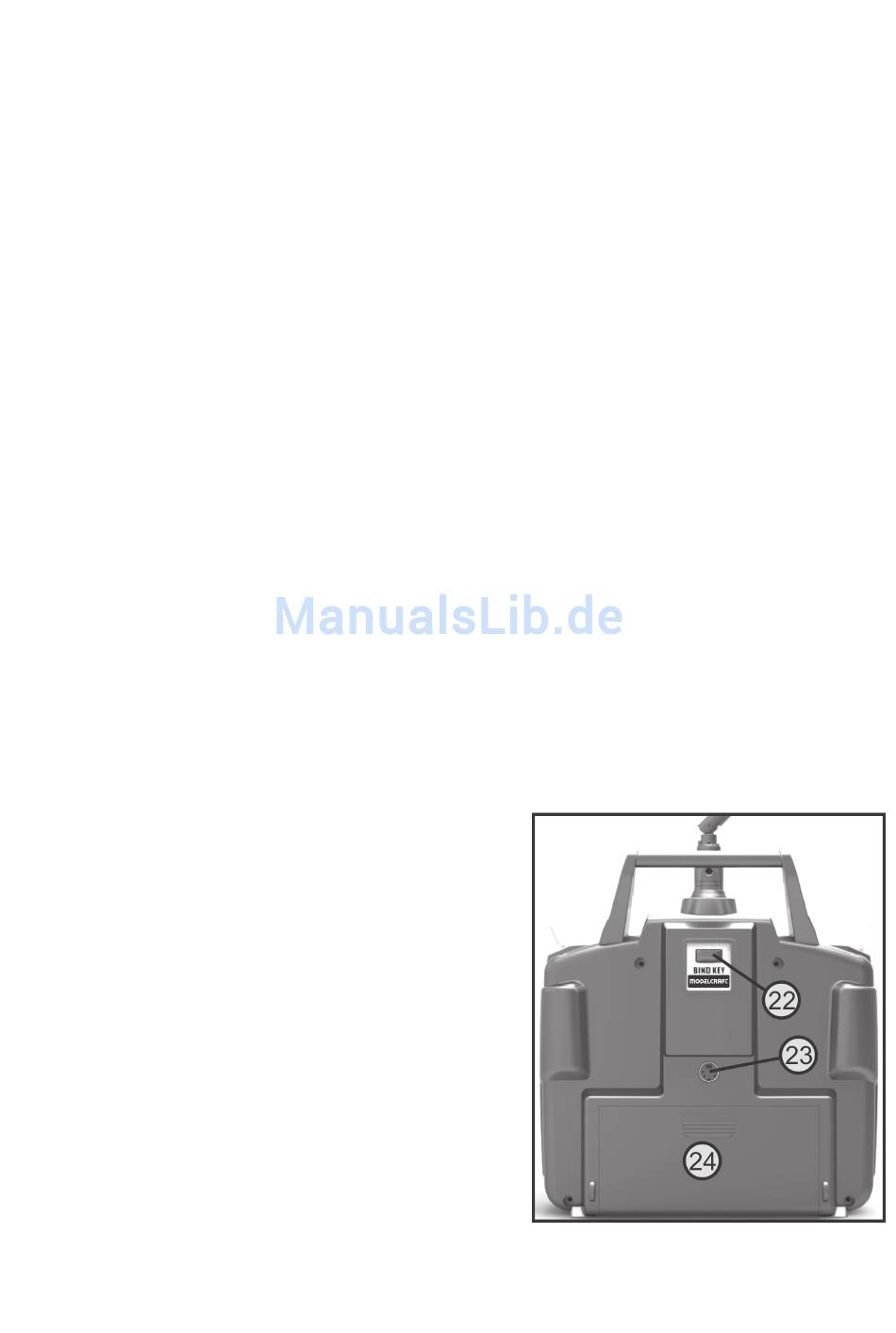

Rear:
22. Binding button
23. Trainer/student socket
24. Battery compartment lid
Figure 2
