Lenze EVS9323 Montageanleitung Seite 113

EVS9330

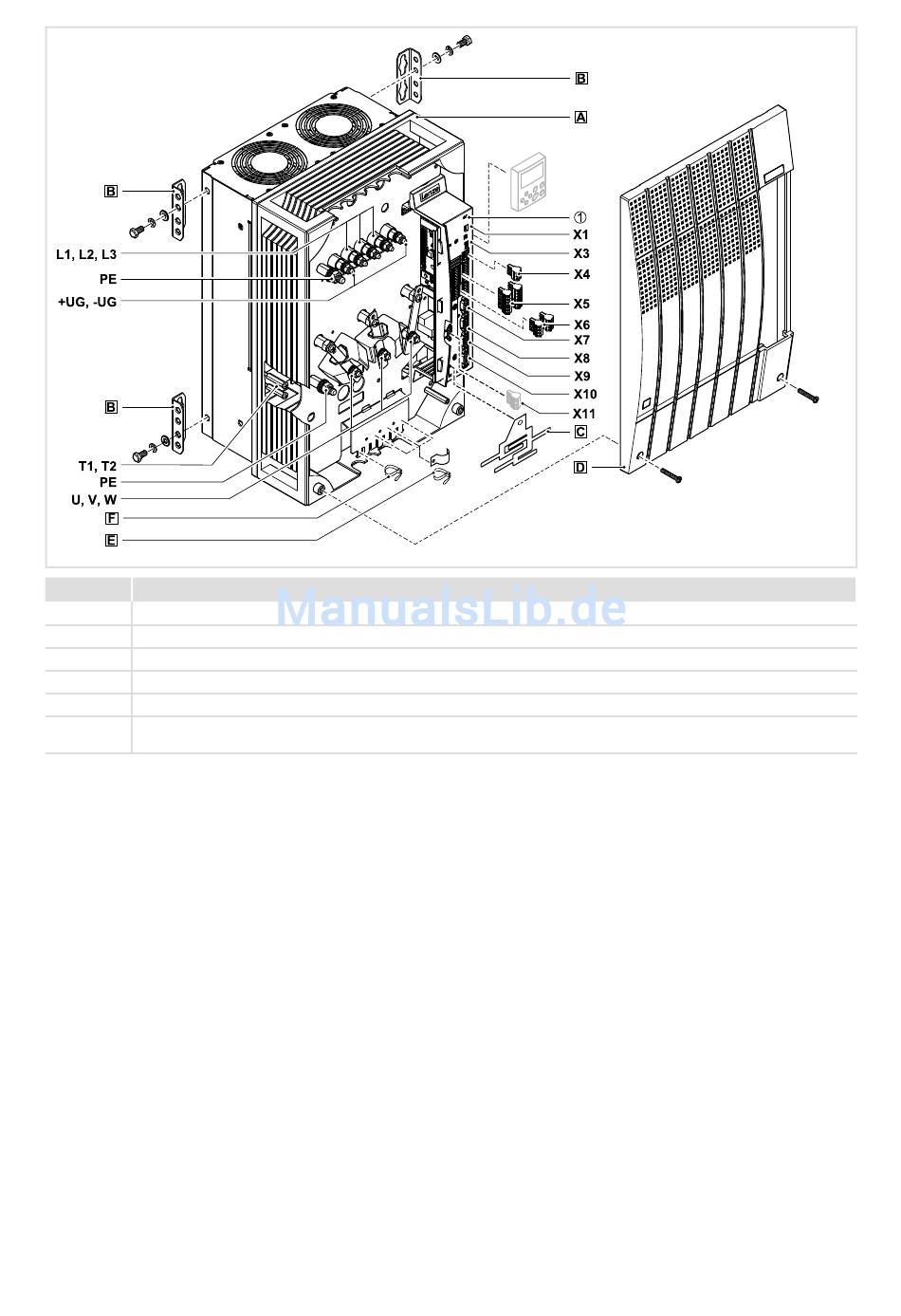

Position Description
0
Controller
1
Fixing bracket for standard mounting
2
EMC shield sheet with fixing screws for shielded control cables
3
Cover with fixing screws
4
Shield clamp and strain relief for the motor cable
5
Strain relief for the PE motor cable and the feed cable for the motor temperature monitoring with PTC thermistor
or thermal contact (NC contact)
