Technical Data - Cleanmaxx Z 04851 - 7001-INT-2 RoboMop Softbase Gebrauchsanleitung

A

Technical Data

Model number
Device:
Adapter:
Adapter voltage supply:
Battery:
Protection class:
Charging time:
Max. mop area:

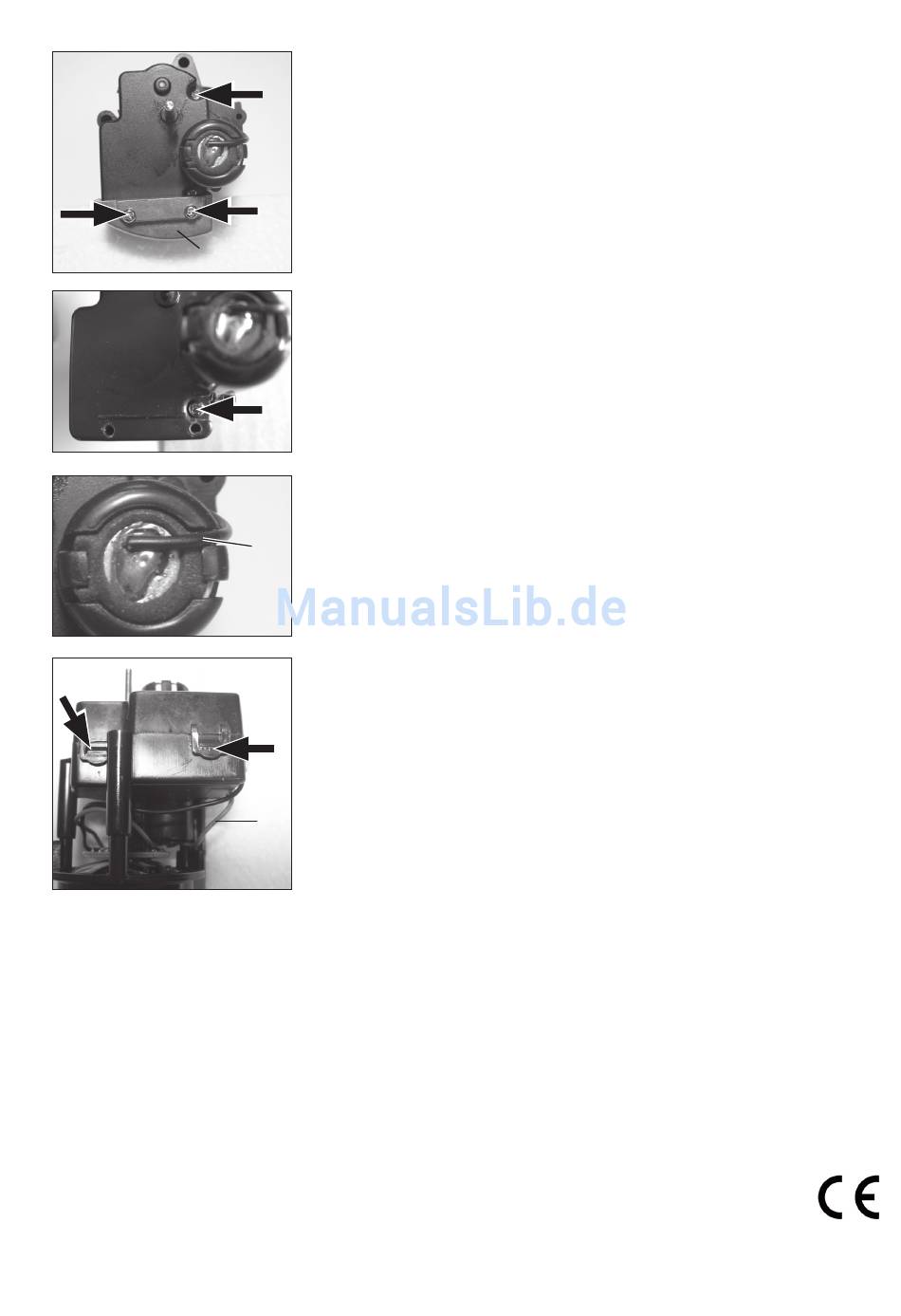

4. Turn the electronic unit over and then also undo the 3 screws
on the bottom using the screwdriver (see illustration).
5. Remove the silver-coloured part of the housing (A).
6. Unscrew the screw underneath it using the screwdriver (see
illustration).
7. Sever the black cable which is attached to the battery (B) us-
ing a pair of pliers or rip it off the solder joint.
B
8. Open the two locking lugs (see illustration) and pull the two
parts of the housing apart using some force.
9. You should also sever the red cable which is attached to the
other side of the battery (C) using a pair of pliers or rip it off
the solder joint. Then pull the battery out of the housing. You
can now dispose of the battery separately.
C
7001-INT-2
TL-GS-1750450
230 V~ 50 Hz
1000 mAH
II
3-5 hours
60 m² per hour
19
