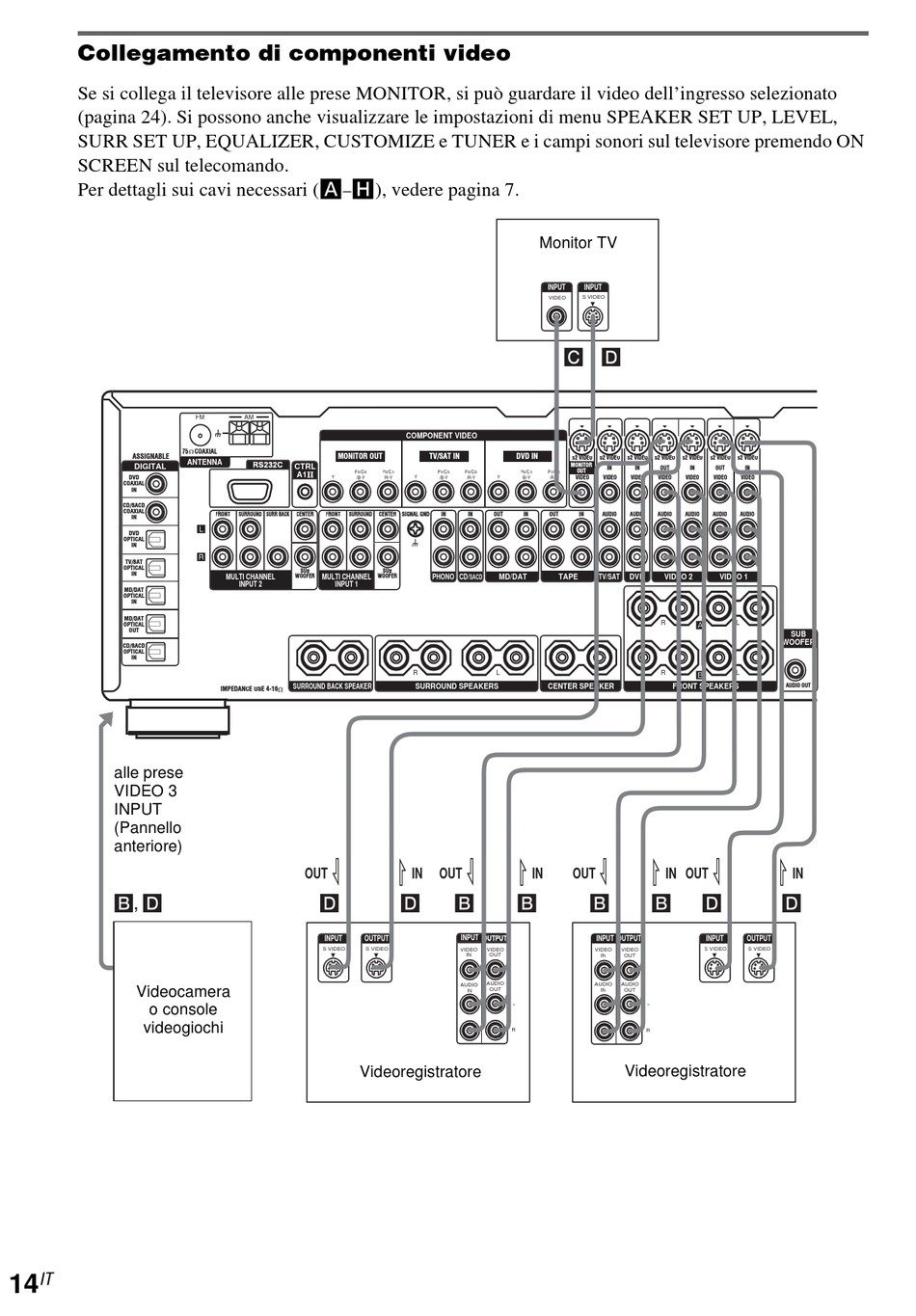

Collegamento di componenti video

Se si collega il televisore alle prese MONITOR, si può guardare il video dell'ingresso selezionato
(pagina 24). Si possono anche visualizzare le impostazioni di menu SPEAKER SET UP, LEVEL,
SURR SET UP, EQUALIZER, CUSTOMIZE e TUNER e i campi sonori sul televisore premendo ON
SCREEN sul telecomando.
Per dettagli sui cavi necessari (A
