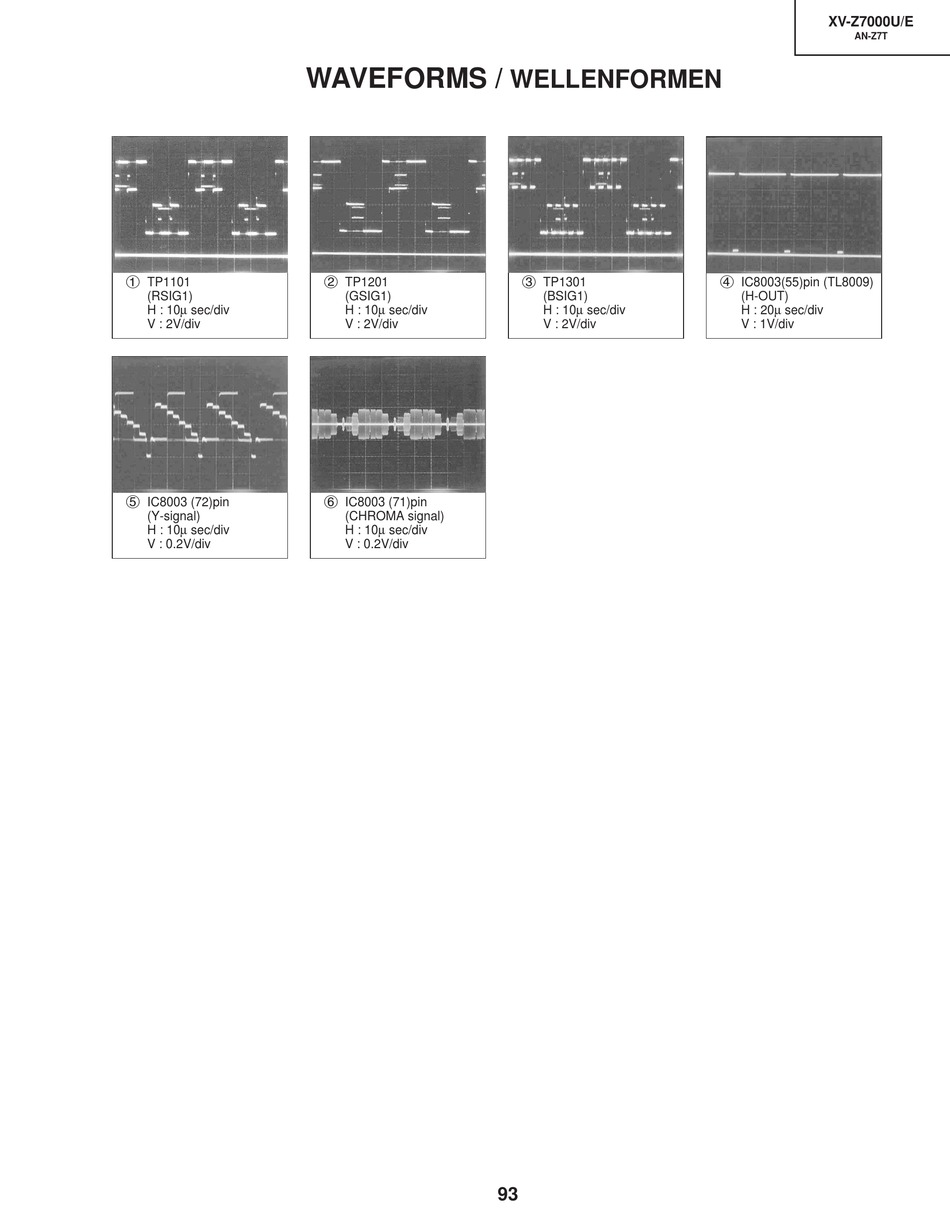

1 TP1101
(RSIG1)
H : 10µ sec/div
V : 2V/div
5 IC8003 (72)pin
(Y-signal)
H : 10µ sec/div
V : 0.2V/div
WAVEFORMS /
2 TP1201
(GSIG1)
H : 10µ sec/div
V : 2V/div
6 IC8003 (71)pin
(CHROMA signal)
H : 10µ sec/div
V : 0.2V/div

WELLENFORMEN

3 TP1301
(BSIG1)
H : 10µ sec/div
V : 2V/div
93
XV-Z7000U/E
AN-Z7T
4 IC8003(55)pin (TL8009)
(H-OUT)
H : 20µ sec/div
V : 1V/div
