4.1.3 Luftansaugöffnungen
Die Schalldämmkapsel für den Panda Marine Generator wird normalerwei-
se auf der Unterseite mit Bohrungen versehen, durch die Verbrennungs-
luft einströmen kann. Es ist jedoch nicht zu vermeiden, daß gerade durch
diese Bohrungen auch Luftschallwellen austreten.
Es kann sehr effektiv sein, diese Bohrungen zu überkleben und die
Verbrennungsluft durch eine eigene Schlauchleitung in das Schalldämm-
gehäuse zu leiten. Dieses ist fast immer besser, wenn der Generator auf
einer Fläche steht, die den Schall reflektieren kann.
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4
1 2 3 4
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4
1 2 3 4
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4
Die beste Lösung:
Ansaugluftzuführung von außen mit dem Spezial-"Ansauggeräusch-
dämpfer".
Die "Frischluft" kann von einem anderen Raum oder sogar von außen
herangeführt werden. Es ist dann aber sehr sinnvoll, noch einen zusätz-
lichen Ansaugschalldämpfer zu montieren.
1 2
1 2 1 2
1 2
1 2
1 2
1 2 1 2
1 2
1 2
1 2 1 2
1 2 1 2
1 2 1 2
1 2 1 2
1 2
1 2 1 2
1 2
1 2 1 2
1 2
1 2 1 2
1 2 1 2
1 2 1 2
1 2
1 2 1 2
1 2 1 2
1 2 1 2 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9
1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 1 2 3 4 5 6 7 8 9
Wo immer es möglich ist, sollte eine separate Frischluftzuführung mit
externem Ansaugluftschalldämpfer montiert werden. Dies kann das
Geräuschverhalten erheblich verbessern.
Der Ansauggeräuschschalldämpfer eliminiert Luftschwingungen, die
durch die pulsierende Ansaugung erzeugt werden. Diese Schwingungen
können sehr weitreichende Auswirkungen haben.
Seite 58
Kap. II
PANDA 6000ND PMS
Anschlußstutzen für externe Ansaugluftzuführung
Connection fitting for remote air intake supply
Schlauch
hose
Betriebsanleitung/Operation manual
Made by ICEMASTER GmbH Germany
4.1.3 Intake Air Ventilation Holes
Panda generators are normally equipped with a noise insulation housing.
In order to allow combustion air to reach the motor, holes through the
capsule underside are required. Unfortunately these holes also allow
pressure waves from machine vibration to escape the capsule.
An effective solution to reduce the sound vibrations even further is to
cover the holes in the capsule underside and to run an air inlet hose into
the soundproof casing. This is highly recommended if the generator is
positioned in an area where high resonance occurs.

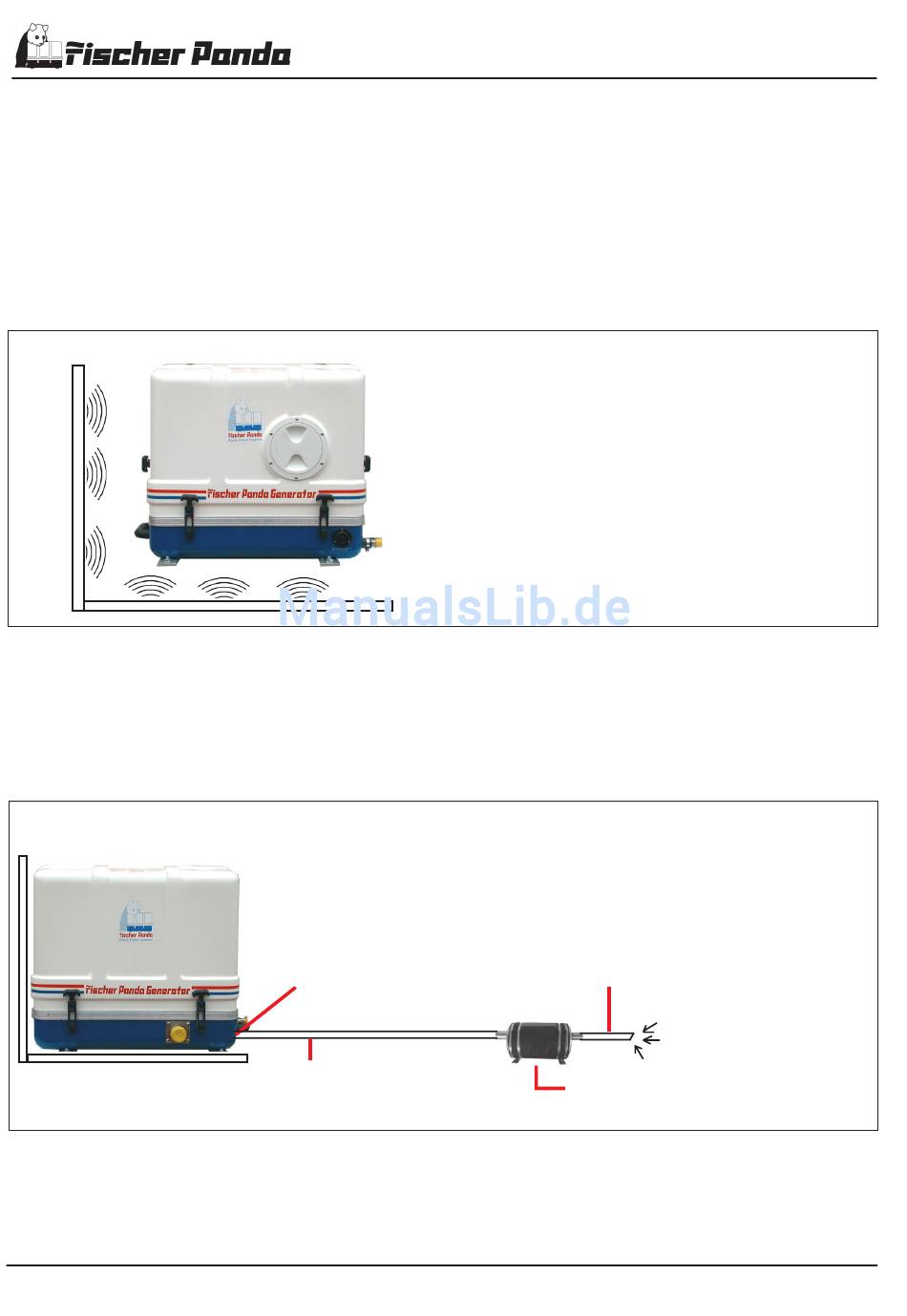

Durch "Reflektion" können Luftschallwellen verstärkt werden. Eine
externe Ansaugluftzuführung kann helfen.
Sound waves could be amplified by reflection. Covering the normal
intake holes and adding an external air inlet hose can help.
The Best Solution:
Cover the normal air intake holes and install an optional intake manifold
muffler system which can be ordered from your nearest Panda repre-
sentative or directly from ICEMASTER.
The intake air can be drawn from a neighbouring room or directly from
outside.
Endstück möglichst 0,5m lang
End extension 0.5m (20") long (if possible)
Ansaugluft-Schalldämpfer (von ICEMASTER)
Air Intake muffler (from ICEMASTER)
Wherever possible a separate fresh air ventilatior with a muffler should
be installed. This can reduce the noise considerably.
The air intake silencer (muffler) eliminates air vibrations, which are caused
by the pulsating suction of the diesel engine. Excessive vibrations could
have far-reaching consequences.
