4.3 Connecting Drawer Kick-Out Connector (Option)

(1) Turn OFF the power switch.

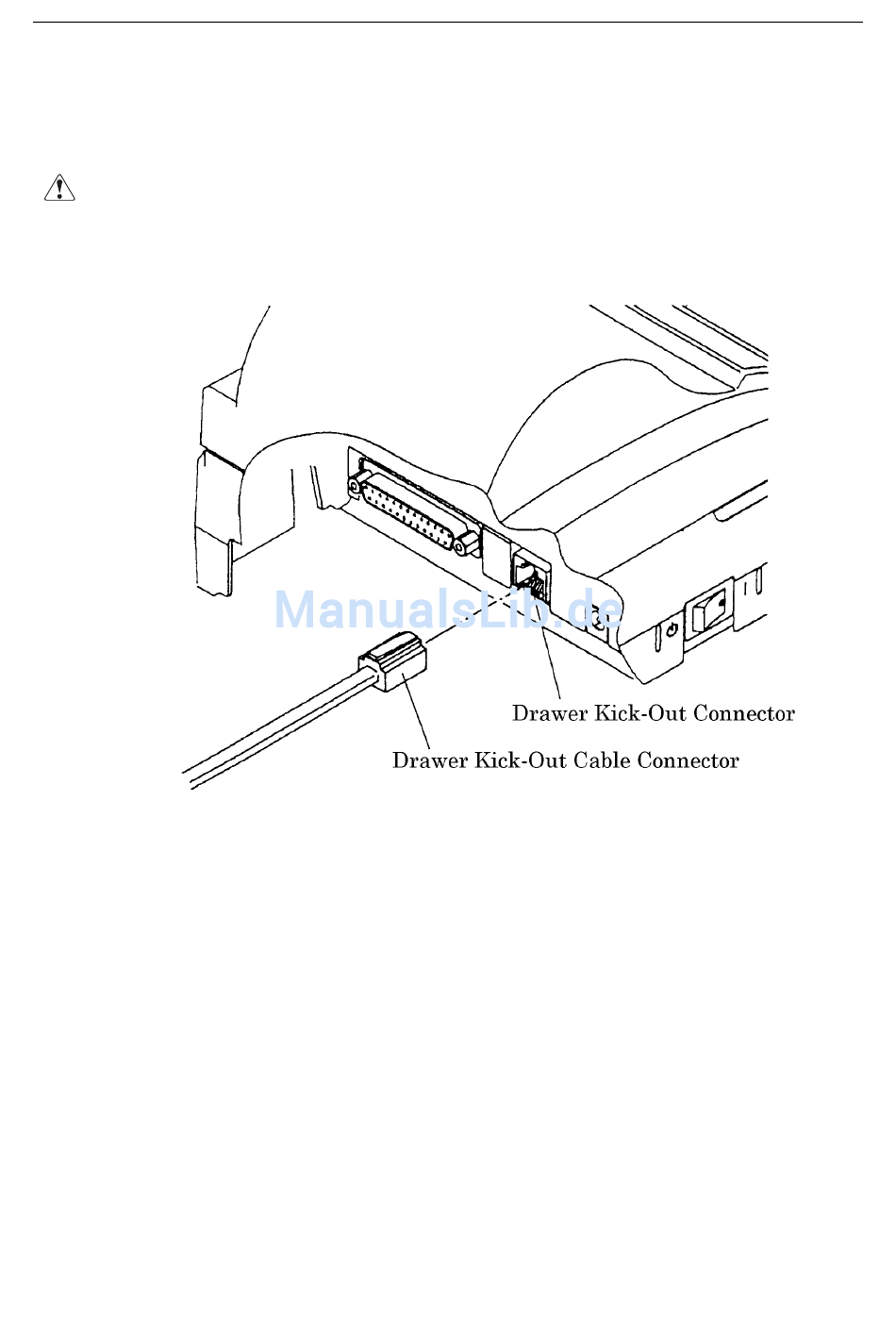

(2) Locate the up and down side of the drawer kick-out cable connector and put it into the drawer kick-out
connector on the rear side of the printer.
CAUTION :
• Do not connect the drawer (solenoid) other than specified in this manual.
(For example Telephone line and etceteras)
Rated solenoid: Voltage DC12±1V / Current 0.8A (Max)
