4.3 Connecting the Drawer Kick-Out Connector

1
Turn off the power of the printer.
2

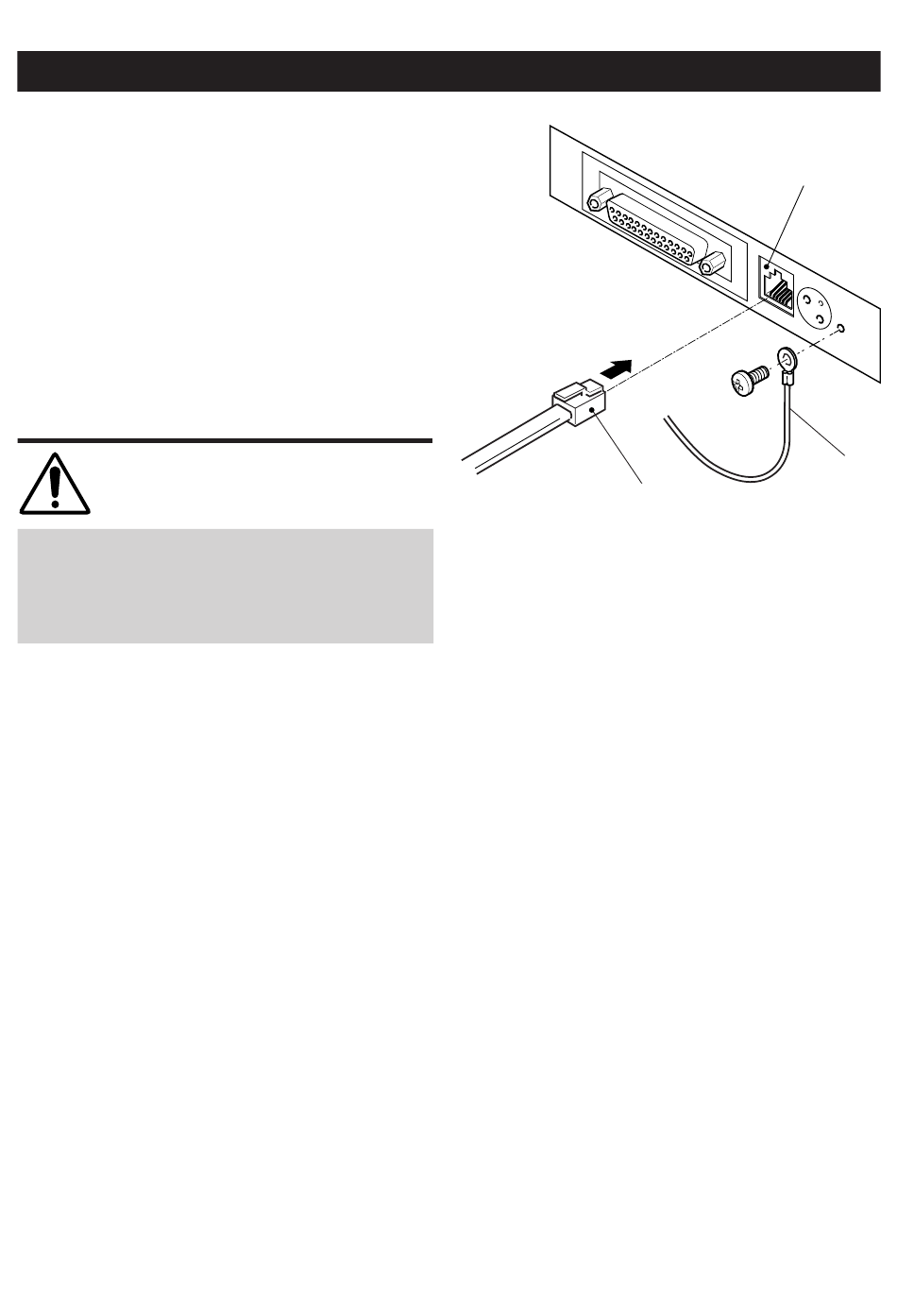

Orienting the Drawer Kick-Out Cable
Connector correctly, insert it into the
Drawer Kick-Out Connector on the
back of the printer.
3
Fasten the ground wire to the
ground connector on the printer
with a screw.
CAUTION:
• Do not connect any other device than
the specified drawer (Solenoid) to the
Drawer Kick-Out Connector.
(Do not connect a telephone line either.)
Drawer Kick-Out Cable Connector
— 12 —
Drawer Kick-Out Connector
Ground wire
