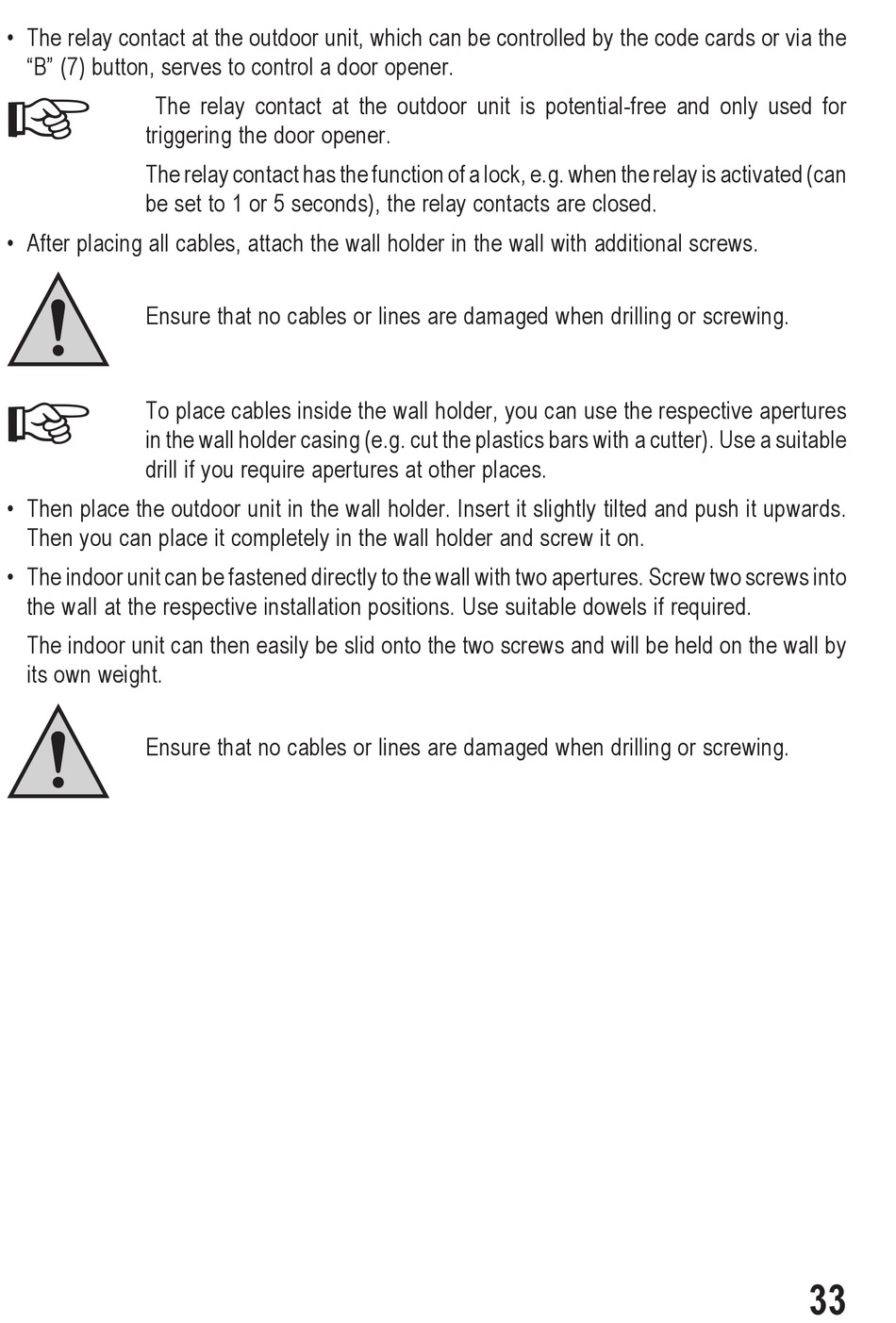

• The relay contact at the outdoor unit, which can be controlled by the code cards or via the
"B" (7) button, serves to control a door opener.

The relay contact at the outdoor unit is potential-free and only used for
triggering the door opener.
The relay contact has the function of a lock, e.g. when the relay is activated (can
be set to 1 or 5 seconds), the relay contacts are closed.
• After placing all cables, attach the wall holder in the wall with additional screws.
Ensure that no cables or lines are damaged when drilling or screwing.

To place cables inside the wall holder, you can use the respective apertures
in the wall holder casing (e.g. cut the plastics bars with a cutter). Use a suitable
drill if you require apertures at other places.
• Then place the outdoor unit in the wall holder. Insert it slightly tilted and push it upwards.
Then you can place it completely in the wall holder and screw it on.
• The indoor unit can be fastened directly to the wall with two apertures. Screw two screws into
the wall at the respective installation positions. Use suitable dowels if required.
The indoor unit can then easily be slid onto the two screws and will be held on the wall by
its own weight.
Ensure that no cables or lines are damaged when drilling or screwing.
