INSTALLATION OF THE INFLATION
TUBE(S)
Some configurations of the Balance Cushion with the
DRY FLOATATION® insert come with the inflation tube(s)
un-installed. If this is the case, you will have received the
following parts:
DRY FLOATATION® insert.
1 or 2 lengths of tube with one end terminated by an
inflation valve, the other end open. A second tube will
be included if the DRY FLOATATION® insert was a dual
chamber insert. A coupling connector has already been
installed in the truncated inflation tubes.

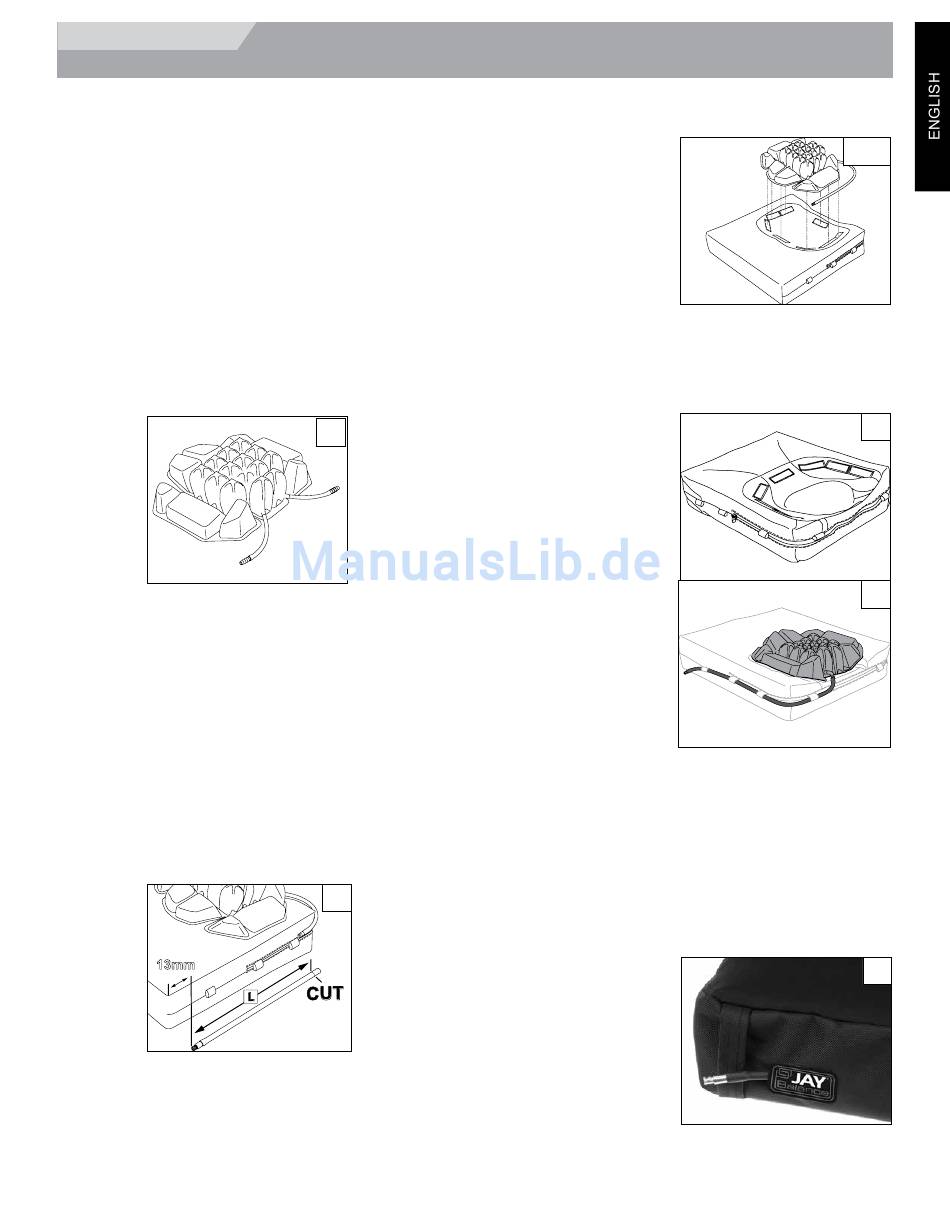

Fig. 1 shows a Dual chambered DRY FLOATATION® insert
ready to have the tube length attached by following the steps
below.
To install the inflation tube(s):
1.
Install the DRY FLOATATION® insert into the Balance
foam base with inner cover, as outlined in the instructions
below.
2.
Measure the length of inflation tube required for your
specific cushion size, (Fig. 2). Do this by threading the
tube through the loops on the inner cover with the front
edge. Measure about 1/2" (13.0 mm) from the front edge
of the cushion, and run it the distance (L) until the open
end matches up with the tube valve coming out of the
Insert.
3.
Cut the length of inflation tube as measured using
scissors.
4.
Insert the coupling connector into the cut length of each
inflation tube.
13mm
1
2
7
INSTALLATION OF DRY FLOATATION®
INSERT INTO CUSHION
1. With the outer cover
removed from the
Balance foam base,
install the DRY
FLOATATION®
insert into the Well.
Ensure that the DRY
FLOATATION® insert
is aligned with the well
and that the inflation
tubes are to the rear
of the cushion, (Fig. 3). Ensure that the Velcro attached
to the DRY FLOATATION® insert is aligned with the
matching Velcro adhered to the inner cover.
2. With the DRY FLOATATION® insert installed, the
inflation tube(s) need
to be secured to the
inner cover. Your
DRY FLOATATION®
insert may have one
or two inflation tubes
depending if it is a
single chamber insert or
a dual chamber insert.
Use the fabric loops
on either side of the
inner cover, to route the
inflation tube(s). (Fig. 4
and 5)
3. Thread the inflation
tube through the loops
starting at the
rear of the inner cover
and inserting the tube
through each loop,
working your way around to the front of the product.
4. If the DRY FLOATATION® insert is dual chambered, do
the same for the second inflation tube on the opposite
side.
5. Re-install the outer cover by sliding it over the base and
inner cover assembly. It is best to secure the inflation
valve in place with your hand as you slide the cover over
the assembly with your other hand.
6. Insert the valve through
the slot in the outer
cover behind the Jay
logo. The valve is
intended to protrude
through the slot and
be secured by the side
band on the Balance
cover. (Fig. 6)

INSTALLATION

3
4
5
6
BALANCE-ROHO Rev.4.0
