Inhaltsverzeichnis
1.
Beschreibung ·········································································· 3
2.
Paketinhalt ·············································································· 3
3.
Layout und Jumper Einstellungen ················································ 4
3.1 Layout ······································································································· 4
3.2 Jumper Einstellungen ··················································································· 5
4.
Hardware Installation ································································ 7
5.
Treiber Installation ···································································· 7
5.1 Windows 98/ ME/ 2000/ XP/ Vista/ 7/ 8 und Server 200x ····································· 8
5.2
Windows NT 4.0 ························································································· 8
6.
Verdrahtungsübersicht ······························································ 8
6.1 S1 und S2 Anschlussbelegung ······································································· 8
6.2
RS232 Verkabelung ····················································································· 8
6.3
RS485 (2 Draht) Verkabelung ········································································ 9
6.4
RS422 (4 Draht) Verkabelung ········································································ 9
7.
Technische Daten ···································································· 9
Index
1.
Description ············································································· 10
2.
Packet Content ······································································· 10
3.
Layout and Jumper setting ························································ 11
3.1 Layout ····································································································· 11
3.2 Jumper Setting·························································································· 11
4.
Hardware Installation ······························································· 14
5.
Driver Installation ···································································· 14
5.1 Windows 98/ ME/ 2000/ XP/ Vista/ 7/ 8 and Server 200x ··································· 15
5.2
Windows NT 4.0 ······················································································· 15
6.
Pin Assignments and Cable Wiring ·············································· 15
6.1 S1 and S2 Pin Assignments ········································································ 15
6.2
RS232 Wiring ··························································································· 15
6.3
RS-485 (2-Wire) Wiring ·············································································· 16
6.4
RS-422 (4-Wire) Wiring ·············································································· 16
7.
Technical Specification ····························································· 16
Seriell RS232/422/485 PCI Karte
2
Seriell RS232/422/485 PCI Board
5.1 Windows 98, ME, 2000, XP, Vista, 7, 8, Server 2003 / 2008
1. When the system is powered, Windows will invoke Windows' New Hardware Wiz-
ard. Click〝 Next 〞to continue, select〝 Install from a list or specific location
（ （ （ （ Advanced） ） ） ） 〞and click〝 Next 〞.
2. Select〝 Include this location in the search 〞then click〝 Browse 〞to specify
the driver's location for your OS (for example, XP is E:\IO\OXFORD\XP32) and
click〝 Next 〞to continue.
3. Click〝 Next 〞to continue, and click〝 Finish 〞to complete the installation.
4. To check the Installation, right click on〝My Computer〞and choose〝Manage〞.
Choose〝 Device Manager 〞and double click〝 Ports 〞.
5.2 Windows NT 4.0
To install the Windows NT driver, please go into WinNT4 sub-directory and run (double
click) Install_Serial.exe to install all Serial Port Drivers.
Windows NT 4.0 start the Setup Program and install the driver. Restart
Windows NT again.
6. Pin Assignments and Cable Wiring
6.1
S1 and S2 Pin RS232 connection
9 Pin D-SUB male connector (S1 and S2)
Pin Signal
Pin Signal
1
DCD
4
DTR
2
RXD
5
GND
3
TXD
6
DSR

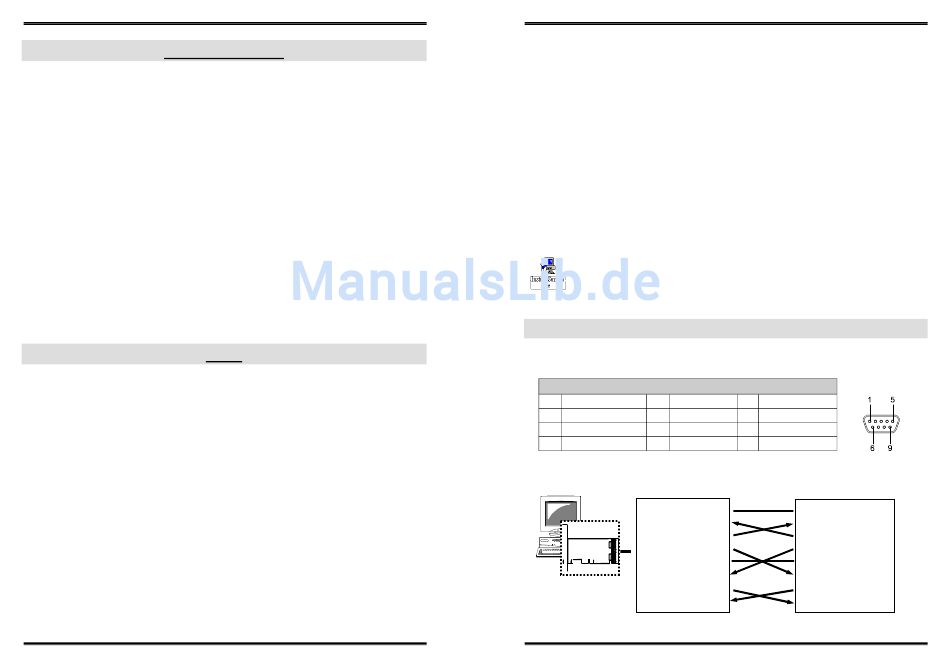

6.2
RS232 Cable Wiring
DCD
RXD
TXD
DTR
Ground
DSR
RTS
CTS
RS232 PCI card
English
DB 9M
Pin Signal
7
RTS
8
CTS
9
RI
Pin 1
Pin 1
DCD
Pin 2
Pin 2
RXD
Pin 3
Pin 3
TXD
Pin 4
Pin 4
DTR
Pin 5
Pin 5
Ground
Pin 6
Pin 6
DSR
Pin 7
Pin 7
RTS
Pin 8
Pin 8
CTS
RS232 Device
15
