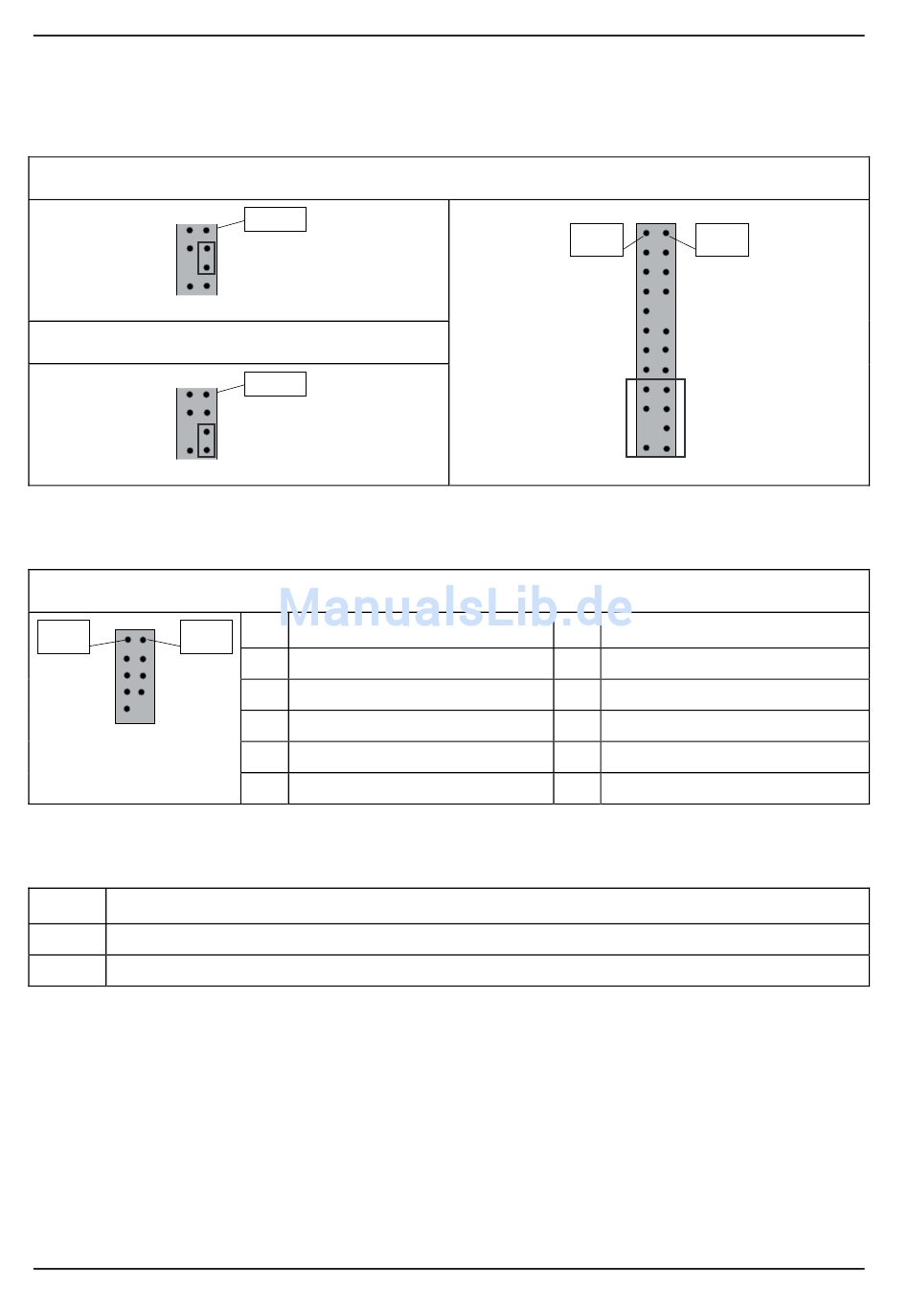

Configuration jumper on front panel pin connector

Standard jumper position (Recovery BIOS deactivated)
Recovery BIOS enabled

COM1 Ports

COM1 Port
Pin 1 Pin 2

TPM jumper

PIN Signal
1 RST_PCI_TPM_L
2 TPM_RESET_L
Per default the TPM jumper is stuffed. Removing the jumper will disable the TPM.
60
Pin 18
Pin 18
PIN Signal
1 DCD 1
3 SIN 1
5 SOUT 1
7 DTR 1
9 GND
Mainboard D3348
Pin 2
Pin 1
PIN Signal
2 DSR 1
4 RTS 1
6 CTS 1
8 RI 1
