Mainboard D3348

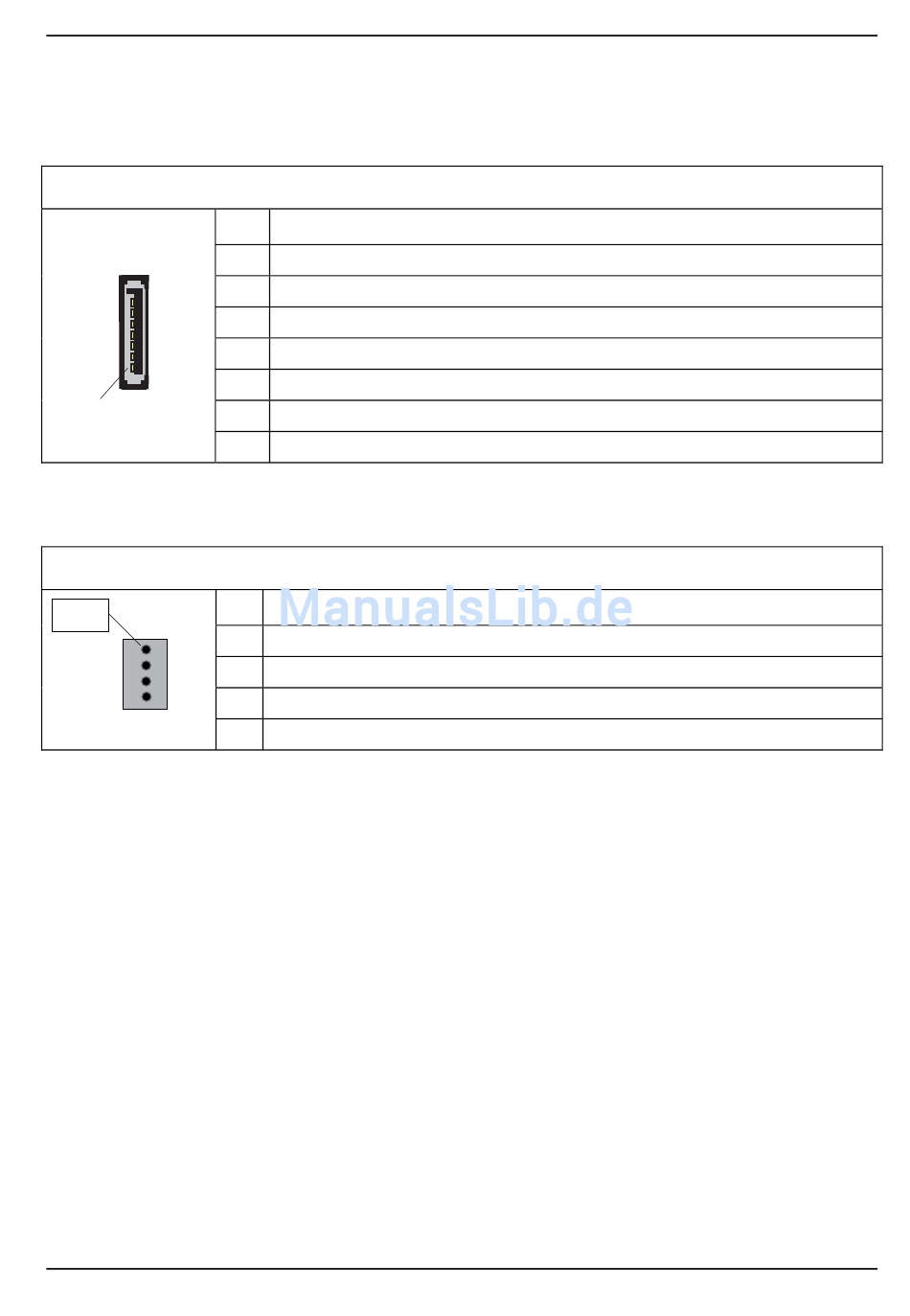

Ports for memory devices

Serial ATA port (internal, white)
1

System monitoring and management connectors

SCSI LED connector (Internal)
Pin 1
Fujitsu
POL Signal
1 GND
2 Transmit data negative
3 Receive data negative
4 GND
5 Transmit data positive
6 GND
7 Receive data positive
PIN Signal
1 Not connected
2 SCSI-ON LED (low asserted input)
3 SCSI-ON LED (low asserted input)
4 Not connected
English - 23
